Why Integrated Gear Shafts Are Replacing Traditional Assemblies
In high-end equipment such as CNC machines, robotics, and new energy drive systems, transmission performance directly determines machine stability and lifespan. Traditional gear and shaft assemblies often suffer from tolerance stack-up, poor concentricity, vibration, noise, and increased wear.
Integrated precision gear shafts eliminate these issues by machining the gear and shaft as a single unit, significantly improving transmission stability and reliability.

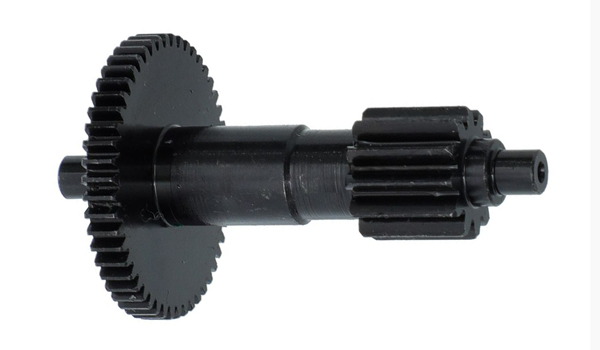

What Is a Precision Integrated Gear Shaft
A precision gear shaft is a one-piece component where the gear teeth and shaft are manufactured together. This design ensures superior concentricity, alignment accuracy, and structural strength compared to traditional assembled components.
Key Advantages of Integrated Gear Shafts
Higher Precision
Integrated design eliminates assembly gaps and tolerance accumulation, achieving micron-level accuracy and smooth transmission.
Stronger Structure
Without keyways or press-fit connections, the overall strength and load capacity are significantly improved.
Lower Noise and Vibration
Improved dynamic balance reduces vibration and noise, especially in high-speed applications.
Reduced Maintenance Cost
Fewer components reduce failure rates and extend service life.
Engineering Design Considerations
Material Selection
Common materials include alloy steel (20CrMnTi, 42CrMo), stainless steel, and custom alloys depending on load and application requirements.
Structural and Gear Design
Gear parameters such as module, pressure angle, and tooth profile are optimized using CAD and simulation tools to ensure durability and performance.
Lightweight Optimization
Weight reduction designs help reduce rotational inertia while maintaining sufficient strength.
Precision Manufacturing Process
Raw Material and Forging
Forged blanks improve internal structure and mechanical strength.
CNC Machining
High-precision CNC turning and milling are used to process shaft geometry.
Gear Cutting
Gear hobbing or shaping ensures accurate tooth profiles.
Heat Treatment
Carburizing, quenching, or induction hardening improve wear resistance and strength.
Precision Grinding
Grinding ensures final dimensional accuracy and surface quality.
Quality Control
Each gear shaft undergoes strict inspection including CMM measurement, gear testing, runout inspection, and hardness testing to ensure consistent quality and performance.
Applications
Precision gear shafts are widely used in:
- CNC machine tools
- Robotics and automation
- Automotive transmission systems
- Aerospace components
- New energy equipment
Why Choose Us as Your Gear Shaft Manufacturer
We specialize in CNC machining of precision shafts and gear components with full in-house manufacturing capabilities.
- Tolerance up to IT6–IT7
- Full process: CNC machining, gear cutting, heat treatment, and grinding
- Multiple material options available
- Support for prototyping and mass production
- Fast quotation and global delivery
Technical Parameter Reference
- Material: Alloy Steel / Stainless Steel
- Tolerance: IT6–IT7
- Surface Roughness: Ra 0.4–0.8 μm
- Heat Treatment: Carburizing / Quenching
- Size: Custom
- MOQ: 1 Piece
Get a Quote Now
Looking for a reliable precision gear shaft manufacturer?
We support custom drawings, OEM and ODM production, and fast prototyping.
Send us your drawings today to get a fast quotation and professional technical support.
