Description

Product Overview

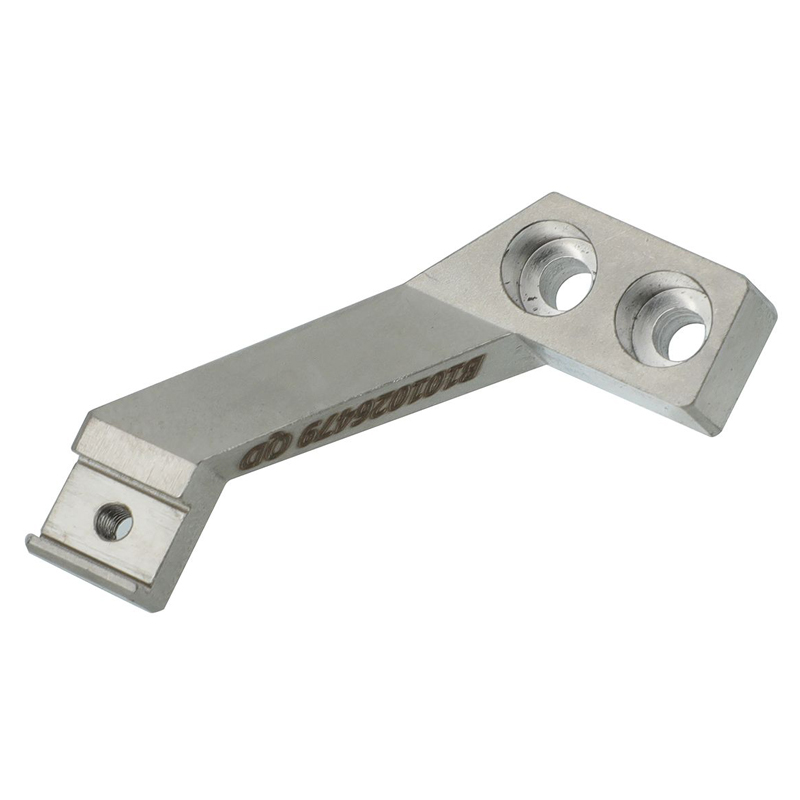

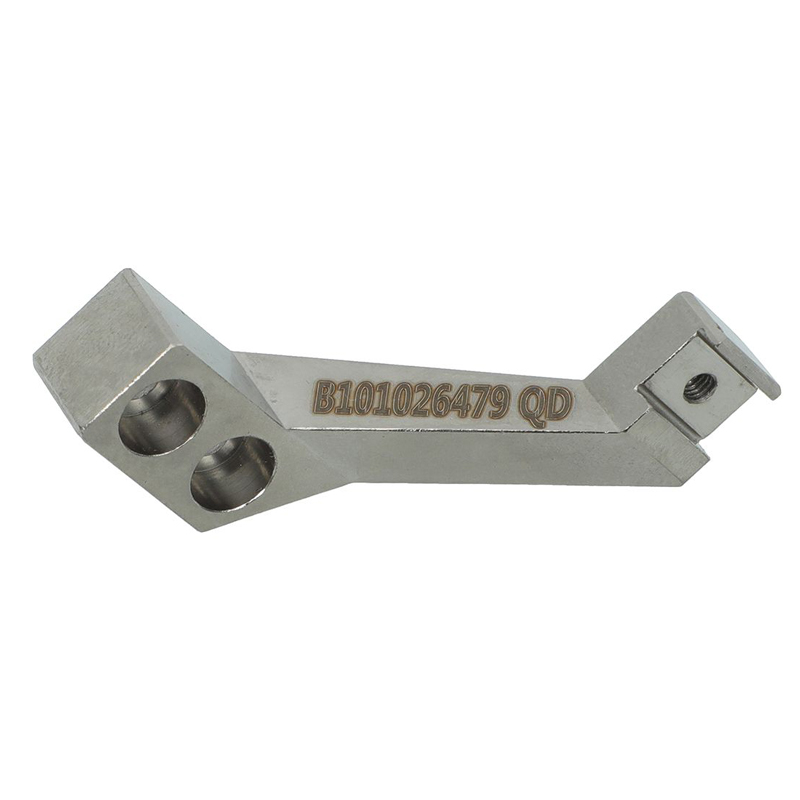

This Custom CNC Machined Offset Actuating Lever is a precision mechanical transmission component designed to transfer or control motion within automation equipment, mechanical linkages, and custom machinery.

Its offset configuration connects mechanical interfaces positioned at different locations or planes, while the machined mounting holes, threaded interface, and locating features provide secure attachment and repeatable positioning within the assembly.

The part can be manufactured from SKD11 tool steel, stainless steel, aluminum, or other engineering materials, depending on the required wear resistance, strength, weight, and operating conditions. XINQIDA manufactures custom actuating levers to customer drawings, 3D CAD models, or samples, supporting prototype, low-volume, and production requirements.

As part of our CNC machining services, we control critical dimensions and feature-to-feature relationships such as hole locations, mounting surfaces, slots, threads, and functional interfaces according to the engineering drawing.

Key Features

• Offset lever configuration for connecting components at different positions or planes
• Machined mounting holes for secure mechanical attachment
• Countersunk or stepped hole features for fastener seating and clearance
• Threaded interface for connection with mating mechanical components
• Locating features for alignment and repeatable assembly
• CNC-machined functional surfaces for controlled dimensional accuracy
• Custom material options including SKD11, aluminum, stainless steel, and other alloys
• Drawing-specific tolerances for critical mounting and transmission interfaces
• Suitable for prototype, small-batch, and production CNC machining

The combination of an offset body and multiple mechanical interfaces makes this component more than a simple flat lever or plate. Its primary role is to provide a controlled connection between components within a mechanical transmission or actuation mechanism.

Our CNC Milling Services deliver precise multi-plane machining for this offset actuating lever, maintaining tight positional tolerance for mounting holes, locating features and threaded interfaces.

CNC Machining Services & Manufacturing Parameters

The following parameters represent typical capabilities for custom CNC machining of actuating levers. Actual tolerances and finishing requirements are determined by the customer’s engineering drawing, material, geometry, heat treatment, and functional requirements.

CNC Machining Parameter	Typical Capability	Application to Offset Actuating Lever
CNC Process	3-axis / 4-axis / 5-axis CNC milling	Machining the offset body, mounting faces, holes, slots, and functional surfaces
Material Options	SKD11, stainless steel, aluminum, alloy steel, other engineering materials	Selected according to wear, strength, weight, and operating conditions
General Machining Tolerance	±0.01 mm typical	General dimensions and non-critical features
Precision Tolerance	Up to ±0.005 mm on selected features	Critical mounting, locating, and mating features when specified
Hole Tolerance	According to drawing and required fit	Mounting, locating, pin, shaft, or bushing interfaces
Threading	Metric, UNC, UNF, and custom thread specifications	Internal threaded connection points
Surface Finish	Typically Ra 0.8–3.2 μm as machined	Functional and mounting surfaces
Edge Treatment	Deburring and chamfering	Removal of sharp edges and improvement of assembly safety
Heat Treatment	Available for suitable tool steels and alloys	Increased hardness, wear resistance, or dimensional stability
Inspection	Calipers, micrometers, height gauges, optical inspection, CMM	Verification of dimensions, hole locations, and critical relationships
Production Volume	Prototypes, low volume, and production batches	Suitable for custom automation equipment and OEM production

Important: These are typical CNC machining capabilities rather than guaranteed tolerances for every part. Critical dimensions, fits, geometric tolerances, and surface requirements are manufactured according to the customer’s engineering drawings.

Applications

This offset actuating lever can be used as a mechanical transmission, linkage, or motion-actuation component in a wide range of custom equipment.

Typical applications include:

• Industrial automation equipment
• Custom assembly machines
• Mechanical linkage systems
• Motion control mechanisms
• Pick-and-place equipment
• Material handling machinery
• Feeding and indexing mechanisms
• Clamping and positioning mechanisms
• Special-purpose machinery
• OEM mechanical assemblies
• Custom transmission mechanisms

In automation equipment, an offset lever can be used where the actuator and driven component do not share the same mounting plane or centerline. The offset geometry allows the designer to maintain the required mechanical relationship while accommodating surrounding components and available installation space.

Material Analysis

SKD11 Tool Steel

SKD11 is a strong candidate when the actuating lever is exposed to repeated mechanical movement, contact, or wear.

For applications involving frequent actuation cycles, localized loading, or contact with pins, bushings, or other mechanical interfaces, the material needs to maintain dimensional stability and resist wear.

SKD11 can be heat treated to achieve substantially higher hardness than common aluminum alloys, making it suitable for applications where durability and wear resistance are more important than low weight.

Potential advantages include:

• High wear resistance
• High hardness potential after heat treatment
• Good dimensional stability
• Suitable for repeated mechanical operation
• Suitable for high-contact or high-cycle applications

6061-T6 Aluminum

Where weight reduction is more important than maximum wear resistance, 6061-T6 aluminum can be considered.

It provides:

• Low density
• Good machinability
• Good strength-to-weight ratio
• Suitable corrosion resistance
• Efficient CNC machining

For lightweight automation mechanisms, aluminum may be preferable when the lever does not experience severe wear or high contact loads.

Stainless Steel

Stainless steel can be considered where corrosion resistance, strength, and durability are important.

The final material should be selected according to the actual load, operating environment, cycle frequency, contact condition, and required service life.

CNC Machining Challenges

1. Maintaining Feature-to-Feature Accuracy

The mounting holes, threaded interface, locating features, and external offset profile do not function independently.

Their relative position can be more important than the tolerance of an individual feature.

For example, even when a hole diameter is within tolerance, an incorrect hole position can affect the assembly relationship between the lever and its mating component.

Our Manufacturing Approach

We establish machining datums from the engineering drawing and control critical features relative to those datums.

Where required, critical hole locations and functional surfaces can be verified using dimensional inspection or CMM measurement.

2. Machining the Offset Geometry

Unlike a flat plate, an offset actuating lever contains different machining planes and may require access from multiple directions.

The challenge is maintaining the relationship between the different mounting surfaces while avoiding unnecessary deformation or positioning errors during machining.

Our Manufacturing Approach

Depending on the part geometry, we select appropriate workholding, machining orientations, and multi-axis machining strategies to access the required surfaces while maintaining dimensional relationships.

3. Controlling Countersunk and Stepped Holes

Countersunk or stepped holes require more than simply controlling the through-hole diameter.

The following features may all affect assembly:

• Hole diameter
• Countersink diameter
• Countersink depth
• Hole position
• Hole axis
• Relationship to the mounting surface

An incorrect countersink depth, for example, can prevent the fastener head from seating correctly.

Our Manufacturing Approach

We manufacture critical hole features according to the specified diameter, depth, angle, fit, and positional requirements on the customer’s drawing.

4. Threaded Interface Alignment

The threaded interface may connect directly to another mechanical component, actuator, pin, or linkage.

Therefore, thread quality alone is not sufficient. The position and orientation of the thread relative to the other mounting features may also be critical.

Our Manufacturing Approach

We control the threaded feature relative to the established machining datums and inspect critical feature locations according to the drawing requirements.

5. Machining SKD11 Tool Steel

SKD11 is more demanding to machine than common aluminum alloys.

Tool selection, cutting conditions, workholding, tool wear, and machining sequence all influence dimensional consistency.

For hardened SKD11, the manufacturing process may require a combination of:

Rough machining → Heat treatment → Finish machining / grinding → Inspection

The exact process depends on the required hardness, geometry, tolerance, and surface finish.

6. Controlling Deformation and Dimensional Stability

Longer or offset lever geometries can be more sensitive to workholding and machining stress than simple rectangular parts.

When tight tolerances are required, machining sequence and workholding need to be considered together with the material condition.

For critical components, we focus on maintaining the relationship between the functional surfaces rather than simply achieving isolated dimensional tolerances.

Why Choose XINQIDA for Custom Actuating Levers?

XINQIDA provides custom CNC machining services for mechanical transmission, linkage, mounting, and automation components.

We manufacture drawing-specific parts rather than relying on standard off-the-shelf dimensions.

Our capabilities include:

• 3-axis, 4-axis, and 5-axis CNC machining
• CNC milling and turning
• Prototype and low-volume production
• Production batch machining
• Aluminum, stainless steel, tool steel, and other engineering materials
• Heat treatment coordination
• Surface finishing
• Dimensional inspection
• CMM and optical inspection for selected requirements
• DFM feedback before production
• Manufacturing according to 2D drawings, 3D CAD models, or samples

For an offset actuating lever, we pay particular attention to the relationship between mounting holes, locating features, threaded interfaces, and functional surfaces, because these relationships determine how the component fits and operates within the complete mechanism.

Send us your drawing or 3D model for a free DFM review and CNC machining quotation.

Frequently Asked Questions

What is an offset actuating lever?

An offset actuating lever is a mechanical lever with an offset or stepped configuration used to transfer or control motion between components positioned at different locations or planes.

What are offset actuating levers used for?

They are commonly used in automation equipment, mechanical linkages, motion mechanisms, positioning systems, feeding mechanisms, clamping systems, and custom machinery where a direct straight connection is not practical.

What is the difference between an actuating lever and a linkage bracket?

An actuating lever primarily transfers or changes mechanical motion, while a linkage bracket generally provides a structural connection or mounting interface. Some components can perform both functions depending on the mechanical assembly.

Can you manufacture custom offset actuating levers from drawings?

Yes. XINQIDA can manufacture custom actuating levers from 2D engineering drawings, 3D CAD models, or physical samples, subject to manufacturability and inspection requirements.

What materials can be used for CNC machined actuating levers?

Common options include SKD11 tool steel, stainless steel, aluminum alloys, alloy steel, and other engineering materials. The appropriate material depends on load, wear, operating environment, weight requirements, and service life.

Can you CNC machine SKD11?

Yes. SKD11 can be CNC machined, with the manufacturing process selected according to its material condition and required hardness. For hardened components, rough machining, heat treatment, finish machining, and grinding may be combined when necessary.

What CNC tolerance can you achieve?

A general CNC machining tolerance of around ±0.01 mm is typical for suitable features and processes. Tighter tolerances such as ±0.005 mm may be achievable on selected critical features when the part geometry, material, machining process, and inspection method allow it.

The final tolerance should always be defined by the engineering drawing rather than assumed as a universal CNC tolerance.

Can you manufacture other transmission parts?

Yes. Our CNC machining services can support custom actuating levers, linkage components, shafts, pins, brackets, mounting components, bushings, and other mechanical transmission parts.

Do you accept prototype and small-batch orders?

Yes. XINQIDA supports prototype, small-batch, and production quantities, making the service suitable for new automation equipment development, engineering validation, replacement components, and ongoing OEM production.

Custom Manufacturing

If your automation equipment requires a non-standard actuating lever, provide your 2D drawing, 3D CAD model, material specification, quantity, and required tolerances.

Our engineers can review the design for manufacturability, identify critical machining features, and provide a CNC machining quotation based on the actual part requirements.

Custom CNC machining starts with your drawing.
