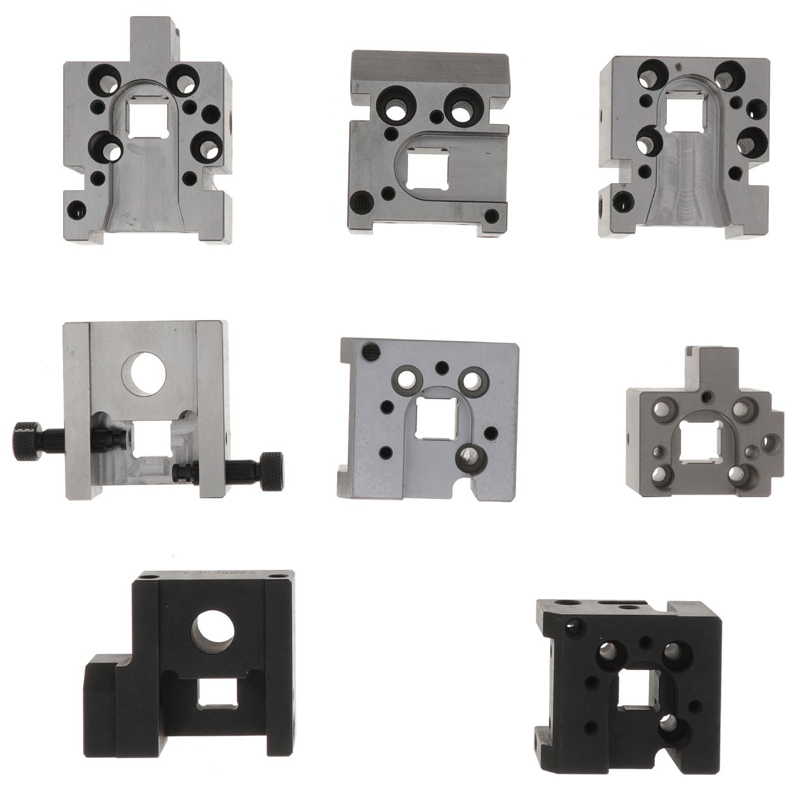

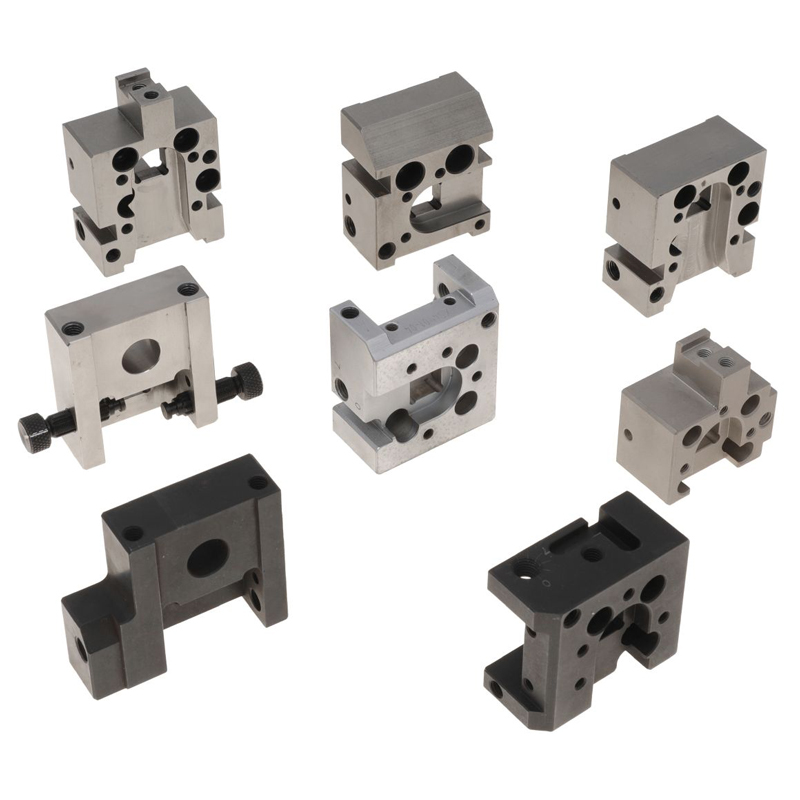

Custom CNC machined fixture components designed for precise positioning, clamping, and repeatable workholding in machining and automated production systems.
Description
Our Precision CNC Machined Fixture & Jig Components are designed to provide reliable positioning, secure clamping, and high repeatability in machining and automated production environments. These components are widely used in CNC machining centers, assembly lines, and inspection systems where accuracy and consistency are critical.
Manufactured using advanced CNC milling and drilling processes, each part features complex geometries such as profile cavities, positioning slots, and multi-axis hole patterns. These structures are engineered to precisely locate and constrain workpieces, ensuring stable machining and minimizing setup errors.
We offer a wide range of material options including aluminum alloys, stainless steel, and hardened tool steels to meet different strength, wear resistance, and environmental requirements. Surface treatments such as anodizing, black oxide, and plating are available to enhance corrosion resistance and durability.
Our fixture components are fully customizable based on customer drawings or samples. Whether for prototype development or batch production, we ensure tight tolerances, consistent quality, and fast turnaround times. With extensive experience in tooling and automation parts, we can also support design optimization for improved performance and cost efficiency.
| Parameter | Details |
|---|---|
| Product Name | Precision CNC Machined Fixture & Jig Components |
| Process | CNC Milling, Drilling, Tapping, Surface Grinding |
| Material Options | Aluminum (6061, 7075), Stainless Steel (303, 304, 316), Carbon Steel, Tool Steel |
| Surface Treatment | Anodizing, Black Oxide, Nickel Plating, Sandblasting, Polishing |
| Tolerance | ±0.01 mm (Standard), ±0.005 mm (High Precision Available) |
| Surface Roughness | Ra 0.8 – 3.2 μm (Customizable) |
| Hardness | According to material (e.g. HRC 45–60 for tool steel) |
| Size Range | Custom (Typically 10 mm – 300 mm) |
| Hole Types | Through Holes, Threaded Holes, Counterbore, Countersink |
| Thread Standard | Metric (ISO), UNC, UNF, BSP (Custom Available) |
| Structural Features | Positioning Slots, Profile Cavities, Mounting Faces, Alignment Surfaces |
| Assembly Features | Dowel Pin Holes, Clamping Interfaces, Adjustable Mechanisms |
| Application | Workholding, Positioning, Clamping in CNC Machining & Automation Systems |
| Inspection | CMM, Height Gauge, Projector, Full Dimensional Inspection |
| Drawing Format | 2D (PDF/DWG), 3D (STEP/IGES/STL) |
| MOQ | 1 Piece (Prototype Available) |
| Lead Time | 3–7 Days (Samples), 7–25 Days (Mass Production) |
| OEM/ODM | Supported |
