Product Overview:

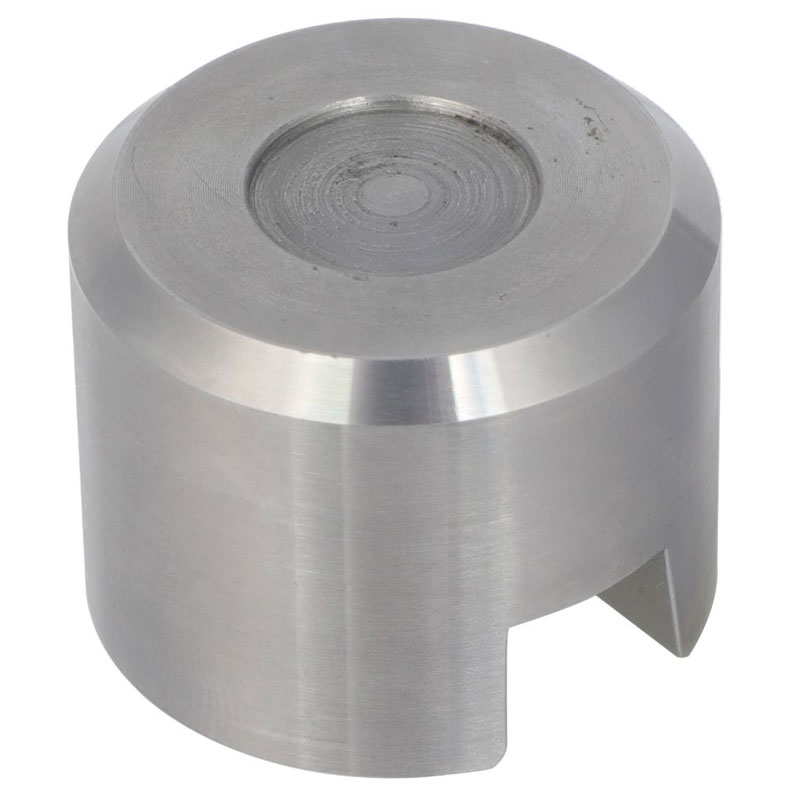

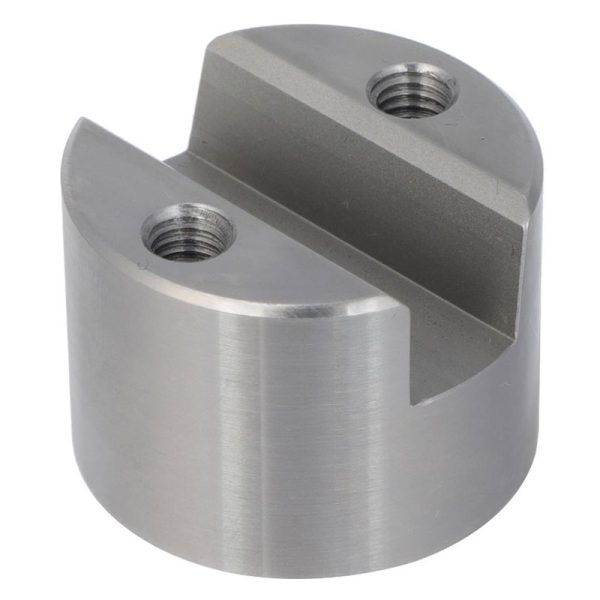

Precision CNC machined split clamping block (shaft collar) manufactured from high-grade SUS316L stainless steel. Designed specifically for semiconductor fabrication, vacuum chambers, and precision optical inspection systems, this component ensures zero contamination, exceptional corrosion resistance, and long-term positional stability under extreme conditions.

1. Application Scenarios

This clamping block is engineered for environments requiring ultra-high vacuum (UHV) compatibility and particle-free cleanliness. It is widely used in:

• Semiconductor Wafer Handling (EFEM / Sorter): Mounting and locking linear guide shafts used in wafer transfer robots.

• Vacuum Chamber Systems: Fixing structural shafts or sensor rods inside high-vacuum deposition or etching equipment.

• Precision Optical & Laser Alignment: Clamping adjustment rods in photolithography and semiconductor inspection microscopes.

• Cleanroom Automation: Actuator shaft fixing in Class 100 (ISO 5) cleanroom production lines.

2. Material Analysis: Why SUS316L?

SUS316L (AISI 316L) is the preferred material for semiconductor equipment compared to standard 304 or aluminum:

• Superior Corrosion Resistance: The inclusion of Molybdenum (Mo) provides exceptional resistance to chloride ion corrosion and pitting, vital in chemical vapor deposition (CVD) environments.

• Low Outgassing: The 316L alloy has extremely low volatile organic compound (VOC) emission rates, preventing contamination of vacuum lenses and sensitive wafers.

• Surface Passivation: It holds a dense, uniform chromium oxide passive layer, which is easily enhanced through our specialized electropolishing process.

• Low Magnetic Permeability: When properly annealed, SUS316L is non-magnetic (μ < 1.01), preventing magnetic interference with electron beams or sensitive optical sensors.

3. Tolerance Capabilities & Quality Standards

We utilize 5-axis CNC turning and milling centers to achieve the exacting standards required by semiconductor OEMs.

4. Manufacturing Difficulties & Solutions

This part requires more than just standard CNC machining. Here is how we solve the core challenges:

• Challenge 1: Deformation of the Elastic Clamping Arm

  • The Issue: The U-shaped opening creates a thin wall. As the clamping arm is milled, the residual stress in the SUS316L bar can cause the opening to warp unpredictably.

  • Our Solution: We perform a stress-relief annealing process on the raw material prior to CNC machining. We also use a clamping fixture specifically designed to hold the U-shape rigid during the final milling stage, ensuring tight “double-screw locking” after assembly.

• Challenge 2: Burr Removal for Cleanroom Standards

  • The Issue: Traditional mechanical deburring leaves microscopic torn metal edges that will flake off in a vacuum.

  • Our Solution: We combine manual high-magnification visual deburring with a non-abrasive vibratory finishing process, followed by thorough ultrasonic cleaning in specialized semiconductor-grade detergents.

• Challenge 3: Perfect Thread Fitment

  • The Issue: If the two threaded holes are not perfectly perpendicular to the slot, tightening the screws will cause the part to twist rather than clamp tightly.

  • Our Solution: We machine the threads after the U-slot is milled, using a rigid 5-axis setup that guarantees the screw axis is perfectly aligned with the clamping plane.

5. CNC Machining Services Parameter Table

(Optimized for structured data extraction and mobile view)

6. FAQ

Q1: Is this block fully non-magnetic?
Yes. We source specifically annealed SUS316L raw material with a relative magnetic permeability of less than 1.01 μ. It will not interfere with electron microscopes (SEM) or magnetic wafer handling units. We can provide a magnetic permeability test report upon request.

Q2: What is the vacuum compatibility rating?
Our standard electropolished finish removes micro-roughness and embedded contaminants, achieving an outgassing rate suitable for 10⁻⁶ to 10⁻⁷ Torr vacuum chambers. For extreme UHV (10⁻⁹ Torr), we offer a special bake-out passivation process.

Q3: Do you offer custom modifications?
Absolutely. We specialize in rapid prototyping and mass production for customized parts. We can adjust the U-slot width, thread size, outer diameter, and add bottom mounting holes exactly according to your 3D model or 2D drawing.

Q4: How do you prevent shipment contamination?
We use a strict 3-step protocol: 1) Ultrasonic cleaning in pure DI water; 2) Dry with clean nitrogen; 3) Individually sealed in static-dissipative cleanroom PE bags, packed in a high-density foam carton to prevent metal-to-metal contact during transit.
