Description

1. Product Overview

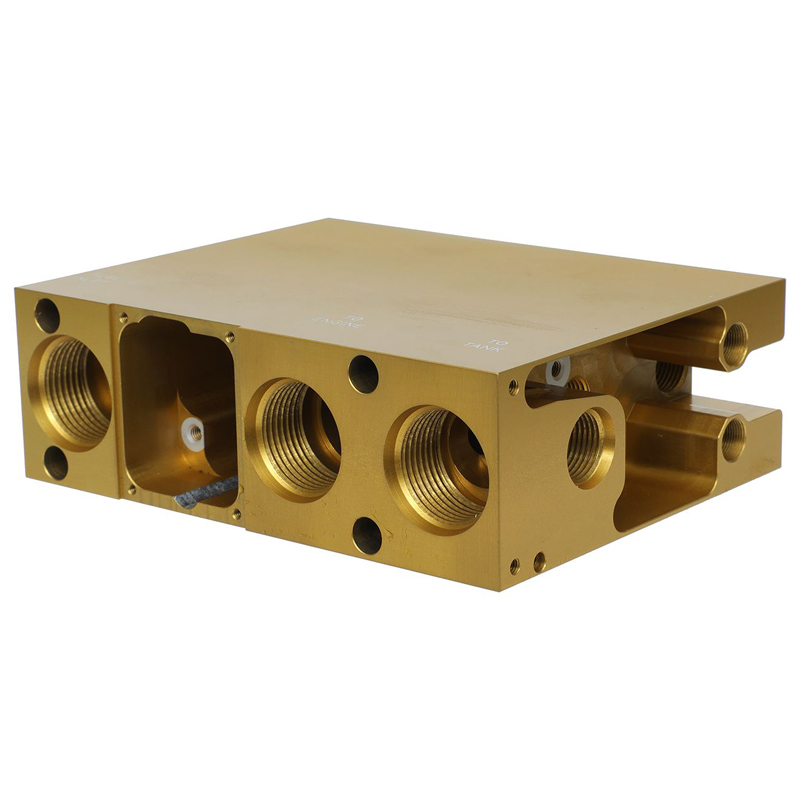

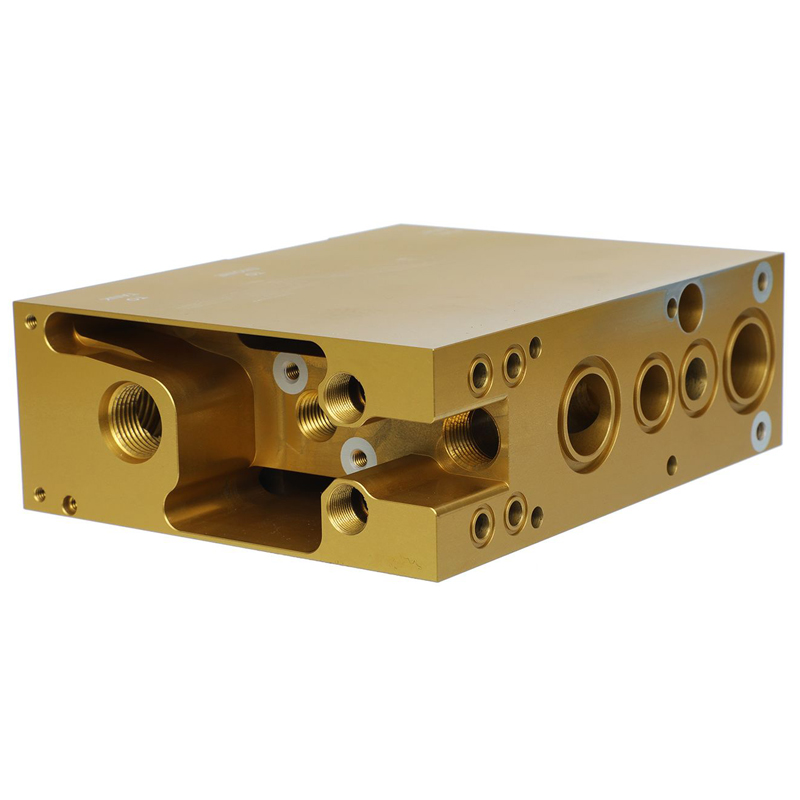

An oil cooler adapter block is a precision CNC-machined aluminum manifold that mounts between an engine’s oil system and an external oil cooler or remote oil filter. It reroutes engine oil out of the block, through the cooler for heat rejection, and back into the lubrication circuit — keeping oil temperature under control during high-load driving, towing, and track use.

Our custom-machined adapter blocks are produced from 6061-T6 or 7075-T651 billet aluminum, fully machined on 4- and 5-axis CNC centers, with multi-port layouts (AN-6 to AN-10), O-ring boss (ORB) ports, internal cross-drilled galleries, laser-etched port labels, and Type II / Type III anodized finishes. Every block is deburred, inspected, and delivered with a full dimensional report — ready for installation in street, race, motorcycle, and classic-car engine oil systems.

Why it matters: A single machined block replaces meters of loose hose, multiple fittings, and potential leak points. It compresses the external oil circuit into one compact, repeatable, high-pressure part — the reason racing and aftermarket cooling kits are built around adapter blocks like this one.

2. CNC Machining Services – Technical Parameters

3. Application Scenarios

• High-performance street & track cars — turbocharged and supercharged builds, LS / LT engine swaps, where factory heat exchangers exceed their cooling capacity.
• Motorcycle engine oil cooling — external oil tank and oil cooler conversions on naked, adventure, and racing bikes.
• Classic & collector cars — air-cooled and older liquid-cooled engines that rely on external oil tanks and add-on coolers.
• Racing & motorsport — endurance, drift, and drag applications requiring reliable oil temperature control under sustained load.
• Towing & off-road vehicles — pickups and 4x4s that generate sustained thermal load during heavy towing or low-speed off-road driving.
• Remote oil filter relocation — moving the filter to an accessible location while adding cooler circuit ports in the same block.

4. Material Analysis

Recommendation: For the vast majority of automotive oil cooler adapter blocks, 6061-T6 is the right default — excellent machinability, good strength, light weight, and it takes anodizing well. Choose 7075-T651 when wall sections are thin or operating pressures are higher. Aluminum is preferred over steel for thermal performance, weight, and corrosion resistance in oil circuits.

5. Tolerance Capability

These tolerances are verified by CMM inspection and thread gauging on every part, and a full FAI / dimensional report is supplied with each order.

6. Manufacturing Challenges (and How We Solve Them)

1. Internal cross-drilled galleries — Ports must connect inside the block without intersecting unintended channels. We use 4/5-axis positioning and verified tool paths with collision-checked drilling sequences.
2. Internal burr control — A single loose chip can block a gallery, stick a valve, or destroy an engine. We use abrasive-flow (polishing) deburring plus manual micro-burr removal on every internal passage, then air-blow and inspect.
3. Thread accuracy for AN / ORB fittings — Fitting threads must seal and seat consistently. We use thread gauging (GO/NO-GO) and controlled tapping cycles to hit Class 2B/6H.
4. Sealing surface quality — Anodizing must not build up on sealing faces. We mask sealing surfaces or machine them after anodizing to keep the seal face true.
5. Deep-hole drilling — Long, small-diameter channels require peck drilling and coolant-through tooling to avoid drift and tool breakage.
6. Multi-operation fixturing — Ports on multiple faces demand repeatable fixtures and true-position verification so each face references the same datum.
