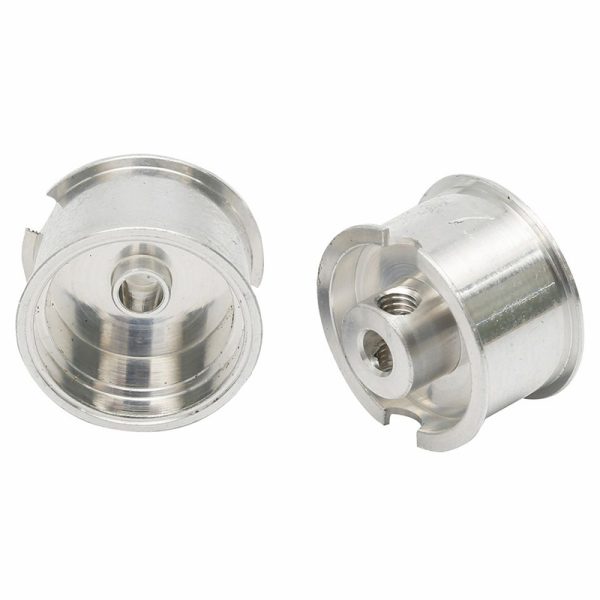

CNC Turn‑Mill Machined Aluminum Clutch Hub Sleeve with Outer Dual Snap Slots for Motorcycle Engine
Description
1. Product Overview (SEO Optimized)
Our CNC turn-mill machined aluminum clutch hub sleeve with outer dual snap slots is a precision-engineered core component customized for motorcycle engine clutch assembly systems. Manufactured via integrated turn-mill CNC machining services, this hub sleeve features uniquely designed outer dual snap slots, stable buffer structure, and high structural rigidity, effectively solving clutch jitter, vibration wear, and assembly looseness issues during motorcycle engine operation. As a high-precision auto and motorcycle mechanical part, it delivers excellent dimensional stability, fatigue resistance, and fit accuracy, perfectly adapting to high-frequency start-stop and high-load working environments of street bikes, off-road motorcycles, and modified motorcycle engines. All products support custom drawing processing, mass production, and strict precision testing, meeting global motorcycle accessory manufacturing standards.
2. CNC Machining Service Technical Parameters
Below are standardized, search-engine-friendly CNC processing parameters for this clutch buffer hub sleeve, covering core machining indicators to support customer verification and bulk order confirmation:
|
Machining Parameter Item
|
Technical Standard & Specification
|
|---|---|
|
Processing Technology
|
Integrated CNC Turn-Mill Composite Machining
|
|
Applicable Material
|
6061 / 6063 / 7075 Aviation Grade Aluminum Alloy
|
|
Overall Dimension Tolerance
|
±0.005mm–±0.01mm
|
|
Snap Slot Position Tolerance
|
±0.008mm
|
|
Surface Roughness
|
Ra 0.8μm–Ra 1.6μm
|
|
Roundness & Cylindricity
|
≤0.003mm
|
|
Processing Accuracy Grade
|
IT5–IT6 High Precision Grade
|
|
Surface Treatment
|
Anodizing, Sandblasting, Polishing, Anti-oxidation Coating (Customizable)
|
|
Batch Production Capacity
|
1–50000 pcs Custom Mass Production
|
|
Inspection Standard
|
ISO 2768 Precision Machining Standard, CMM Full Inspection
|
3. Application Scenarios
This CNC aluminum clutch buffer hub sleeve is professionally developed for motorcycle engine clutch transmission systems, with wide and targeted application scenarios:
-
Ordinary Street Motorcycle Engines: Used for original factory clutch assembly matching, reducing transmission vibration and improving riding smoothness during daily commuting and high-speed cruising.
-
Off-Road & Cross-Country Motorcycles: Adapt to harsh working conditions such as bumpy roads and frequent gear shifting, relying on high structural stability to avoid clutch component failure.
-
Modified Motorcycle Parts: Ideal for engine performance modification, upgrading original ordinary hub sleeves to enhance clutch response speed and load-bearing capacity.
-
Small Displacement & Medium Displacement Motorcycle Engines: Universal matching for 125cc–800cc motorcycle engine clutch buffer systems, supporting OEM and ODM customized production.
-
General Mechanical Transmission Equipment: Suitable for small precision transmission machinery with buffer damping and snap fixing structural requirements.
4. Material Performance Analysis
We adopt high-quality aviation-grade aluminum alloy as the core raw material for the clutch buffer hub sleeve, with outstanding comprehensive mechanical properties suitable for high-precision motorcycle parts:
-
6061 Aluminum Alloy (Standard Version): Features excellent toughness, strong anti-fatigue performance, and good oxidation resistance. It is easy for precision machining and surface treatment, effectively resisting long-term vibration wear of the engine clutch system, and is the most cost-effective choice for mass production of original factory parts.
-
7075 Aluminum Alloy (High-Performance Version): Adopts super-hard aluminum material with higher tensile strength and hardness. It can withstand higher engine load and instantaneous impact force, suitable for high-power modified motorcycles and racing motorcycle engine parts, with longer service life.
-
Core Material Advantages: Compared with steel parts, aluminum alloy materials greatly reduce the overall weight of the clutch assembly, reduce engine load, and improve fuel economy and power transmission efficiency. Meanwhile, the material has good thermal conductivity, which can quickly dissipate the heat generated by clutch friction and avoid component aging and failure caused by high temperature.
5. Precision Tolerance Capability
Relying on advanced CNC turn-mill composite equipment and mature precision processing technology, we achieve ultra-high tolerance control for all key positions of the hub sleeve, fully meeting the assembly precision requirements of motorcycle engine core parts:
-
Overall Dimensional Tolerance: Strictly controlled within ±0.01mm, and the precision of customized small-size parts can reach ±0.005mm, ensuring zero-gap matching with clutch bearings and buffer parts.
-
Dual Snap Slot Tolerance: The core outer dual snap slots adopt one-time turn-mill integrated forming, with position tolerance controlled at ±0.008mm, consistent slot width and depth, ensuring precise clamping and fixing of snap springs, and preventing assembly deviation and part falling off.
-
Geometric Tolerance Control: The inner and outer circular surfaces have roundness and cylindricity errors ≤0.003mm, avoiding rotation jitter during engine operation and ensuring stable clutch transmission.
-
Surface Precision: The finish of the assembly contact surface reaches Ra 0.8μm, reducing friction resistance during relative operation, improving clutch sensitivity, and reducing component wear rate.
6. Manufacturing Difficulties & Technical Solutions
The aluminum clutch buffer hub sleeve with outer dual snap slots has complex structural design and high precision requirements, with three core manufacturing difficulties. Our professional processing technology effectively solves industry pain points:
-
Dual Snap Slot Symmetry & Positioning Accuracy Control: The outer dual snap slots are symmetrically distributed, and slight position deviation will cause snap spring clamping failure. Technical Solution: Adopt 4-axis linkage CNC turn-mill equipment, one-time clamping and integral forming, avoid secondary clamping errors, and use CMM three-dimensional detector to calibrate slot position symmetry 100%.
-
Thin-Wall Structural Deformation Prevention: The hub sleeve has a thin-wall hollow structure, which is easy to deform under cutting force and temperature during processing, affecting dimensional stability. Technical Solution: Optimize cutting parameters, adopt low-speed fine cutting and staged processing technology, match professional fixture positioning, and perform stress relief treatment after processing to eliminate internal material stress.
-
Consistency of Batch Production Precision: It is difficult to maintain uniform tolerance and surface finish for mass-produced parts. Technical Solution: Form standardized processing procedures and parameter databases, equip professional quality inspection teams, implement full-size inspection of finished products, and ensure consistent precision of each batch of parts.
7. Frequently Asked Questions (FAQ)
We sort out high-frequency customer questions about this CNC machined aluminum clutch buffer hub sleeve to help customers quickly understand product and service details:
Q1: Can you provide customized size and structure processing?
A1: Yes. We support full customization according to customer drawings, samples or parameter requirements, including adjusting hub sleeve size, snap slot position/quantity, surface treatment, material grade, etc., to match different models of motorcycle engines.
Q2: What is the delivery cycle for sample and mass production orders?
A2: Sample delivery takes 3–5 working days; small batch orders (100–1000pcs) take 7–10 working days; large batch mass production orders can be negotiated for priority delivery to meet customer project progress.
Q3: How to guarantee the product precision and quality?
A3: All products adopt CNC turn-mill integrated precision processing, strictly implement ISO 2768 precision standards. Each finished product undergoes CMM three-dimensional precision detection, surface roughness test and dimensional full inspection, with complete quality inspection reports provided.
Q4: What surface treatment options are available for aluminum hub sleeves?
A4: We provide multiple surface treatments including natural anodizing, hard anodizing, sandblasting, mirror polishing and anti-corrosion coating, which can improve the product’s wear resistance, oxidation resistance and appearance texture.
Q5: Is this part suitable for high-power modified motorcycles?
A5: Yes. For high-power modified models, we recommend customized 7075 super-hard aluminum material, which has higher strength and load-bearing capacity, adapting to high-load and high-frequency working conditions of modified engines.
Q6: Do you support OEM/ODM cooperative production?
A6: We provide professional OEM and ODM one-stop services, including product design optimization, processing production, quality testing, customized packaging and other full-process services, supporting long-term factory cooperation.
