Product Overview

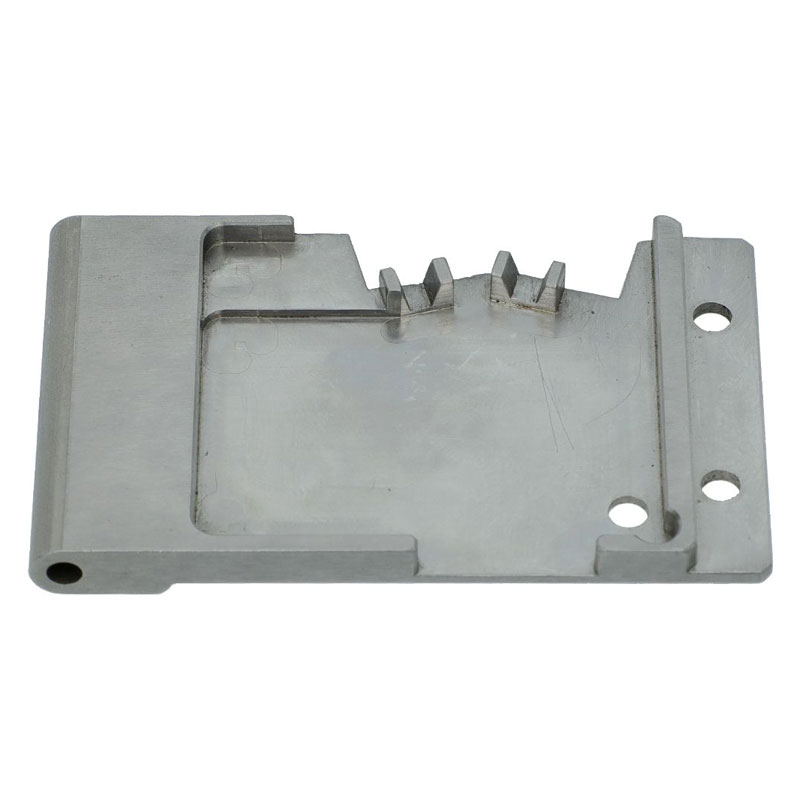

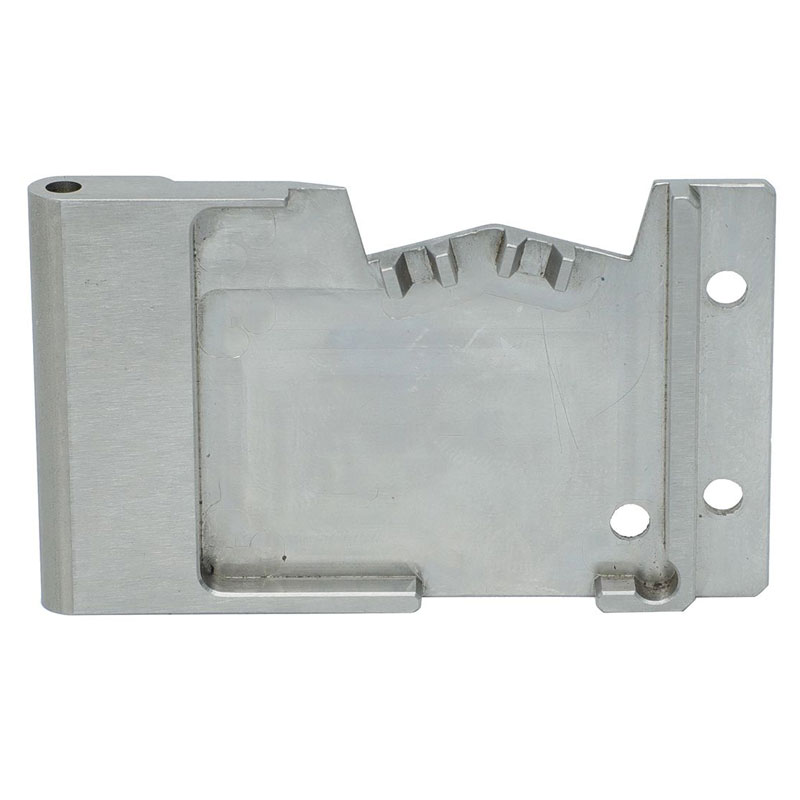

Engineered for the rigorous demands of the Automotive New Energy and ADAS (Advanced Driver Assistance Systems) sectors, this precision-machined mounting bracket serves as a critical structural backbone for sensors. It features an integrated gear rack interface, a heavy-duty pivot hole, and a standardized flange mounting design, allowing for precise angular adjustment and secure fixation of automotive radar, LiDAR, and camera modules. This component is manufactured under strict IATF 16949 quality guidelines, ensuring uncompromised reliability for safety-critical driving systems.

CNC Machining Services Specification Sheet

Below is our standard technical capability matrix for manufacturing this specific bracket and similar automotive precision parts.

Application Scenarios

Due to its unique “rotational plus linear motion” structural logic, this bracket is widely used in automotive safety and automated driving ecosystems:

• Autonomous Driving Perception Modules: Adjustable mounting bases for Millimeter-Wave Radars, LiDAR sensors, and Surround-view Camera systems.

• Active Grille Shutters (AGS): Used as the drive rack and linkage bracket that acts as an actuator to open/close active grilles.

• In-Vehicle Infotainment: Positioning brackets for cabin-facing cameras (Driver Monitoring Systems – DMS).

• Battery & Electric Control Boxes: Precision positioning mounts for internal wiring harness brackets.

Material Analysis (Why 6061 Aluminum?)

• Excellent Strength-to-Weight Ratio: Automotive electrification demands weight reduction. 6061-T6 aluminum provides the necessary tensile strength (approx. 310 MPa) while shedding bulk compared to steel.

• Corrosion & Vibration Resistance: The inherent oxide layer of aluminum, enhanced further by anodizing, offers outstanding resistance to moisture and vibration.

• Superior Machinability: Unlike harder steels, 6061 allows for high-speed CNC milling with exceptional surface finishes, which is crucial for maintaining the precise contact surface of the integrated gear rack.

Precision & Tolerance Capability

In ADAS applications, even 0.1 degrees of sensor misalignment can result in a catastrophic safety error. Our tolerance capabilities ensure:

1. Gear Rack Pitch Accuracy: We control the gear tooth pitch and pressure angle to ±0.005mm, ensuring no backlash when engaged with the motor pinion.

2. Pivot Hole Concentricity: The left-side pivot hole is machined with a strict cylindrical tolerance, ensuring a wobble-free rotational axis.

3. Flatness of Mounting Flange: The right-side three-hole flange is processed to maintain flatness < 0.02mm, preventing bolt pre-tension loss due to uneven surfaces.

Manufacturing Difficulties & Our Solutions

• Complex Feature Contradiction: The part requires an integrated gear rack while simultaneously requiring a deep center cavity. Our Solution: We utilize 5-axis simultaneous CNC machines to machine the rack and the cavity in a single fixturing setup, eliminating positioning errors.

• Deformation Control on the “L-Shape” Guide Edge: The bottom guide rail is a thin, overhanging L-shaped flange. Our Solution: We use adaptive toolpath strategies with heavy high-pressure coolant and apply a stress-relief heat treatment to the aluminum block before precision milling.

• Hole Position Accuracy: The three mounting holes need a precise pitch distance to align with standard automotive frames. Our Solution: We rely on high-rigidity 4-axis milling centers and reference the pivot hole as the zero datum.

Frequently Asked Questions (FAQ)

Q1: Do you offer prototyping services for this automotive bracket?
A: Absolutely. We provide rapid CNC prototyping (as low as 1 piece) with 100% CMM inspection, allowing you to verify the fitment before committing to a large-volume order.

Q2: What surface treatment is recommended for automotive sensor brackets?
A: We highly recommend Clear or Hard Anodizing (Type II/Type III). Hard anodizing adds an extremely durable, ceramic-like layer that resists abrasion and heat, ensuring the part functions over the vehicle’s 10+ year lifespan.

Q3: How do you ensure the gear rack meshes perfectly with my motor’s pinion gear?
A: We strictly adhere to DIN/AGMA gear tolerance standards. We can also perform a physical “gear meshing test” using a gear measuring instrument upon request.

Q4: What is your typical lead time for mass production?
A: For high-volume automotive parts, our lead time is usually 25 to 35 working days. We hold a robust inventory of 6061-T6 aluminum stock, which significantly reduces the initial material procurement time.

Q5: How do you handle packaging to prevent scratches during transit?
A: We use a tiered packaging method: protective plastic film + foam inner insert + customized heavy-duty export carton. For critical surface requirements, we utilize vacuum-sealed blister packaging.

Contact Us for Custom Automotive CNC Parts
Whether you have a 2D blueprint or a 3D STEP/IGES file, our experienced engineers are ready to provide an instant DFM analysis and a competitive quotation. Send us your inquiry today.
