Product Overview

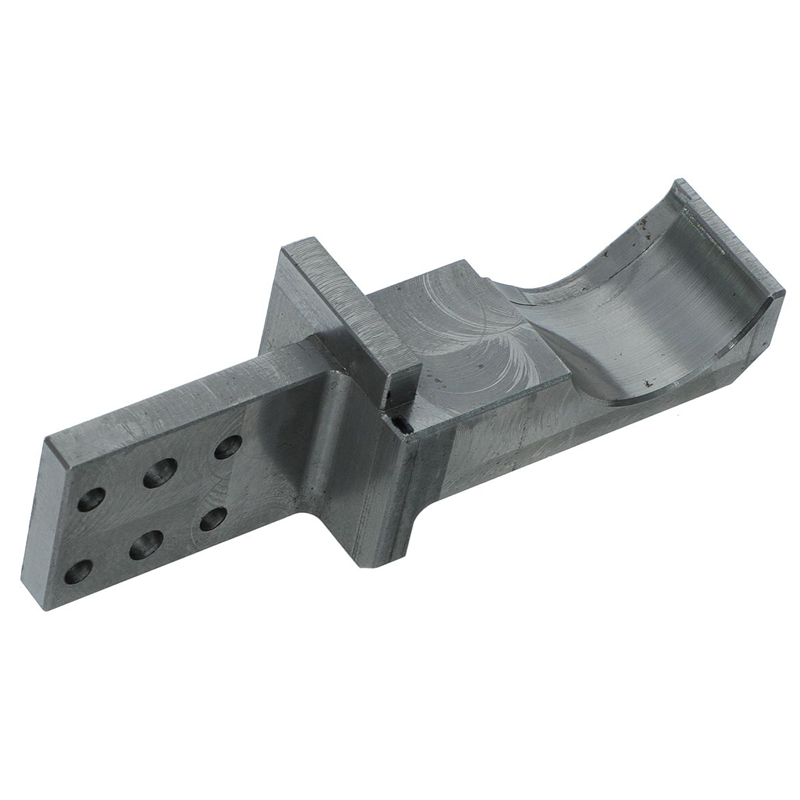

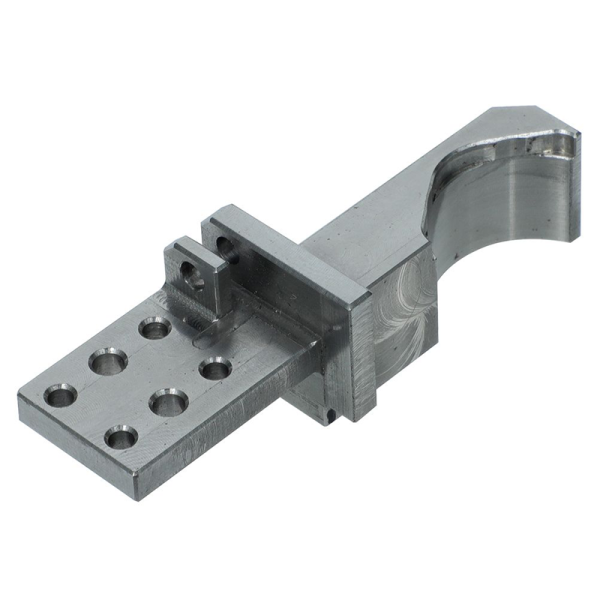

This precision CNC machined steel support bracket is an essential structural component designed for high-speed reciprocating motion systems. Featuring a unique half-moon saddle curve for cylindrical clamping, a 6-hole mounting flange for rigid fixation, and dual sensor-mounting ears for position feedback, this bracket excels in Textile Machinery (Embroidery Machines) as well as Industrial Automation and General Manufacturing Equipment. Crafted from solid steel blocks, it offers superior mechanical strength, impact resistance, and long-term dimensional stability in demanding working environments.

CNC Machining Services & Technical Parameters Table

Application Scenarios (Where is it used?)

This bracket is engineered for both specific specialized machinery and generic heavy-duty equipment:

• Textile & Embroidery Machines (Primary): Used in the thread trimming mechanism, pressing foot assembly, or thread tension units. The sensor-mounting ears connect to proximity sensors to detect the exact position of the mechanical arm during high-speed embroidery cycles.

• Industrial Automation & Robotics: Serves as a pneumatic cylinder saddle bracket or a structural support block in transfer lines and automatic packaging equipment. It clamps round pipes, rods, or motor housings securely.

• Manufacturing Equipment: Functions as a specialized mounting fixture on heavy-duty CNC lathe or milling machine frames, providing stable structural support for auxiliary guide rails or switch gearboxes.

Material Analysis (Why Steel?)

Steel is selected over aluminum or plastic for this specific part due to rigorous engineering requirements:

• High Load-Bearing Capacity: The long cantilever structure of the bracket requires a material with high tensile strength and fatigue resistance to prevent bending or deformation under heavy vibration and stress. Carbon Steel (45#) offers an excellent strength-to-cost ratio.

• Superior Wear Resistance: In high-speed textile machinery, moving parts cause significant friction. Steel’s hardness (after heat treatment, if required) ensures that the curved saddle keeps its precise shape over millions of cycles.

• Structural Stability: Unlike aluminum, steel has a low thermal expansion coefficient. This ensures that the 6-hole mounting flange maintains exact alignment even when the machine runs hot for extended hours.

Tolerance & Precision Capabilities

We maintain strict control over the critical dimensions to ensure perfect fitment in the assembly line:

• Positional Accuracy of Sensor Ears: The two ears are machined to a positional tolerance of ±0.01mm to ensure the proximity sensor aligns perfectly with the mechanical trigger.

• Flatness of Mounting Face: The bottom of the 6-hole flange achieves a flatness of 0.02mm, guaranteeing zero gap when bolted to the machine chassis.

• Perpendicularity: The central locating step is machined perpendicular to the mounting base within 0.02mm, ensuring the bracket sits exactly vertical for accurate mechanical motion.

Manufacturing Challenges & Our Solutions

Producing this steel bracket requires a high level of CNC machining expertise. Here is how we overcome the manufacturing difficulties:

1. Challenge: Cantilever Deflection during Machining. Because the bracket is a long, single-sided cantilever, the high cutting forces of steel milling can cause the workpiece to vibrate or bend, leading to out-of-tolerance dimensions.

   • Our Solution: We utilize custom-designed soft jaws and specialized fixtures to securely clamp the entire length of the workpiece. Furthermore, we employ high-speed roughing followed by low-force finishing passes to ensure dimensional integrity.

2. Challenge: Surface Finish of the Saddle Curve. Achieving a mirror-like surface on the internal half-circle saddle is extremely difficult with standard milling; if the step-over is too large, it leaves visible “machine lines.”

   • Our Solution: We use solid carbide ball-nose end mills with a very fine step-over distance (0.05mm~0.1mm) running at high RPMs. This creates a smooth curve (Ra < 1.6μm) that requires no secondary grinding.

3. Challenge: Concentricity of the Sensor Ear Holes. Since these holes are positioned on protruding “ears,” they are prone to drill walk-off or misalignment.

   • Our Solution: Instead of drilling directly, we use CNC spot-drilling to create pilot holes first, followed by precision boring or reaming to ensure the holes are dead-center and parallel to each other.

FAQ (Frequently Asked Questions)

Q1: Is this a standard stock item or made-to-order?
A: This is an OEM custom-machined part. We manufacture strictly based on your 2D (PDF/DWG) and 3D (STEP/IGES) drawings. We do not keep inventory of specific customer designs.

Q2: Can you help with the surface finish? Do you offer heat treatment?
A: Absolutely. For this steel bracket, we strongly recommend surface treatment like Black Oxide (for anti-corrosion) or Zinc Plating. If you need higher hardness for wear resistance, we can arrange HRC 45~52 quenching and tempering before the final machining process.

Q3: What is your MOQ? Is a prototype possible?
A: Yes. We accept MOQ = 1 piece for prototyping and testing. Once the prototype is approved and fits your embroidery machine perfectly, we can proceed to mass production (100-1000+ pieces) at very competitive unit prices.

Q4: How do you ensure the 6 holes on the mounting plate are perfectly aligned?
A: During the manufacturing process, we program the CNC machine to drill and counterbore these 6 holes in a single setup (operation) without moving the workpiece. This guarantees that the relative positions (pitch distances) of all holes are within ±0.01mm. We also provide a full CMM (Coordinate Measuring Machine) Inspection Report with each shipment.

Q5: What is the standard packaging?
A: To prevent scratches and rust during shipping, we package each steel bracket individually in rust-preventive VCI (Volatile Corrosion Inhibitor) paper, bubble-wrapped, and secured in custom foam-cut, heavy-duty cardboard or wooden crates for overseas sea/air freight.
