Description

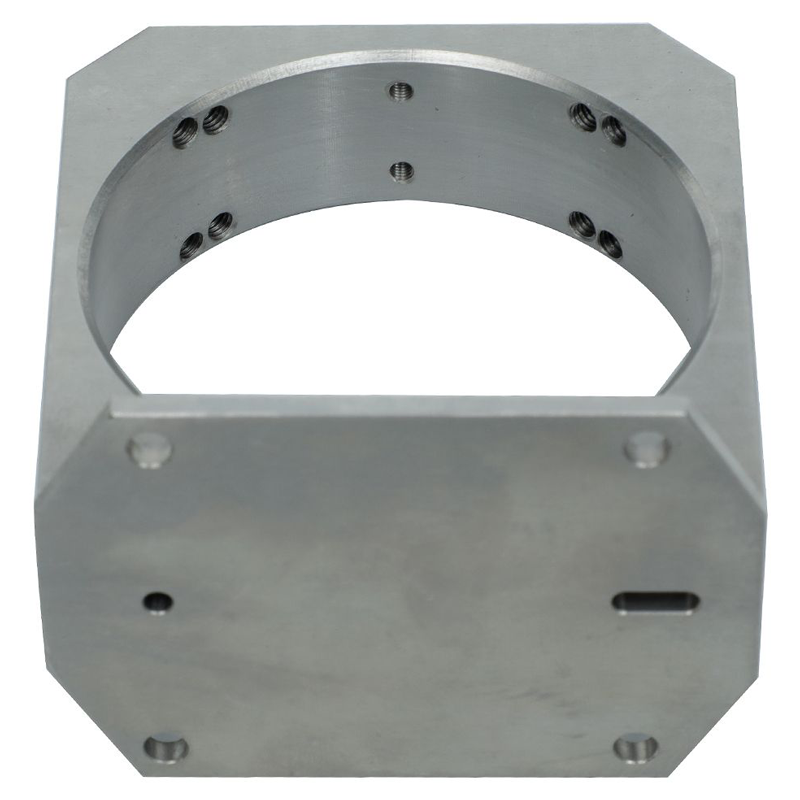

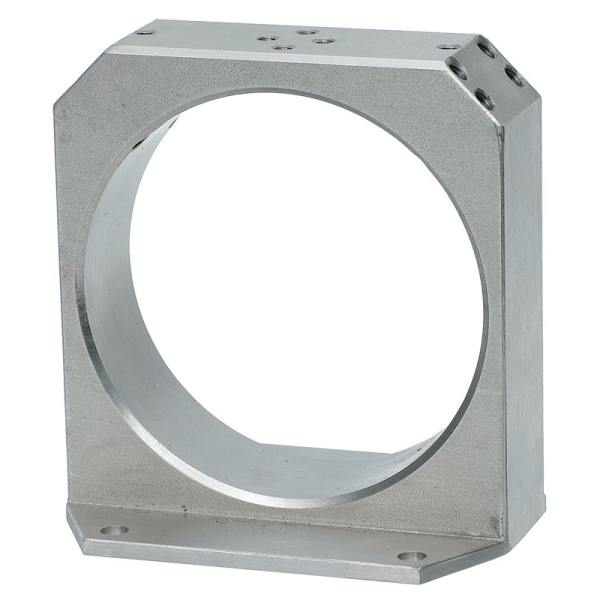

This precision-engineered steel bearing housing is specifically designed for environments where structural rigidity and vibration dampening are critical. Manufactured from solid high-strength steel blocks, this heavy-duty spindle mount bracket features internal clamping threads for secure cartridge fixation and precision adjustment slots for precise coupling alignment. It is the ideal alternative to lightweight aluminum parts for demanding, high-torque applications.

CNC Machining Services Technical Specifications

We provide end-to-end custom CNC machining services for complex structural housings. Below is our technical capability overview for this specific steel component:

Application Scenarios (Industrial Use Cases)

Due to its steel construction and high structural rigidity, this component is NOT for lightweight electronic devices. It excels in heavy industrial environments:

• Heavy-Duty CNC Machine Tools: Used as a spindle clamping block for high-power milling and turning centers to resist cutting forces and eliminate chattering.

• Precision Rotary Tables / Indexing Tables: Acts as a load-bearing bearing cartridge housing for high-precision 4th and 5th axes.

• Semiconductor Back-End Equipment: Used in heavy vacuum motion stages where thermal stability and dimensional integrity under vacuum are mandatory.

• Large-Scale Automation & Die Casting Tooling: Serves as heavy-load positioning frames for heavy-duty robotic end-effectors and stamping fixture bases.

Material Analysis: Why Steel instead of Aluminum?

Switching from aluminum to steel fundamentally changes the performance of this part.

• Superior Rigidity (Elastic Modulus): Steel is about 3 times stiffer than 6061 aluminum. This ensures zero microscopic deformation when the spindle operates under heavy torque, guaranteeing long-term machining accuracy.

• Thermal Stability: Aluminum has a high coefficient of thermal expansion (CTE). In high-speed spindle applications, heat generation can cause aluminum to expand, potentially seizing the inner bearing. Steel’s thermal stability maintains the fit clearance consistently.

• Thread Strength: The internal clamping screws on the inner wall will never strip or gall, even under repeated intense tightening, ensuring safety in heavy equipment.

• Weight Consideration: While steel is heavier (3x density of Al), this added mass becomes an advantage by damping vibrations and stabilizing the entire machine tool structure.

Tolerance Capabilities (Quality Assurance)

We guarantee tight and consistent tolerances to ensure seamless assembly with your spindle motors or bearings:

1. Internal Precision Bore: Achievable H7 or H6 tolerance grade with a surface roughness of Ra 0.8 – 1.6 µm via precision boring.

2. Geometric Tolerances:

   • Perpendicularity: ≤ 0.02 mm (between the bottom mounting face and the central bore axis).

   • Positional Accuracy: ≤ ±0.02 mm for all bottom mounting holes and slotted holes.

3. Slot Alignment: The adjustable elongated slot is machined to ensure strictly parallel guidance during installation.

Manufacturing Challenges (What makes this part complex?)

We highlight these challenges to demonstrate our advanced machining expertise to global clients:

1. Extreme Weight & Fixturing: Because it is a massive solid steel block, the workpiece can weigh over 15~25 kg. This requires extremely robust custom soft-jaws or vacuum fixtures to prevent the part from shifting during multi-face machining.

2. Synchronous Multi-Directional Tapping: The internal threads on the curved inner wall require careful setup to avoid tap breakage. We typically achieve this using right-angle milling heads or 5-axis simultaneous machining to guarantee perfect angular orientation.

3. Deep Boring & Chip Evacuation: Precision boring through thick steel generates long, razor-sharp metal chips. We use high-pressure through-spindle coolant and optimal feed rates to avoid scratching the finished H7 precision bore.

4. Stress Relief: For high-precision steel parts, we strongly recommend performing a stress-relieving heat treatment (before finish machining) to prevent geometric distortion over time.

Frequently Asked Questions (FAQ)

Q1: Do you provide samples for this steel housing?
A: Yes, we accept sample orders (MOQ = 1 piece) for prototyping to verify the fit, assembly, and mounting slot adjustments before mass production.

Q2: What is the best anti-rust treatment for this part to keep it looking similar to the silver aluminum version?
A: We recommend Electroless Nickel Plating. It provides an even, bright silver metallic finish and offers excellent corrosion protection in humid factory environments. If you prefer a black finish for the machine interior, Black Oxide is a cost-effective alternative.

Q3: What drawings or files do you need to start the quotation?
A: We accept 3D CAD files (STEP/IGES) and 2D engineering drawings (PDF/DWG). Please clearly mark the critical tolerance requirements (especially for the central bore and adjustment slots) on the drawing.

Q4: Can you machine this part from my specific steel grade, like 4140 or 1045?
A: Absolutely. We have extensive experience machining 45# (1045), 42CrMo (4140), and tool steels. Please specify your required material standard and hardness (HRC) on the drawing.

Q5: Since this is solid steel, is the lead time longer than aluminum?
A: Yes. Steel is harder and wears down cutting tools faster than aluminum. The machining cycle time is roughly 2 to 3 times longer than aluminum. Please plan for an additional 5-7 working days compared to aluminum parts.
