Description

Product Overview (Engaging Hook & EEAT)

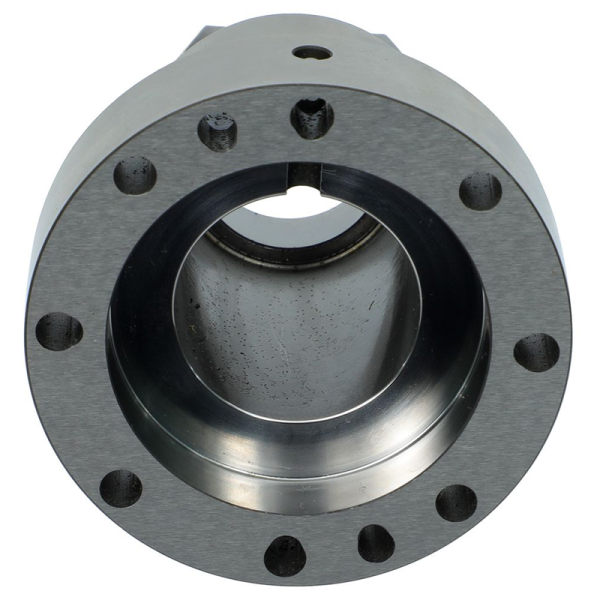

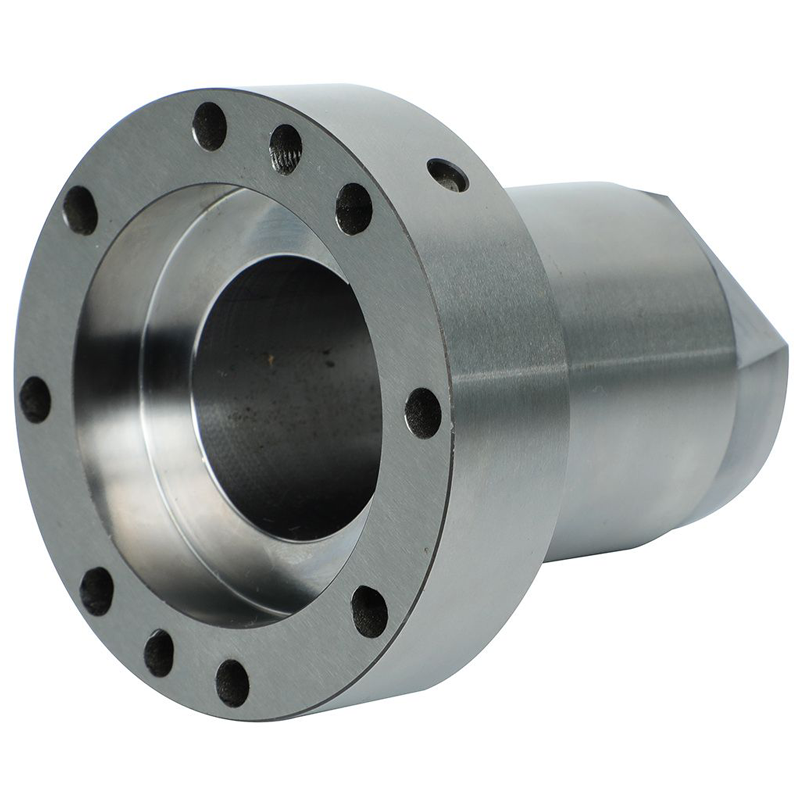

In high-precision automation and spindle drive systems, the transmission of torque and the rigidity of the clamping mechanism are non-negotiable. Our CNC Turned Clamping Sleeve with Mounting Flange is engineered to bridge this gap.
Manufactured exclusively on advanced 5-axis CNC lathes and milling centers, this component serves as the critical structural bridge between your motor/spindle shaft and the outer housing. Whether you are building a custom servo reducer, a high-speed collet chuck, or a specialized automation fixture, this flange sleeve ensures absolute concentricity, zero backlash, and long-term structural integrity.

(Why this works for Google: Uses natural industry terms like “torque transmission,” “rigidity,” and “concentricity,” matching what B2B engineers are actually searching for.)

CNC Machining Specifications & Capabilities Table

(This table is critical for Google’s “Rich Snippet” algorithms and helps buyers instantly match their RFQ.)

Why This Part Demands Premium CNC Services

(This section highlights your processing advantages)

🔩 Material Analysis & Selection

This clamping sleeve faces immense mechanical stress. We typically recommend:

• For High-Wear Clamping: SKD11 / D2 Tool Steel. After vacuum heat treatment to HRC 58-62, it provides extreme surface hardness to resist galling and wear from repetitive shaft insertion.

• For High-Torque Transmission: 42CrMo / 4140 Alloy Steel. Quenched and tempered to HRC 28-32, offering excellent toughness and structural integrity to prevent fracture under high radial loads.

Tight Tolerance & Geometric Compliance

The critical success factor of this part is concentricity.

• The Internal Bore must be machined to a precision fit (H7 tolerance) to perfectly mate with the motor/gear shaft.

• The Internal Keyway (as seen in our part) requires precise symmetrical alignment relative to the shaft bore to avoid offset torque.

• Our CNC turning centers guarantee concentricity between the outer flange and inner bore within 0.01mm, ensuring smooth, vibration-free rotation.

Manufacturing Challenges & Our Solutions

• Challenge 1: Deformation during Heat Treatment.

  • Solution: We use a Vacuum Furnace with controlled cooling curves and perform a “Rough Machining -> Heat Treat -> Precision Finish Grinding/Turning” process to eliminate thermal distortion.

• Challenge 2: Internal Keyway alignment.

  • Solution: We utilize 4-axis CNC mills with custom fixtures to clamp the part using the precision-bored ID, ensuring the keyway slot is perfectly parallel to the central axis.

Typical Application Scenarios (Where is it used?)

(Semantic clustering helps Google understand the context of your product)

Frequently Asked Questions (FAQ)

(Adding FAQs increases dwell time and targets “People Also Ask” snippets on Google)

Q1: What is the typical tolerance for the inner bore and keyway?
A: For standard orders, we hold the inner bore to ±0.01mm (H7 fit). For high-precision servo applications, we can achieve ±0.005mm with a surface finish of Ra 0.8 or better. The keyway position is held within ±0.02mm.

Q2: Can you use my material or do you supply the SKD11 steel?
A: Both are acceptable. We have a stable supply chain for high-grade SKD11, 42CrMo, and 4140 steel in various diameters. If you supply the raw material, we can proceed with your specific lot.

Q3: How do you ensure the circularity of the inner hole doesn’t deform during hardening?
A: We use a two-stage approach. Firstly, we leave 0.3mm – 0.5mm of stock on the ID before heat treatment. After vacuum hardening to HRC 58-62, we perform high-precision ID grinding on our CNC internal grinders to eliminate distortion and achieve perfect circularity.

Q4: What is your shipping time for a prototype batch (10-20 pcs)?
A: For a standard complexity flange sleeve, we typically deliver prototypes within 7 to 12 working days, depending on whether surface treatment (like black oxide or hard chrome plating) is required.

Q5: Do you offer assembly services for the bearings or seals?
A: Yes, we offer value-added assembly services. We can press-fit bearings, install O-rings, or apply specific grease/sealants before shipping to simplify your final production line.
