Description

Product Overview

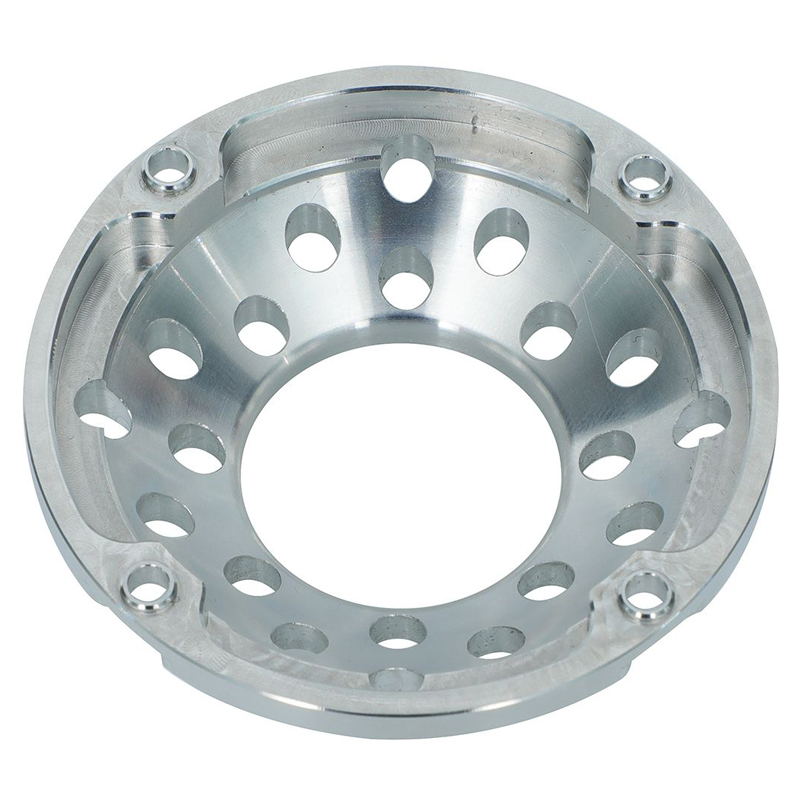

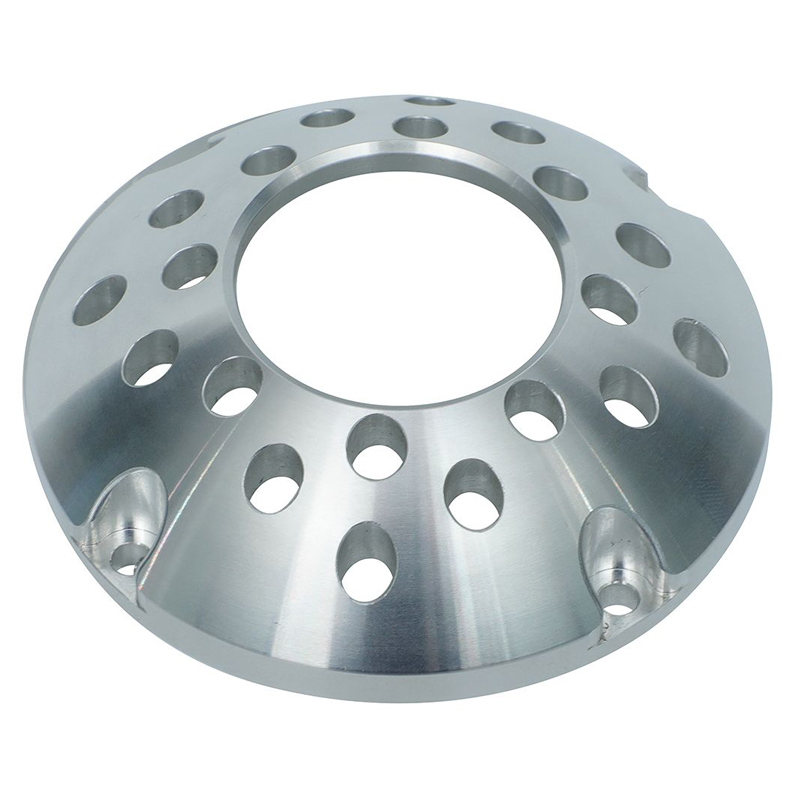

Engineered for high-performance rotating machinery, this custom CNC machined end cover features a unique hemispherical/tapered profile, a large central bore for shaft pass-through, a precisely machined 4-hole deep-recessed bolt pattern, and a symmetrically distributed multi-hole structure. Designed and manufactured by our advanced CNC machining services, this component excels in applications where weight reduction, heat dissipation, and structural integrity are critical.

Our engineering team specializes in transforming complex CAD designs into high-precision end covers, ensuring optimal fitment and durability in demanding industrial environments.

CNC Machining Services Parameter Table

Application Scenarios

Due to its multi-hole design and domed profile, this end cover is primarily used in:

1. Rotating Equipment & Motors: As an end cover or protective cap for high-speed motors, gearboxes, and servo drives to shield internal bearings and encoders from external contaminants.

2. Industrial Automation & Robotics: Used as a mounting adapter or protective housing for robotic arm joints and rotary tables.

3. Fluid & Vacuum Systems: As a custom flange cover where the center hole acts as a pass-through for shafts or fluid channels, and the side holes facilitate pressure equalization or cooling.

4. Medical & Scientific Instruments: Utilized in precision analytical equipment or centrifuge rotors requiring lightweight yet rigid structural components.

Material Analysis

Recommended Grade: Aluminum 6061-T6
The ideal choice for this specific part due to its exceptional machinability, excellent corrosion resistance, and good fatigue strength. It allows for tight tolerances while keeping the part lightweight.

Advanced Grade: Aluminum 7075-T6
If the application involves extreme high-speed rotation or heavy loads, 7075-T6 is recommended. It provides high strength similar to steel but at 1/3 of the weight.

Tolerance Capabilities

Our CNC machining services guarantee precise tolerances to meet strict assembly requirements:

• Standard Machining Tolerance: ±0.05mm

• High-Precision Tolerance: ±0.01mm

• Concentricity/Coaxiality: ≤0.02mm (Crucial for the multi-hole patterns relative to the central bore).

• Surface Flatness: ≤0.02mm

• Edge Quality: Smooth, deburred edges (R0.2mm or specified) to prevent stress concentration and scratches during installation.

Manufacturing Difficulties & Solutions

This complex part poses specific machining challenges, which our experienced engineering team effectively solves:

1. The Multi-Hole Structure & Internal Stress:

   • Challenge: Removing material (holes) unevenly can warp the aluminum due to internal stress release, causing out-of-tolerance distortion.

   • Solution: We use a stress-relief heat treatment process before final precision machining, followed by multi-step roughing and finishing passes to ensure the part remains perfectly flat.

2. Deep-Recessed 4-Bolt Holes:

   • Challenge: Machining deep counterbores requires extended-reach tooling, which is prone to vibration and chatter.

   • Solution: We utilize high-rigidity 5-axis CNC centers with specialty long-reach tool holders and adaptive toolpaths to guarantee perfect hole alignment and surface finish without chatter.

3. Hemispherical/Tapered Outer Profile:

   • Challenge: Machining a complex 3D curve demands high-speed CNC interpolation to avoid stepping marks.

   • Solution: We use simultaneous 5-axis CNC milling to create a smooth, continuous surface finish, eliminating the need for manual hand-polishing and ensuring perfect concentricity.

Frequently Asked Questions (FAQ)

Q1: Can you customize the number of holes or adjust the size of the central bore?
A: Absolutely. This design is fully customizable. We accept 2D drawings (PDF/DWG) or 3D models (STEP/IGES). Our engineers will conduct a DFM (Design for Manufacturing) review and suggest the optimal hole pattern for your specific load and speed requirements.

Q2: What surface finish is best for a rotating end cover?
A: For aluminum, Clear Anodizing (Type II) is the industry standard as it provides excellent corrosion protection and a clean, professional appearance. If this part is subject to abrasive wear, we recommend Hard Anodizing (Type III) for a much harder surface layer.

Q3: How do you ensure the concentricity between the multi-hole pattern and the central bore?
A: We machine all holes and the central bore from a single setup on the same CNC machine. This eliminates cumulative clamping errors. We guarantee a concentricity of ≤0.02mm and verify it using a high-precision CMM during final inspection.

Q4: What is your MOQ (Minimum Order Quantity)?
A: We have no MOQ. We are happy to support you from a single prototype (1 piece) to large-scale mass production (10,000+ pieces), offering competitive volume discount pricing.

Q5: How can I get a quote?
A: Please send your 3D files (STEP/IGES) or 2D drawings to us. Our engineering team will reply with a detailed quotation, including pricing, lead time, and DFM feedback within 24 hours.

Ready to start your custom machining project? Contact our engineering team today for a free DFM review and instant quote!
