Product Overview

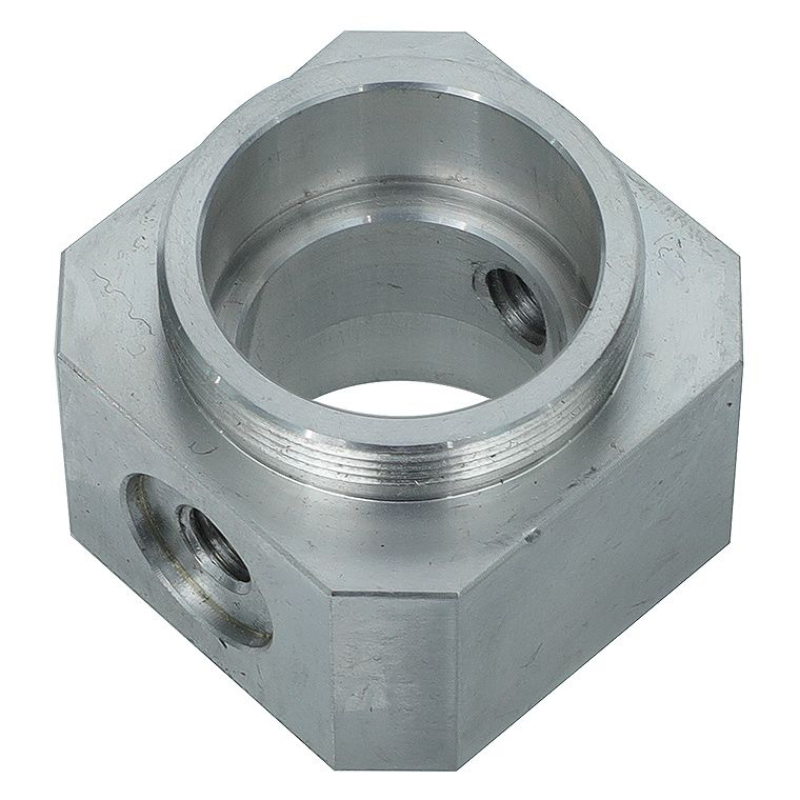

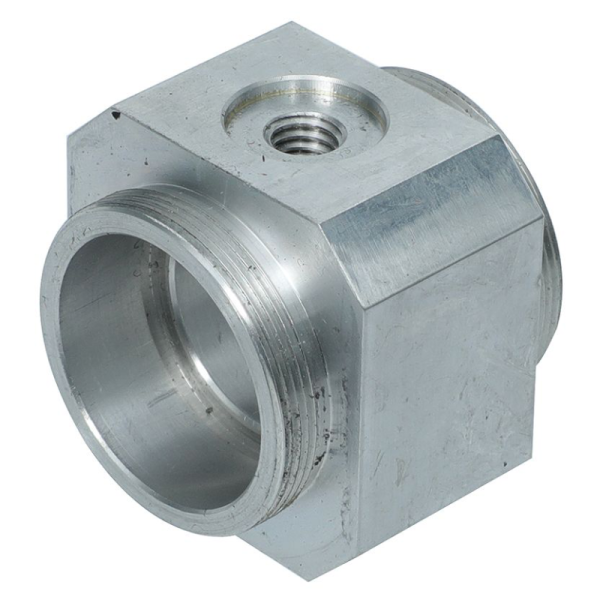

This precision-engineered CNC Machined Aluminum Hydraulic Valve Body serves as a robust inline manifold block for high-pressure fluid control systems. Designed with a distinctive hexagonal profile for easy wrench installation, this component features a large external male thread for the primary fluid connection and dual internal female threaded ports (top and side) for pressure gauge integration or sensor mounting.

Whether you are building hydraulic power units, testing systems, or mobile machinery, this custom-machined manifold block delivers leak-proof performance, tight tolerance control, and exceptional durability under dynamic pressure loads.

Key Features & Technical Specifications

• Primary Port: Large external male thread (customizable to BSPP, NPT, or Metric threads) for main pipeline connection.

• Auxiliary Ports: Dual internal female threaded ports (side and top) for pressure gauges, sensors, or pilot lines.

• Drive Style: Hexagonal outer profile designed for standard wrench tightening and torque control.

• Surface Finish: Natural aluminum finish or anodized (Clear / Black) upon request.

• 100% Quality Check: Dimensional inspection and thread go/no-go gauging before shipment.

CNC Machining Services Parameter Table

(Note: This table demonstrates our manufacturing capabilities for this specific part and similar custom orders.)

Application Scenarios

This hydraulic valve body is widely utilized across various heavy-duty industrial sectors:

• Construction & Mobile Machinery: Used in hydraulic control blocks for excavators, forklifts, and tractor loaders to monitor system pressure via the gauge ports.

• Industrial Hydraulic Power Units (HPUs): Serves as a manifold adapter in hydraulic oil circulation systems.

• Automotive & Test Equipment: High-precision pressure testing stands and motor sports fluid distribution.

• Oil & Gas / Pneumatic Systems: Robust fittings for high-pressure gas or fluid sampling.

  Explore our full range of Fluid Power Parts (Hydraulic & Pneumatic) for more manifold and valve components.

Material Analysis

For this specific part, we highly recommend Aluminum Alloy 6061-T6 for its excellent balance of performance and cost.

• Aluminum 6061-T6: Superior machinability, moderate strength (Yield Strength: ~276 MPa), excellent corrosion resistance, and lightweight. Ideal for medium-to-high pressure hydraulic systems (up to 20 MPa / 3000 PSI).

• Aluminum 7075-T6 (Alternative): Used for extremely high-pressure applications (over 35 MPa), offering aerospace-grade strength, though slightly less weldable.

• Stainless Steel 304/316: Selected for highly corrosive environments (e.g., marine, chemical) or oil-free pneumatic applications.

Precision Tolerance & Quality Control

Our CNC machining service guarantees meticulous control over every critical dimension:

• Thread Fit Tolerance: Strictly controlled to Class 6H (Internal) and Class 6g (External) for Metric threads, or Class 2B/2A for NPT standards, ensuring a perfect leak-free seal with mating fittings.

• Concentricity: The central axes of the male thread and the internal bore are maintained within 0.03mm TIR (Total Indicator Reading) to ensure fluid flows smoothly without eccentric wear.

• Surface Finish: The sealing faces (where O-rings sit) are machined to Ra 0.8μm or less, minimizing friction and preventing O-ring damage.

Manufacturing Challenges & Our Solutions

Fabricating this specific hexagonal valve body involves several engineering complexities:

• Challenge 1: Concentricity between Outer Thread and Inner Step. If the outer male thread is not perfectly concentric with the inner sealing face, it will leak when tightened.

  • Our Solution: We machine both the outer thread and inner bore in the same clamping setup on a CNC turning center, eliminating repositioning errors.

• Challenge 2: Cross-drilling Intersecting Ports. The side female threaded port must intersect the main central flow channel smoothly.

  • Our Solution: Our 4-axis milling center precisely deburrs the intersection to prevent any aluminum chips from entering the hydraulic system, ensuring clean fluid flow.

• Challenge 3: Preventing Hexagon Deformation. Tightening forces during wrench application can distort the hex profile.

  • Our Solution: We use high-quality extruded aluminum bar stock and apply optimal cutting speeds and coolants to maintain the hexagon’s sharp, defined edges and structural integrity.

Frequently Asked Questions (FAQ)

Q1: Do you offer this hydraulic valve body as a standard item in stock?
A: No, we specialize in custom CNC machining per your drawings. However, we have produced thousands of similar units, so our engineers can quickly optimize your design for mass production.

Q2: What is the minimum order quantity (MOQ) for a custom prototype?
A: Our MOQ starts at just 1 piece. We welcome 3D printed rapid prototypes or single-piece CNC machined samples for your testing and design verification.

Q3: Can you provide specific material test reports and dimensional inspection reports?
A: Absolutely. We provide Material Test Reports (MTR), RoHS/REACH compliance, and a full Dimensional Inspection Report (CMM) with every mass-production order.

Q4: How do you ensure the threads are leak-free?
A: We use international standard Go/No-Go thread gauges for 100% inspection. For specific hydraulic applications, we can also perform hydrostatic pressure testing (burst testing) before shipping upon your request.

Q5: How should I send my drawing to start a quote?
A: Please send your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files to our engineering team. We accept files for all major CAD software, including SolidWorks, AutoCAD, and NX.
