1. Product Overview

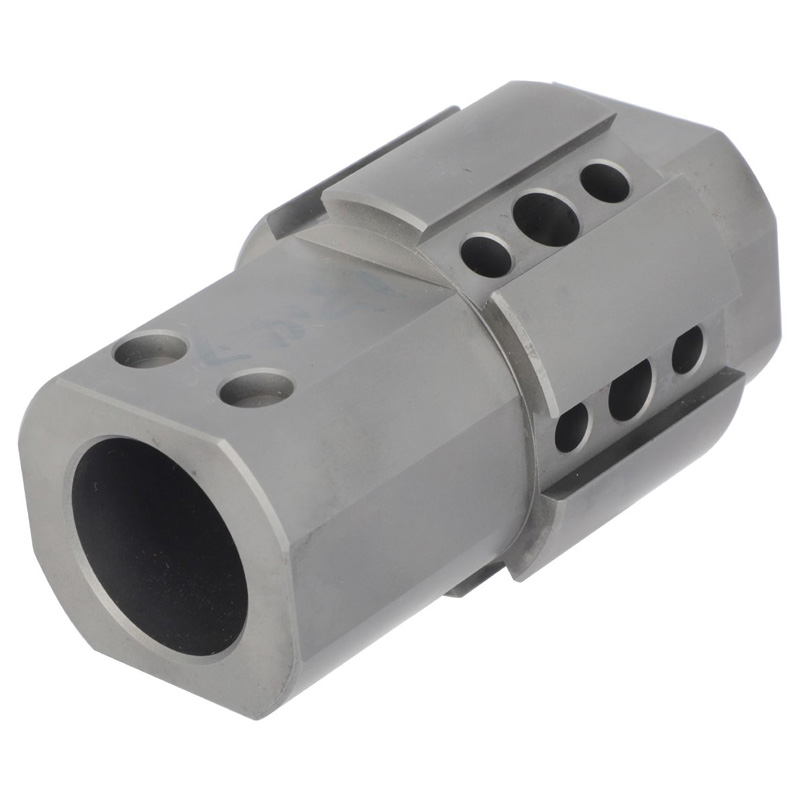

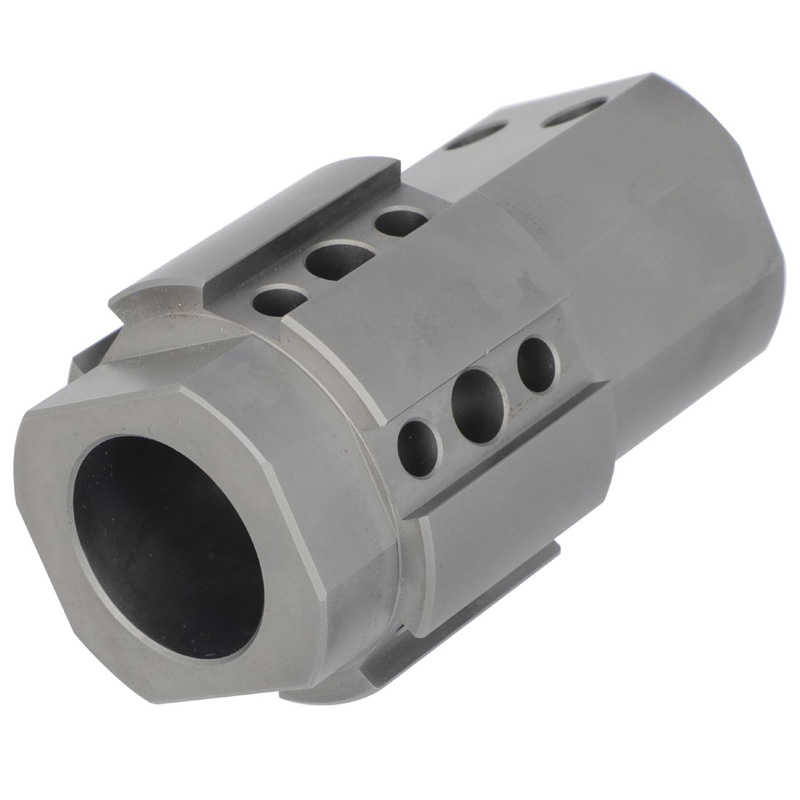

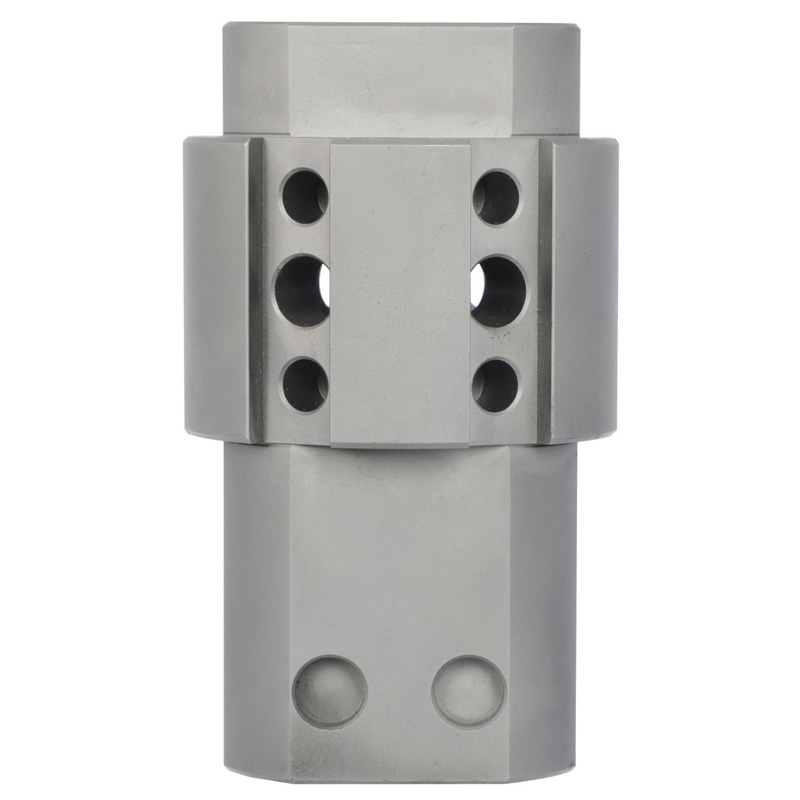

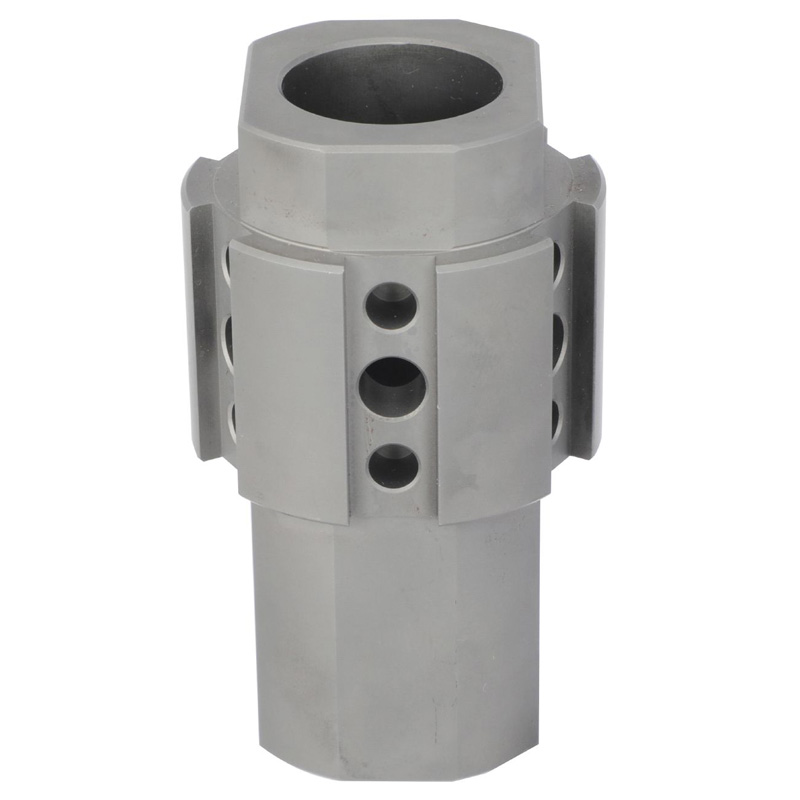

This robust sliding sleeve housing is a critical pressure-bearing component utilized in oilfield downhole completion tools, sliding sleeve valves, and hydraulic fracturing equipment. Machined from solid alloy steel billets, the housing features a large internal through-bore and intricate multi-port cross-drilled holes for precise fluid circulation and pressure balance. The external hexagonal profile is designed for high-torque wrench handling during downhole assembly, while the prominent external guide rails (keys) ensure exact alignment and smooth sliding movement with internal pistons or shifting tools.

We manufacture these components strictly per customer-provided engineering drawings, ensuring full compliance with the most demanding API (American Petroleum Institute) and NACE (National Association of Corrosion Engineers) industry standards.

2. CNC Machining Services Technical Specifications

At our facility, we utilize high-performance 5-axis CNC machines and Swiss-type lathes to manage the complex geometries of this housing. The table below outlines our standard manufacturing capabilities for this specific part:

3. Material Analysis & Selection

Selecting the correct material for a downhole sliding sleeve housing is directly tied to the operating environment (depth, pressure, temperature, and H₂S corrosion levels):

• 4140 / 4340 Alloy Steel: (The most common choice). Offers an excellent balance of high tensile strength, impact resistance, and high fatigue endurance. Ideal for standard deep-well high-pressure applications (up to 15,000 PSI).

• 17-4PH Stainless Steel (Precipitation Hardened): Specifically chosen for sour gas wells. It delivers exceptional resistance to hydrogen sulfide (H₂S) stress corrosion cracking, making it mandatory for H₂S-heavy extraction environments.

• 6061-T6 / 7075-T6 Aluminum: While not recommended for deep downhole high-pressure applications due to low hardness, we produce these in aluminum if the part is intended for surface hydraulic circuits, testing rigs, or lightweight control manifolds. If your drawing specifies aluminum, we can expertly machine it.

4. Manufacturing Challenges & Our Solutions (Why Choose Us)

Making a downhole sliding sleeve is notoriously difficult. Here is how we overcome these engineering hurdles:

• Challenge 1: Deep Hole Cross-Drilling

  • The Issue: Intersecting deep drill holes (over 3x the diameter in depth) within a thick wall tend to cause severe burrs at the intersection, which can block fluid flow or jam the internal sliding sleeve.

  • Our Solution: We employ specialized gun-drilling techniques combined with proprietary deburring tools and high-pressure coolant flushing to ensure smooth, burr-free internal channels.

• Challenge 2: External Guide Key Misalignment

  • The Issue: If the external guide rails are slightly off-angle relative to the internal bore, the entire sliding sleeve will jam inside the outer casing.

  • Our Solution: The machining of the guide keys is performed in a single setup using a 5-axis CNC machine to ensure absolute concentricity and geometric parallelism between the internal bore, the cross-holes, and the outer rails.

• Challenge 3: Post Heat-Treatment Distortion

  • The Issue: 4140 steel often undergoes quenching and tempering. This thermal process can stress-relieve the metal, causing the circular shape to ovalize.

  • Our Solution: We finish machine the final critical bores and sealing faces after the heat-treatment process, using high-rigidity CNC equipment to maintain strict cylindrical tolerances of +0.005mm.

5. Application Scenarios

Due to its rugged design, this CNC machined housing is widely used in:

• Oil & Gas Well Completion Tools: As the main body of sliding sleeves for multistage fracturing operations.

• Downhole Safety Valves: As a pressure-containing safety housing for blowout preventers (BOPs) or subsurface safety valves (SSSVs).

• Heavy-Duty Industrial Hydraulics: As a high-pressure valve body for large-scale mining equipment, tunneling machines, and injection molding hydraulic stations. (Note: It is not limited to downhole; we machine it as per your intended application).

6. FAQ (Frequently Asked Questions)

Q1: Do you have an API certification?
A: While our factory possesses ISO 9001:2015 and certain specific NACE MR0175 material processing certifications, API product certification usually requires specific customers’ brand licensing. We provide comprehensive Material Test Reports (MTR), Charpy Impact Reports, and NDT reports, which are entirely acceptable for most international oilfield engineering contractors.

Q2: Can you machine this housing if I only have a sample part and no drawing?
A: Yes. We offer reverse engineering services using 3D scanning and CMM verification. We will create a 3D CAD model for your approval before manufacturing.

Q3: What is the lead time for a prototype batch?
A: For 1 to 5 prototype units, the lead time is typically 15 to 20 working days. For mass production (500+ units), we ensure delivery within 30–45 working days, depending on the heat treatment cycle.

Q4: What’s your MOQ for this oilfield part?
A: We do not enforce a strict MOQ for our CNC services. We accept 1-piece orders for R&D, engineering evaluation, or urgent field replacement parts, though pricing will reflect the single-unit setup time.

7. Real Case Study: Reliable Frac Sleeve Production for a North American Oil Operator

Client Requirement: A US-based oilfield tools company urgently needed a 300-piece order of these Sliding Sleeve Housings for a shale gas fracking project. Material required: 4140 Alloy Steel with a Rockwell hardness of 30-34 HRC and a 0.0002″ (0.005mm) concentricity tolerance between the inner bore and outer hexagonal keys.

Our Execution:

• Week 1: We sourced certified 4140 seamless steel billets with mill traceability.

• Week 2: Executed the rough turning, 5-axis milling of guide keys, and deep cross-drilling.

• Week 3: Outsourced precise vacuum heat treatment to ensure consistent 32 HRC. This was followed by a “finish turning” cycle to correct any thermal distortion.

• Week 4: 100% CMM dimensional inspection and MPI (Magnetic Particle Inspection) to verify zero micro-cracks.

Result: The 300 units were shipped out in exactly 31 working days. The client’s field engineers reported that our machined housings achieved a 20% faster sliding friction test pass rate compared to their previous supplier, significantly reducing their on-site installation time.
