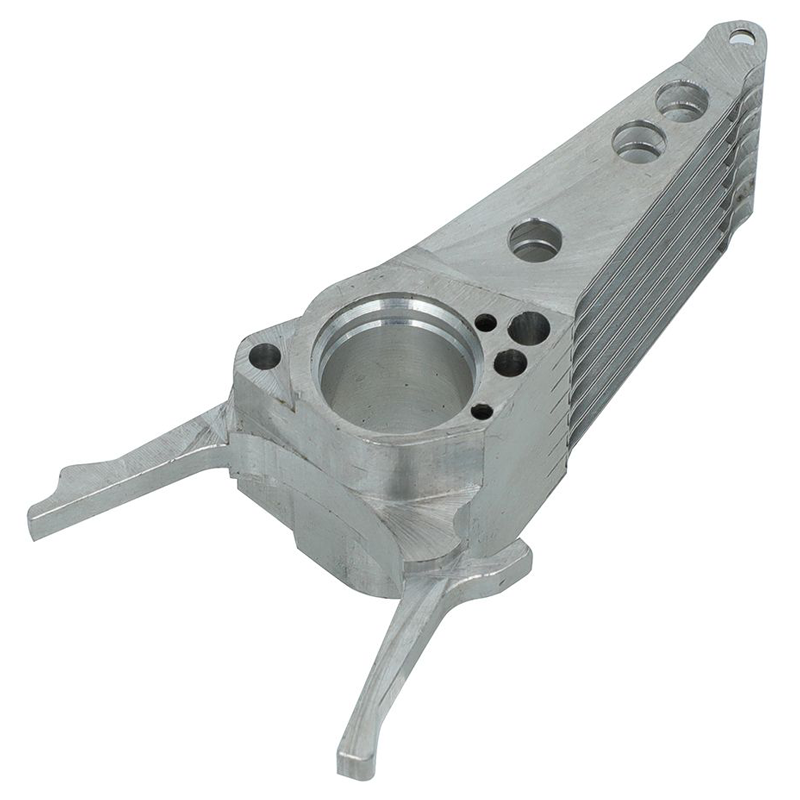

Engineered for extreme performance, this 5-Axis CNC Lightweight Motor Bracket with Cooling Fins bridges the gap between aerospace-grade precision and high-power electric motor demands. Unlike traditional cast brackets, this unit is milled entirely from a solid billet of high-strength aluminum, offering superior structural rigidity, thermal dissipation, and substantial weight reduction. It is the preferred choice for high-performance electric motorcycles, mid-drive motor systems, and advanced robot joint assemblies.

1. Application Scenarios (Where It Shines)

This bracket is specifically designed to handle heavy radial and axial loads while managing heat. Its primary application scenarios include:

• High-Performance Electric Motorcycles (E-Motorcycles): Used as a mid-drive motor support and bearing housing. The integrated fins dissipate the intense heat generated by high-torque controllers and motors during stop-and-go city riding or off-road racing.

• Power Transmission Systems: Acts as an actuator bracket or linkage support in high-speed automotive drivelines.

• Advanced Robotics and Joints: Ideal for heavy-load robotic arms where weight reduction and precision bearing alignment are critical for smooth motion.

• Aerospace Ground Support: Suitable for precision actuator components where weight-to-strength ratio is vital.

2. Material Analysis (Why Aluminum Alloys?)

We recommend 6061-T6 or 7075-T6 Aluminum Alloy for this component.

• 6061-T6 Aluminum: An excellent all-rounder. It offers good machinability, high thermal conductivity (crucial for the cooling fins), and superior corrosion resistance. Ideal for standard E-Motorcycle usage.

• 7075-T6 Aluminum: If your application demands maximum mechanical strength and fatigue resistance (comparable to many steels but at 1/3 the weight), 7075 is the ultimate choice. It is widely used in aerospace and professional racing, though it requires specialized cutting tools during the CNC process to avoid work hardening.

3. CNC Machining Services Specifications (Parameter Table)

To meet Google’s preference for structured data, here is the detailed technical capability for this custom part:

4. Tolerance Capability (Precision You Can Count On)

In high-speed power transmission, even a 0.02mm deviation in the bearing seat will cause severe vibration, increased friction, and early component failure. Our capabilities ensure:

• Ultra-Precise Bearing Seat: We utilize high-speed precision boring to achieve a roundness and cylindricity of within 0.005mm, ensuring a perfect press-fit for rolling bearings (skate bearings / deep groove ball bearings).

• Positional Accuracy: The multi-hole mounting pattern on the face is machined via a single 5-axis setup, guaranteeing perfect positional accuracy between the claw arms and the central shaft to prevent binding during assembly.

5. Manufacturing Difficulties (Why Custom Molds Aren’t Enough)

Producing this lightweight bracket is not a simple task. Here are the engineering hurdles we overcome in our workshop:

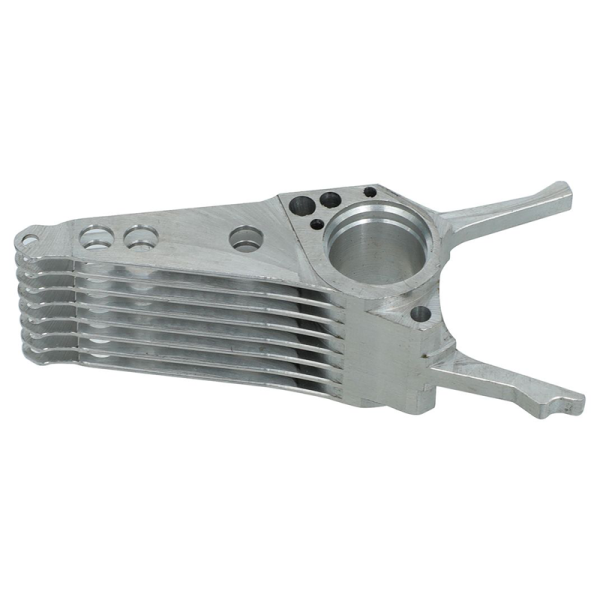

1. Thin-Wall Deflection Control: The deep, parallel cooling fins on the left side create a very thin-walled structure. During roughing, excessive heat or cutting pressure causes the aluminum to distort (micro-bending). We use specific high-speed trochoidal milling strategies to minimize cutting force and maintain the straightness of the fins.

2. 5-Axis Under-Cutting: The fork-like locking arms require 5-axis simultaneous machining to reach the inner surfaces and ensure the angles are identical on both sides. A standard 3-axis machine simply cannot perform this without secondary, inaccurate set-ups.

3. Vibration-Free Boring: The bearing hole runs deep through the central boss. Achieving micro-mirror finish (Ra < 0.8) on the internal bore requires tuned damping tooling and optimized feed rates to eliminate chatter marks.

6. Frequently Asked Questions (FAQ)

Q1: Is this part suitable for cast iron or steel motors?
A: This bracket is optimized for aluminum-bodied electric motors. Due to its high precision, we can produce it in titanium or stainless steel upon request, but the lightweight advantage will be reduced. It is not recommended for heavy cast-iron engines unless modified for specific bolt patterns.

Q2: Do you offer surface treatments like anodizing?
A: Yes. We offer clear anodizing (Type II) to protect the aluminum from oxidation, or hard anodizing (Type III) for increased scratch resistance. However, for racing applications, many clients prefer “as-machined” bare metal to maximize thermal conductivity of the cooling fins.

Q3: What is your inspection process for this part?
A: We utilize a 100% inspection protocol. All critical dimensions (bearing bore, hole positions) are verified using CMM (Coordinate Measuring Machine) and Mitutoyo Digital Height Gauges. We provide a full quality inspection report (FAI) with every shipment.

Q4: Do you provide assembly service (e.g., pressing in the bearings)?
A: Yes, we offer value-added assembly services. We can press in the bearings, seal rings, and install the sensor plates at the designated holes, delivering a ready-to-install sub-assembly to your production line.

Q5: What is the typical MOQ for this custom design?
A: We are highly flexible. For a prototype verification, we accept MOQ 1 piece. For mass production CNC machining, we recommend 100+ pieces to optimize cost efficiency, but we are happy to negotiate small batches for custom testing.

Order Your Custom Motor Bracket Today

Whether you are a race team looking for a lightweight component or a motorcycle OEM in need of reliable mass production, our 5-axis workshop is ready to bring your CAD drawing to life. Contact us with your 3D model or 2D blueprint for a free cost analysis and DFM (Design for Manufacturability) feedback.
