Precision CNC Machined POM U-Shaped Clamping Slider with Central Threaded Hole for Guide Rail Adjustment
Description
Product Overview:

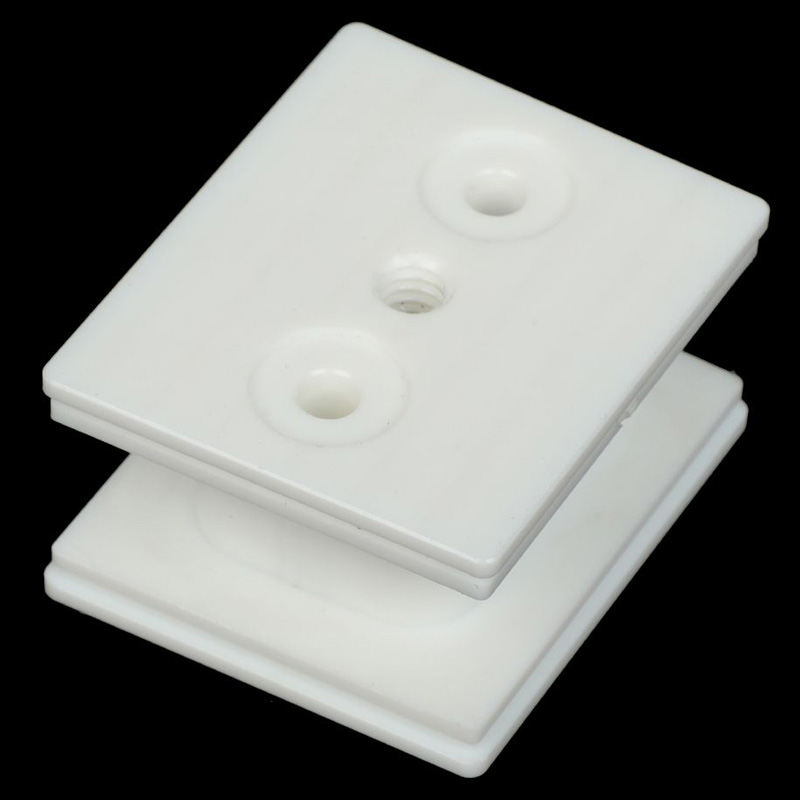

This custom CNC machined component is a high-precision U-shaped plastic sliding clamp block, engineered specifically for industrial automation guide rail systems and linear motion assemblies. Precision machined from premium-grade white Acetal (POM/Delrin), this part combines the functions of a wear-resistant guide slide and an adjustable locking mechanism, ensuring smooth movement and secure positioning in demanding automated environments.
Key Structural Features & Long-Tail Keywords:
-

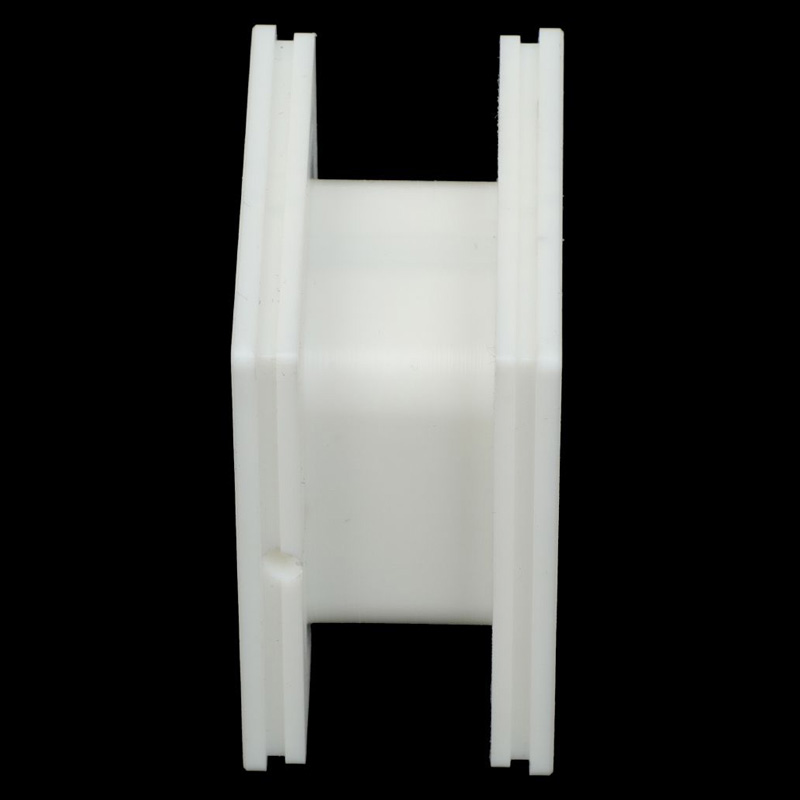

U-Shaped Dual-Flange Structure: The integrated U-profile slide bracket effectively wraps around standard linear guide rails, providing excellent lateral stability and preventing deviation during high-frequency reciprocating motion.
-

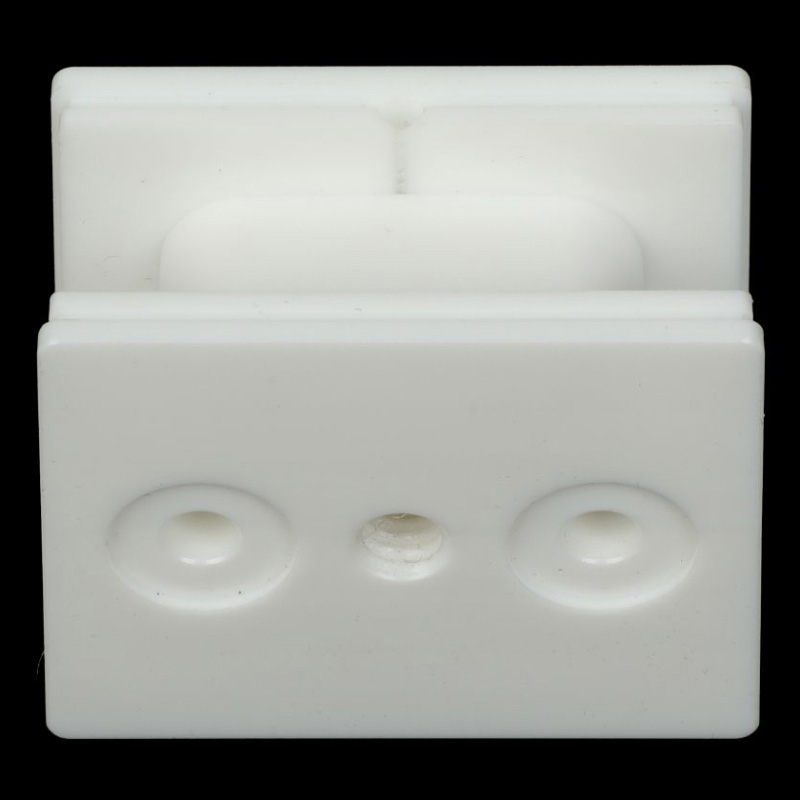

Central Tapped Threaded Port: The core feature is the center set-screw hole with internal threads. This adjustable clamping mechanism allows operators to fine-tune the friction, apply clamping pressure, or lock the block securely onto the rail via a grub screw (set screw), ensuring precise guide rail gap adjustment.
-

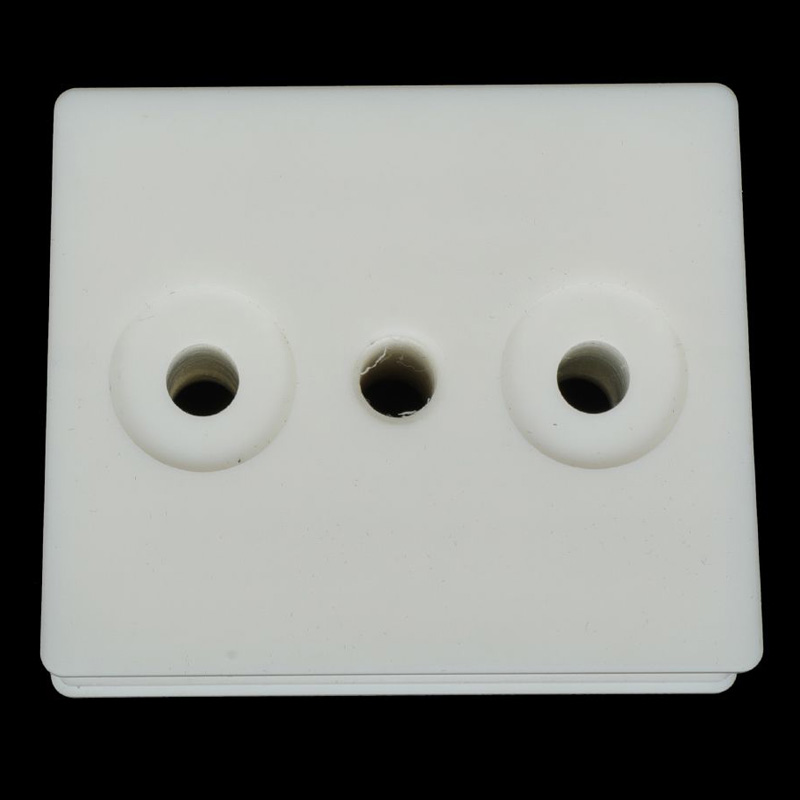

Countersunk Mounting Holes: The two side plates feature machined countersunk holes for flush mounting, allowing the block to be rigidly fastened to machine bases, aluminum extrusions, or actuator brackets using standard flat-head socket screws.
-
Precision CNC Machined Holes: All holes (including the machined internal threads) are produced directly via CNC milling, eliminating the need for metal inserts while ensuring high structural integrity and concentricity.
Material Advantage (Why POM?):
-
Excellent Thread Strength: POM possesses the rigidity required to hold machined internal threads without stripping, unlike softer plastics such as UHMW-PE.
-
Self-Lubricating & Wear-Resistant: Delrin ensures low friction coefficients, effectively reducing noise and preventing scratches on sensitive metal guide rails.
-
Dimensional Stability: Low moisture absorption ensures the clamping block maintains its tight tolerance even in changing industrial environments.
Typical Applications:
-
Industrial automation conveyor systems
-
Linear guide module sliding bearings
-
Packaging and 3C non-standard equipment
-
Robotics and gripper linear motion components
-
Wear liners and guide rails in woodworking machinery
📋 CNC Machining Services & Product Specification Table
| Parameter | Specification / Details |
|---|---|
| Material Options | POM (Polyoxymethylene / Delrin / Acetal) Alternative: UHMW-PE, MC Nylon, PEEK, PTFE (upon request) |
| Machining Process | CNC Milling (3-Axis, 4-Axis, 5-Axis) Secondary: CNC Turning, Drilling, Tapping |
| Standard Tolerance | ±0.01mm – ±0.05mm (Customizable tight tolerance up to ±0.005mm for critical fitting areas) |
| Surface Finish | Standard: As-machined (Fine milled, smooth surface) Optional: Polishing, Vapor Polishing, or Custom Color Tinting |
| Internal Thread Type | Custom Metric (e.g., M3, M4, M5, M6) or Imperial (e.g., #6-32, 1/4-20) tapped holes as per drawing |
| Mounting Holes | Precision CNC-machined countersunk holes with custom center-to-center distances |
| Machining Equipment | High-speed CNC Vertical Milling Centers, CNC Lathes, Tapping Machines |
| Minimum Order Quantity (MOQ) | 1 Piece (Prototype available) / 50-100 Pieces (Mass Production) |
| Lead Time | Samples: 3-5 working days Mass Production: 10-15 working days (depending on order quantity) |
| Quality Control (QC) | 100% Dimensional Inspection (CMM, Micrometer, Height Gauge), Thread Go/No-Go Gauges, Material Certificates |
| Drawing Formats | 2D: PDF, DWG / 3D: STEP, IGS, STP, SolidWorks, AutoCAD |
| Packaging | EPE foam wrap + Bubble film + Standard export wooden crate or sturdy carton (Avoids scratches and collisions) |
