Product Overview:
This high-precision fluid control valve assembly is a complete CNC-machined solution engineered for accurate flow regulation in hydraulic and pneumatic systems. Unlike standard valves, this assembly features a specialized spring-loaded plunger and indexing ring, providing multi-stage “click” feedback for precise, vibration-proof flow adjustment. Manufactured from 6061-T6 aluminum alloy with a hard anodized finish, it offers exceptional strength, lightweight performance, and superior corrosion resistance.

Key Structural Features & Components:

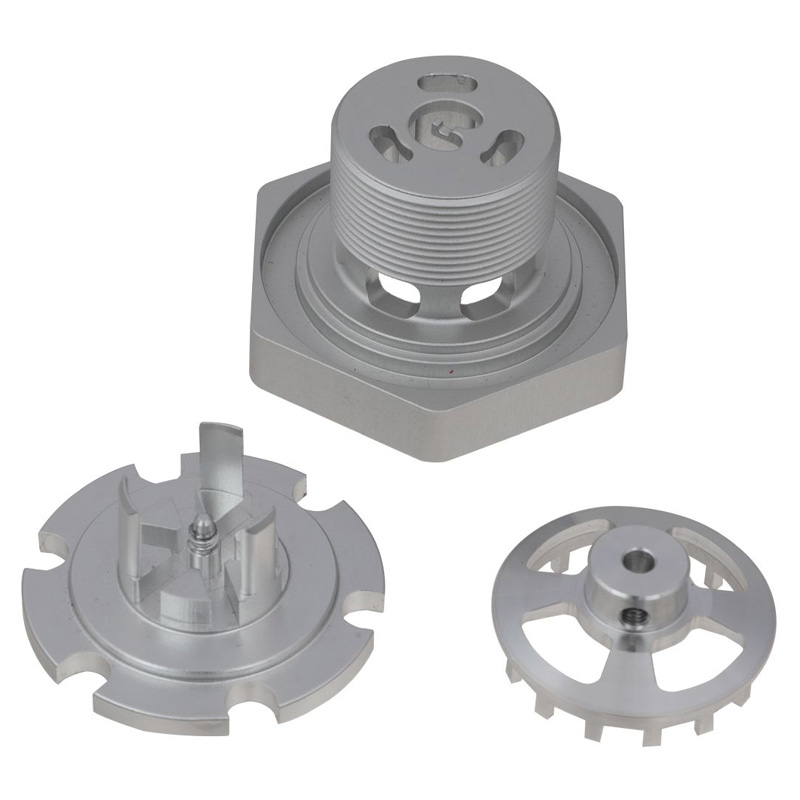

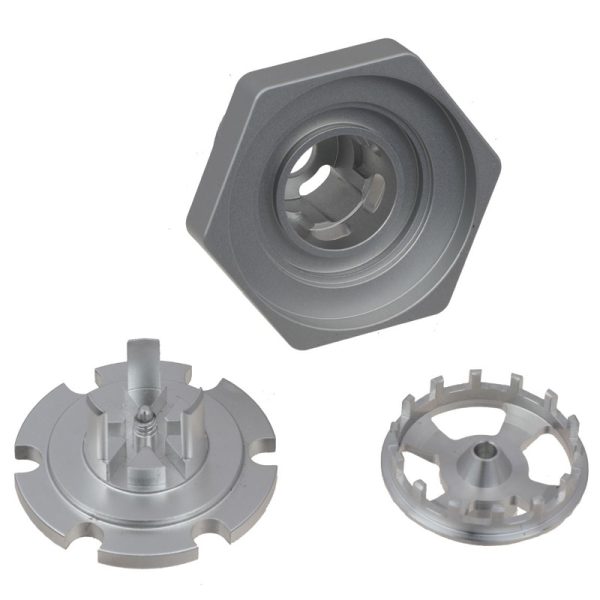

Based on the structural design, the assembly is composed of three precision-machined parts:

1. Threaded Cartridge Valve Housing (Hexagon Base):

   • Equipped with a standard hexagonal drive for easy wrench tightening and installation.

   • Large external threading for secure mounting into manifolds or hydraulic blocks.

   • Precision-machined internal hollowed windows and stepped bores to ensure smooth fluid channeling.

2. Adjustment Rotor with Spring-Loaded Plunger (Core Regulator):

   • Features a central guide boss and integrated fluid diversion veins.

   • Crucial Feature: Built-in spring and steel ball/plunger mechanism. When rotated, this spring-loaded pin engages with the ring below to create tactile “clicks”, preventing flow drift due to machine vibration.

3. Indexing Position Ring (Retaining & Guide Ring):

   • Designed with evenly spaced outer teeth (detent slots) that perfectly mate with the spring plunger.

   • Large internal cutouts serve as fluid passages while securely holding the adjustment rotor in position.

Material & Process Specifications:

• Raw Material: High-grade 6061-T6 Aluminum Alloy (offers an excellent strength-to-weight ratio).

• Machining Process: Full 5-axis CNC Turning & Milling (precision tolerance up to ±0.01mm for seamless fitting).

• Surface Treatment: Matte Hard Anodizing (provides wear resistance, protects against oxidation).

CNC Machining Service Capabilities & Technical Parameters:
(Added based on your request for CNC machining services)

Core Advantages:
✅ Vibration-Proof Safety: The distinct detent mechanism ensures your set flow rate will not drift in high-vibration environments.
✅ High Precision: Micro-level gap control ensures low internal leakage and stable flow regulation.
✅ Durability: Hard anodized aluminum surface is highly resistant to corrosion and chemical wear.
✅ Plug-and-Play Installation: Standard cartridge threading allows for quick, direct installation into valve blocks.

Wide Industrial Applications:

• Industrial Automation: Pneumatic synchronous cylinders, air pressure regulation.

• Construction Machinery: Hydraulic outrigger synchronization systems.

• Plastic & Die-Casting Machines: Coolant flow regulation, hydraulic proportional controls.

• New Energy Equipment: Cooling fluid distribution circuits and thermal management systems.

Customization & OEM Services:
We offer complete OEM/ODM services and can modify thread specifications, anodizing colors, tolerance levels, and sealing groove designs based on your specific system requirements. For detailed technical drawings or custom quotes, please feel free to contact our engineering team.
