Description

Product Overview

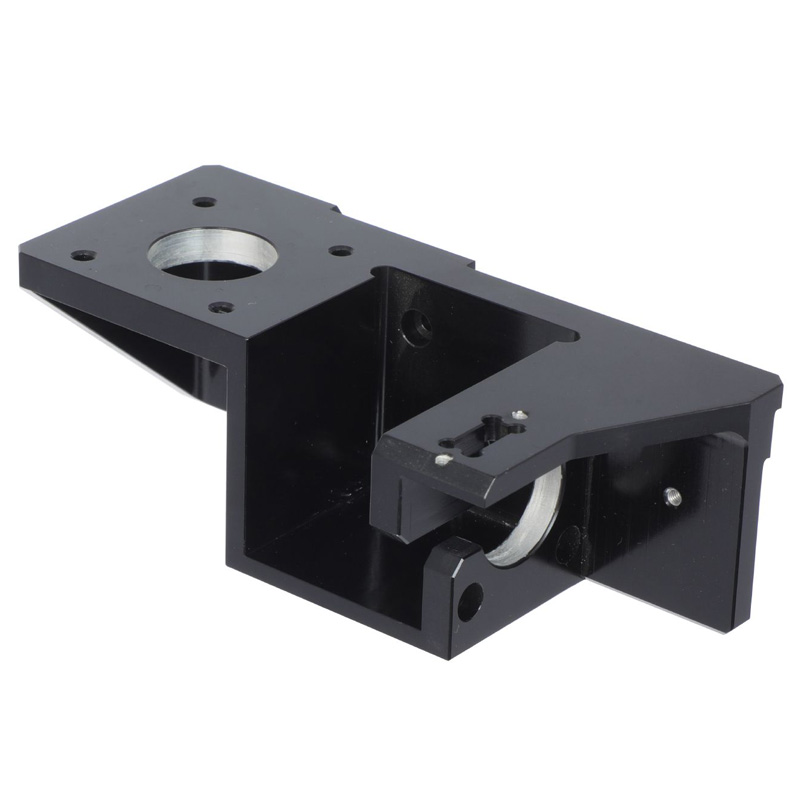

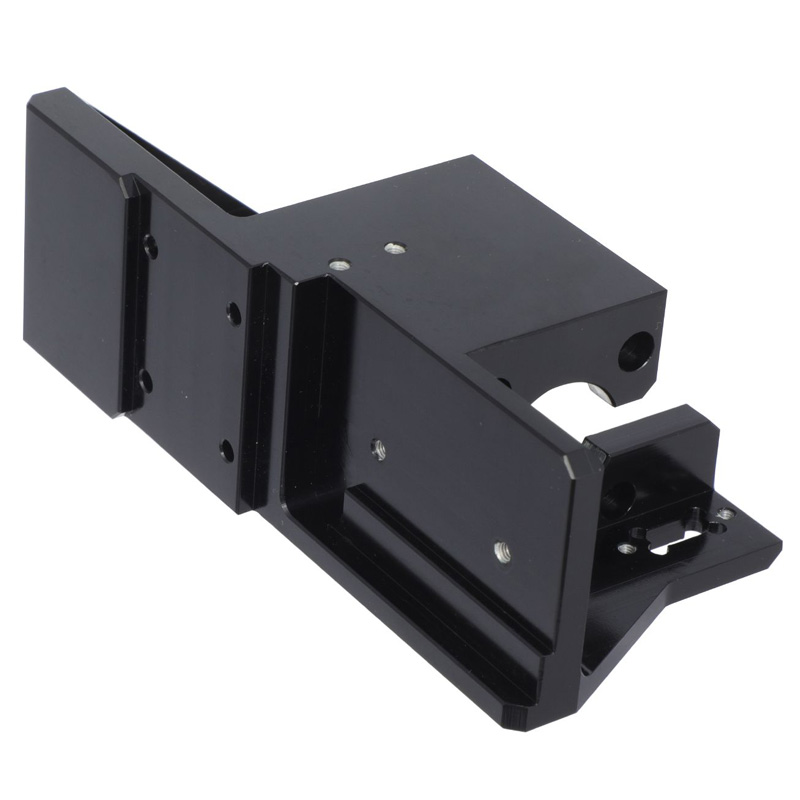

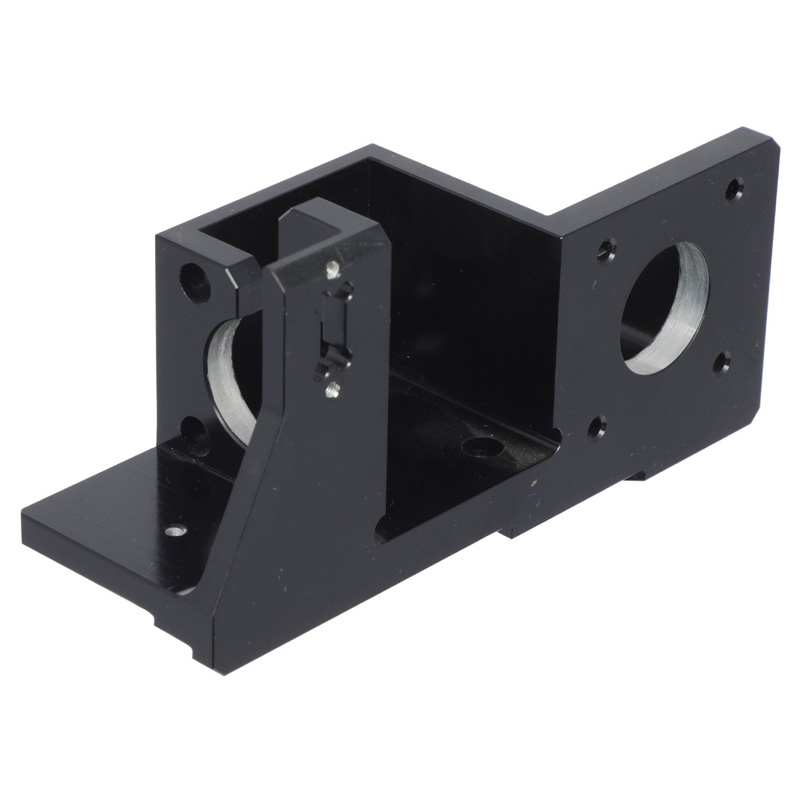

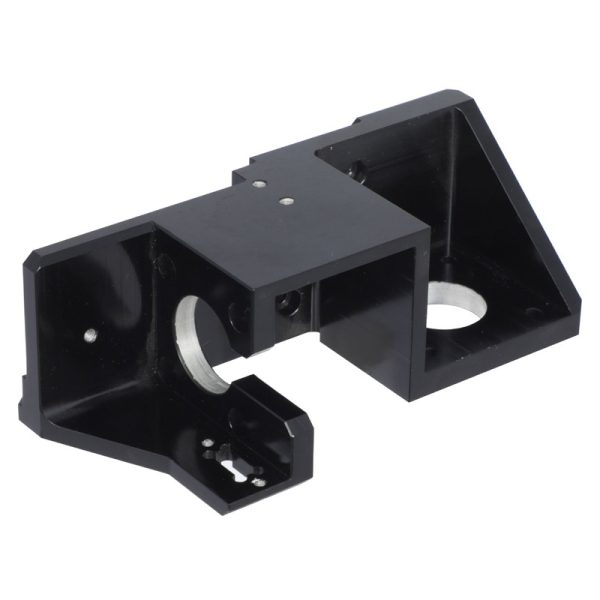

This integrated stepper motor mount is a custom precision CNC machined aluminum component, specifically engineered for 3D printer Z-axis assemblies, desktop CNC routers, laser engravers, and industrial linear motion modules. Machined from solid 6061-T6 aluminum via high-precision 3/5-axis CNC milling in a one-piece forming process, it completely eliminates the assembly gaps and welding deformation seen in traditional split sheet metal brackets.

Unlike ordinary single-function motor holders, this part integrates four critical functions into a single structure: a standard NEMA motor mounting flange, a proprietary radial clamping locking mechanism (C-Clamp) for the drive shaft, V-slot aluminum extrusion positioning grooves, and limit sensor mounting holes. The surface features a matte black hard anodizing finish (8–12μm), providing superior wear resistance, anti-corrosion protection, and a non-reflective appearance. By stabilizing lead screw rotation and reducing axial runout, this mount significantly improves the layer accuracy and surface finish of printed and machined workpieces, making it ideal for high-speed, high-precision motion control systems.

Core Technical Specifications

Key Engineering Advantages

• One-Piece Integrated Rigidity: Machined from a solid block in a single setup, the structural stiffness is 3–5 times higher than fabricated sheet metal brackets. It effectively suppresses resonance during high-speed lead screw movement, preventing layer lines and machining chatter marks.

• Patented Radial C-Clamp Locking: This is a critical feature compared to standard fixed bearing housings. The integrated clamping mechanism allows the user to precisely lock the passing drive shaft or lead screw in place using a tightening screw, eliminating axial wobble and ensuring consistent positioning.

• Optimized Lightweight Design: Internal pocket milling successfully reduces the total weight while maintaining ultra-high strength, reducing the overall inertia of the moving axis for faster and more energy-efficient operation.

• Universal Modular Mounting: Features sensor limit slots, profile clamping grooves, and multi-directional mounting holes. It is fully compatible with most DIY 3D printers, carving machines, and automation equipment.

Typical Application Scenarios

• Additive Manufacturing: FDM industrial 3D Printer Z-axis core structural parts.

• Small CNC Equipment: Desktop CNC router, mini laser engraver linear motion accessories.

• Industrial Automation: Automatic dispensing machines, visual inspection linear slide module components.

• Robotics & Motion Control: Servo/stepper motor mounting brackets for custom automation systems.

CNC Machining Services & Turnkey Support

We provide a one-stop CNC machining service for custom hardware development. Our process includes:

1. Drawing Confirmation (DFM): Receive CAD (STEP, IGS, DWG) files; our engineers provide a professional Design for Manufacturability (DFM) analysis to optimize your design.

2. Prototype & Mass Production: We support 1-piece rapid prototyping (3-7 days) to full-scale mass manufacturing (15-20 days).

3. Strict Quality Control: All parts are inspected using CMM (Coordinate Measuring Machine), height gauges, and thread gauges before shipping. Full dimensional inspection reports (FAI) can be provided.

4. Packaging & Logistics: Anti-collision bubble wrap and foam independent packaging, global shipping supported (DHL, FedEx, UPS).

Recommended SEO Keywords for Your Website

• Primary Keywords: CNC Machining Services, Stepper Motor Mount, CNC Machined Motor Mount, Aluminum Motor Mount Bracket.

• Feature-Specific Keywords: bearing bore, bearing seat, motor flange, mounting face, alignment surface, locating bore, lead screw support, shaft passage, concentric bore, threaded mounting hole, precision mounting interface, motor positioning surface, C-Clamp locking bracket.

FAQs for Custom Machining

Q1: Can you adjust the specific hole positions and the diameter of the central bore?
A1: Absolutely. This is a 100% custom CNC machined part. We can revise all dimensions, hole layouts, and shaft diameters strictly according to your equipment’s 2D/3D drawings to perfectly match your designated NEMA motor and linear shafts.

Q2: What other surface finish options are available besides black anodizing?
A2: We offer various surface treatments for CNC aluminum parts. Besides black anodizing, we provide natural clear anodizing, colored anodizing (red, blue, gold), sandblasting, and powder coating.

Q3: Can you upgrade the material if my equipment requires higher load capacity?
A3: Yes. For heavy-load or high-torque industrial applications, we can upgrade the raw material to 7075-T6 aluminum alloy, and optimize the product wall thickness in the CNC milling stage to significantly increase structural strength without changing its overall fit.
