Product Overview

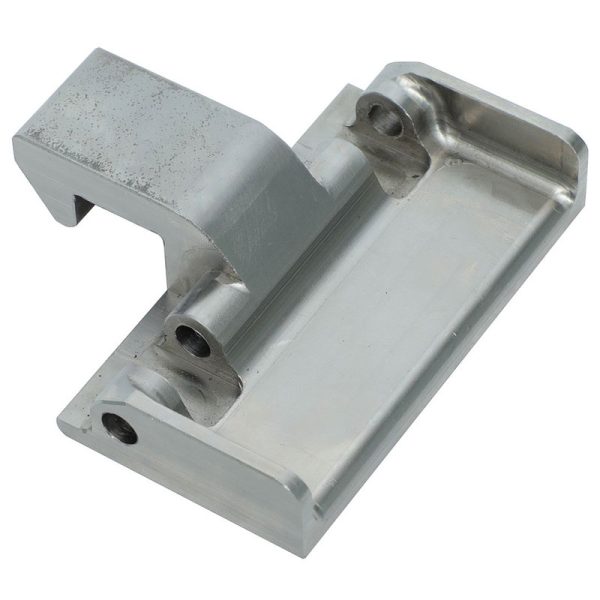

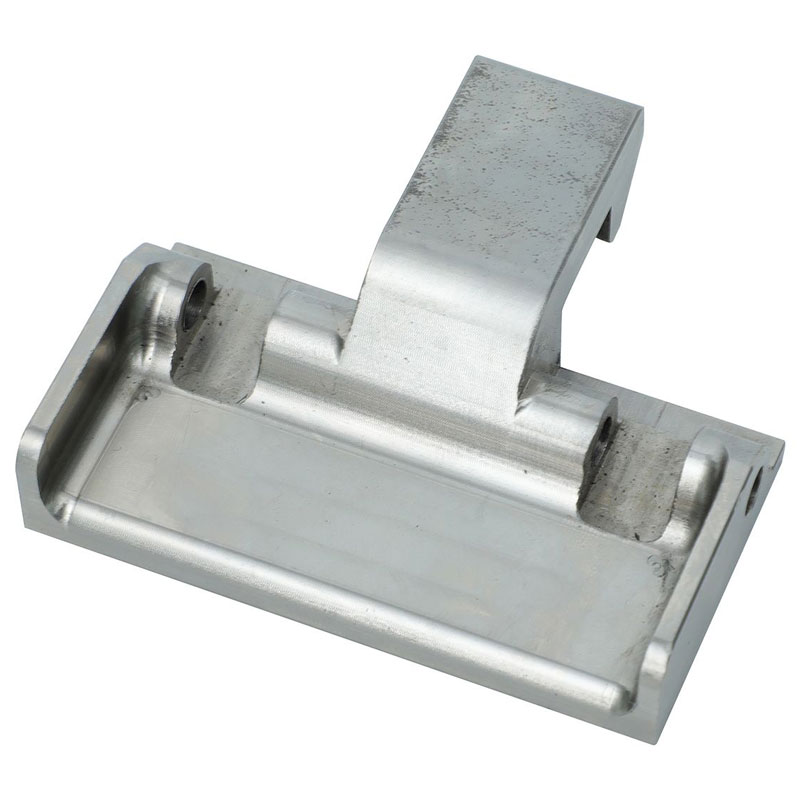

This precision-machined 6061 aluminum hook bracket guide is an essential mechanical component engineered specifically for high-frequency reciprocating mechanisms. Its unique fully-rounded internal cavity design prevents fine threads and textiles from snagging, making it a standout choice for industrial sewing machines. Manufactured via advanced 3-axis CNC milling, this lightweight yet rigid cantilever bracket ensures stable transmission and extended machine lifespan. It also serves as an excellent alternative for general light-duty automation guiding systems.

Key CNC Machining Service Parameters

Application Scenarios

While specifically designed as an OEM sewing machine component, this highly adaptable bracket suits multiple industries:

• Primary Application – Industrial Sewing Machines: Functions as a presser foot lifting guide, shuttle hook limiter, or feed dog adjusting slider. The open hook slot engages with metal linkage rods to perform vertical reciprocating pulling and precise positional limit control. Lightweight design reduces motor load during rapid stitching (up to 5,000+ RPM).
• Secondary Application – Light Automation / Conveying: Acts as a linear guide hook or material stopper. Its smooth, rounded edges make it perfect for guiding thin tapes, wires, or film strips in automated packaging or wire-drawing machines, preventing surface scratches.
• Custom Machinery Assembly: Works as an intermediate mounting base for compact, tight-space equipment enclosures.

Material Analysis: Why 6061 Aluminum?

Tolerance Capabilities & Precision

• Positional Tolerance: Down to ±0.02mm for key counterbored mounting holes, ensuring perfect alignment with the machine chassis.
• Dimensional Accuracy: The opening width of the cantilever hook slot is controlled within ±0.05mm to ensure a snug but movable fit for the linkage rod without jamming.
• Surface Roughness: Standard Ra 3.2μm (as-milled). Optional Ra 1.6μm or finer finishing is available for low-friction requirements.

Manufacturing Challenges & Solutions

• Challenge 1: Cantilever Vibration during Milling.
  Solution: We use specialized precision fixtures to support the base firmly, combined with “step-down” milling strategies and reduced tool feed rates to absorb vibration.
• Challenge 2: Maintaining Full-Rounded Internal Corners.
  Solution: We utilize corner-radius end mills (bull-nose cutters) throughout the pocketing process. Toolpaths are meticulously programmed with 3D CAM software.
• Challenge 3: Cost and Batch Consistency.
  Solution: Our optimized toolpaths reduce unnecessary air-cutting and cycle times, delivering high-precision hollowed parts while keeping mass-production costs highly competitive.

Frequently Asked Questions (FAQ)

Q1: Does this part come with surface treatment?

A: The standard version is supplied as “as-machined” (bare aluminum). However, we offer clear/black anodizing, sandblasting, and powder coating if required.

Q2: Can you customize the dimensions or the hook structure?

A: Absolutely. Send us your 2D/3D drawings (STEP/IGES/PDF), and we will modify the cantilever length, hook angle, or hole positions to fit your exact design.

Q3: What is your standard packaging to prevent damage?

A: Each part is placed in a separate foam slot or bubble bag, packed in reinforced hard cardboard boxes. For bulk orders, we use export-grade wooden pallets/crates.

Q4: Do you offer a warranty or quality assurance certificate?

A: Yes. We provide a full Material Test Report and a First Article Inspection (FAI) report with dimensional measurements for every sample and first batch of mass production.

Q5: How do I get a quick quotation?

A: Send us your drawings, quantity, and surface finish preference. We usually reply with a competitive quote within 2-4 business hours.

Upload your 3D files today for a fast, no-obligation quote!
