Product Overview

This custom part is a precision CNC machined insulation fixture base plate, specifically designed for the 3C electronics and PCBA semiconductor testing industries. It integrates high-accuracy PCBA positioning with component clearance features. Made from premium FR4 fiberglass or Bakelite, this material offers excellent insulation, anti-static, and heat-resistant properties, making it a standard and reliable module for automated production line FCT (Functional Circuit Test) and ICT (In-Circuit Test) stations.

Key Features

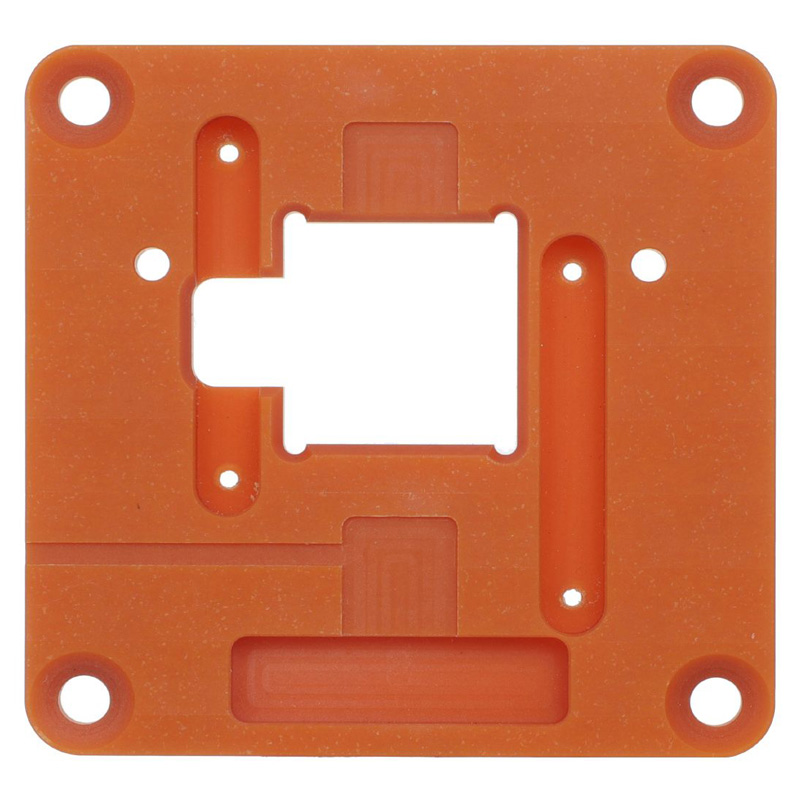

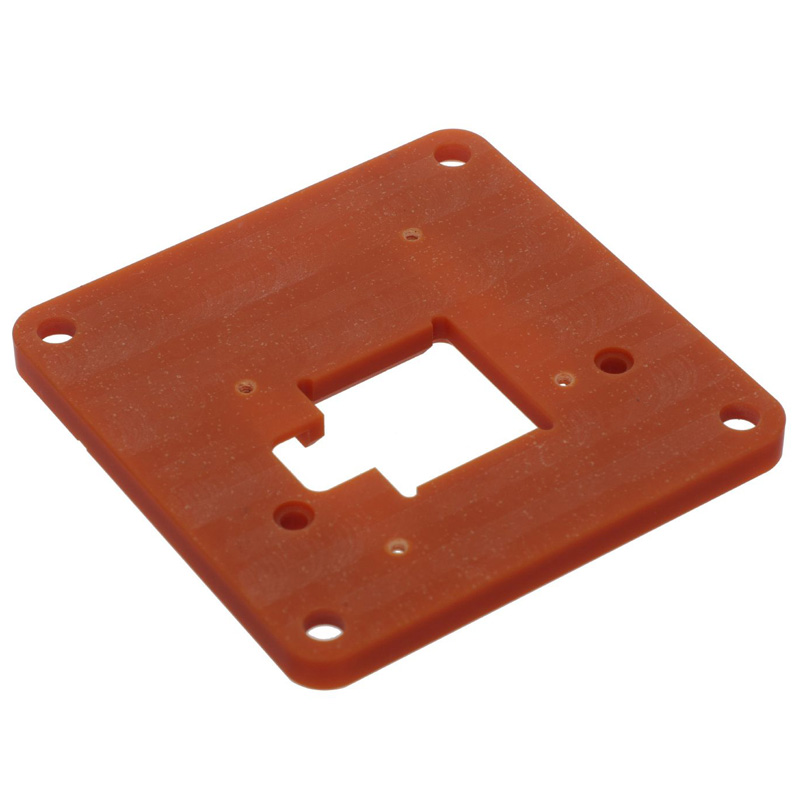

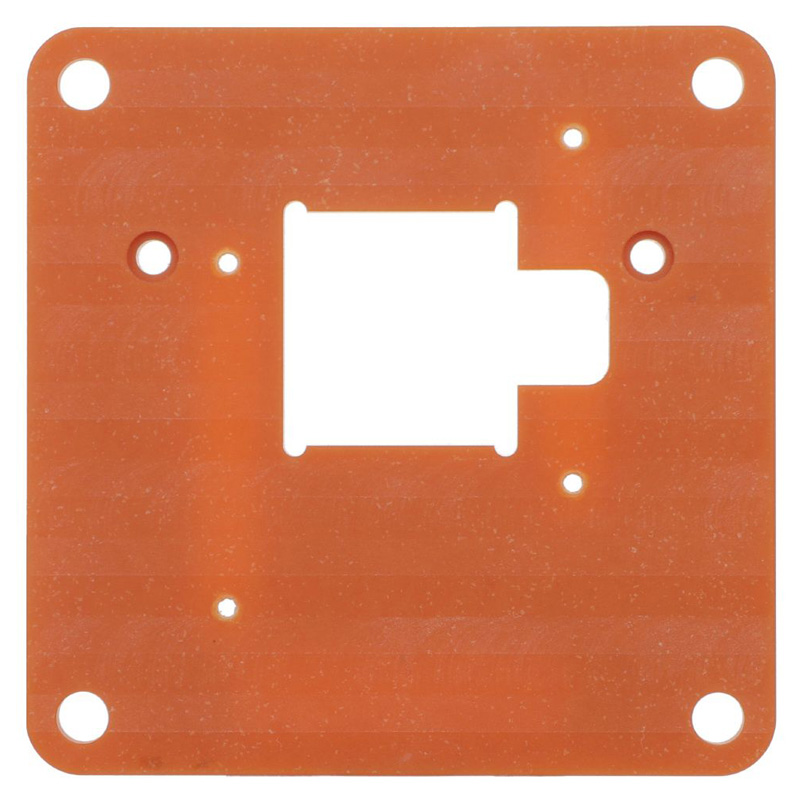

• Anti-Error Positioning: Features a customized irregular cutout window in the center, paired with precision locating pin holes on the bottom side. This ensures a perfect one-time alignment of the PCBA board with the test probe modules, completely eliminating reverse assembly errors.

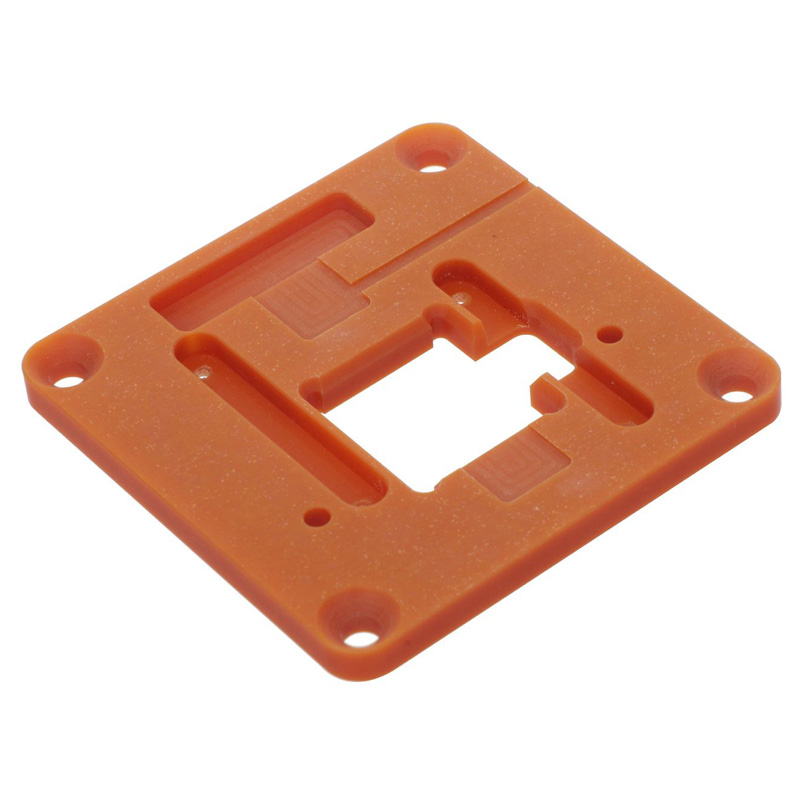

• Component Clearance Pockets: The reverse side is machined with specific depth pockets, grooves, and stepped recesses. This perfectly accommodates protruding SMD components, capacitors, inductors, and solder pins on the back of the PCBA, preventing component crushing or damage during the pneumatic pressing process.

• Insulation & Anti-Static: Manufactured with high-quality FR4/Bakelite laminates, effectively isolating high-voltage testing circuits, ensuring safe operation, and preventing short circuits on sensitive electronic boards.

• Robust Mounting System: Standard counterbored mounting holes at all four corners allow for secure and direct attachment to automated machine bases, pneumatic cylinders, or guide rail frames.

CNC Machining Service Specifications

Applications

• 3C Electronics Assembly Lines: Used for the rapid positioning and testing of mainboards for smartphones, tablets, and smart wearables.

• SMT Automation Equipment: Functions as a reflow soldering fixture carrier and loading/unloading pallet for automatic pick-and-place machines.

• PCB / FPC Functional Testing (ICT/FCT): Serves as the insulating base plate beneath the test probe modules for electrical performance verification.

• Semiconductor Burn-in Testing: Serves as an auxiliary locating and insulating plate in burn-in fixture sets for chips.

Why Choose Us for Your CNC Machining Needs?

1. Fixture & Electronics Expertise: We don’t just machine shapes; we understand the engineering challenges of test fixtures. We strictly control insulation coefficients and thermal expansion rates to ensure our large plates remain warp-free and crack-free.

2. Free DFM Analysis: Once we receive your 3D CAD or 2D engineering drawings, our engineering team provides a comprehensive DFM (Design for Manufacturability) report within 24 hours. We offer optimization suggestions on pocket depths and step angles to help you avoid costly trial-and-error.

3. Flexible Order Quantities: We support single-part prototyping (rapid delivery) as well as volume production (1,000+ pieces) for CNC machining, ensuring stable lead times and consistent quality.
