Product Overview

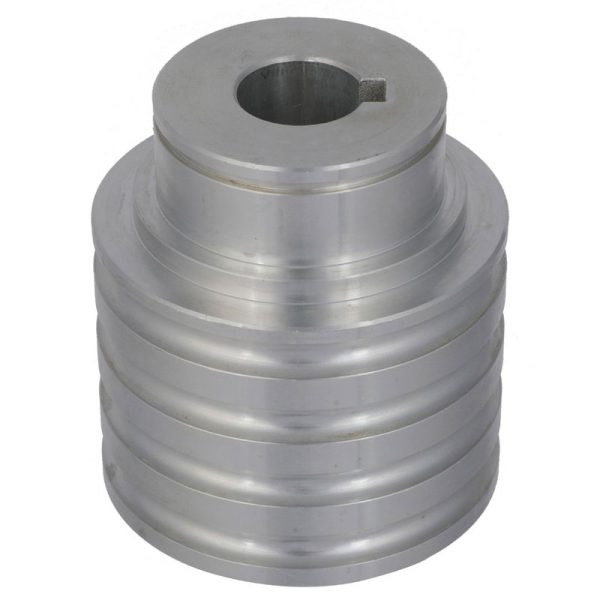

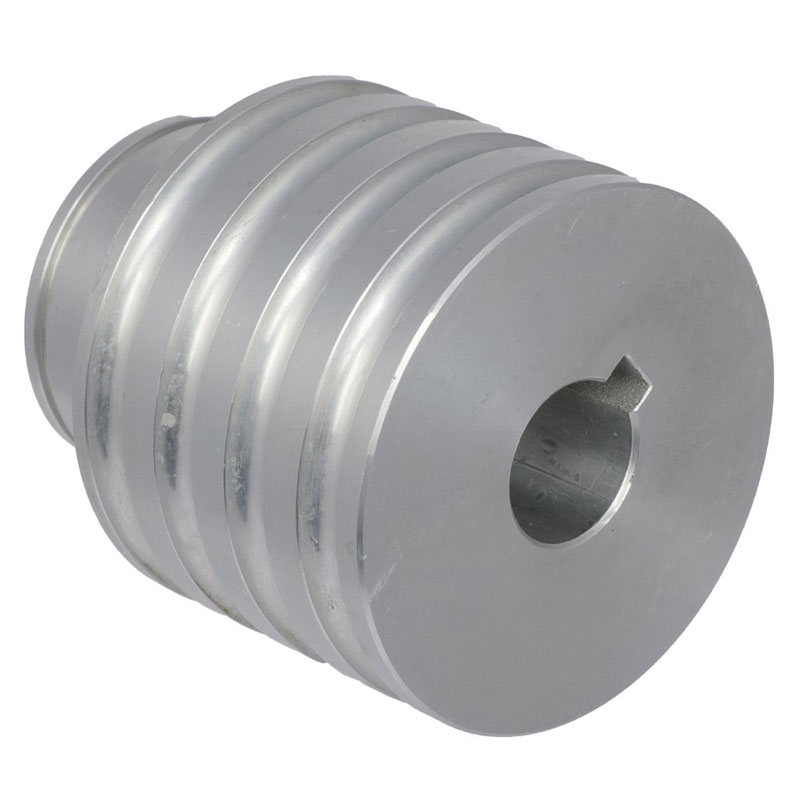

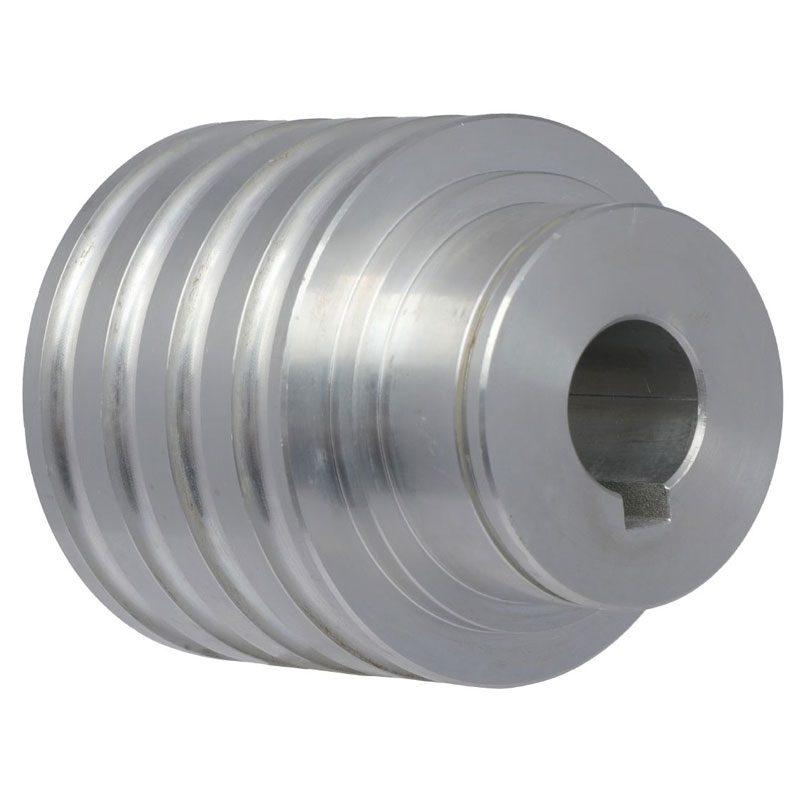

Our custom CNC machined aluminum step pulley (multi-groove V-belt pulley) is meticulously engineered for precise power transmission and variable speed control in light-to-medium-duty industrial machinery. Featuring a precision-machined keyway for secure shaft locking and multi-diameter V-grooves for flexible belt positioning, this component is the ideal solution for machine tool spindles and automated conveyor systems. As a professional CNC machining services provider, we offer fully custom diameters, bore sizes, and surface finishes to match your exact engineering drawings.

CNC Machining Services & Specifications Parameter Table

Application Scenarios (Where it is used)

The unique step design allows operators to manually shift the V-belt between multiple groove diameters to achieve speed variation (change of transmission ratios). Typical applications include:

• Small Machine Tools: Drill presses, manual lathes, milling machines, and tapping machines (Primary application).

• Wire & Cable Processing: Wire drawing machines, take-up equipment, and wire tensioning units.

• Automated Packaging & Conveyors: Light-duty assembly lines, food processing conveyors, and printing machinery.

• General Industrial Automation: Power transmission systems where lightweight, low-inertia rotating parts are required.

Material Analysis (Why 6061 Aluminum?)

While some heavy-duty applications demand steel or cast iron, this part is specifically designed in aluminum for its unique properties.

• Lightweight and Low Inertia: Aluminum reduces the rotational inertia of the pulley, minimizing the load on the electric motor and enabling faster acceleration/deceleration in small machine tools.

• Excellent Machinability: 6061-T6 offers superior chip breaking and high-speed cutting characteristics, resulting in a smooth, high-precision surface finish and lower machining costs compared to steel.

• Corrosion Resistance: It naturally resists rusting in humid industrial environments.

• Anodizing Friendly: Aluminum alloys can undergo hard anodizing, significantly increasing the surface hardness and wear resistance of the V-grooves, extending the pulley’s service life against continuous belt friction.

Precision Tolerances & Capabilities

We understand that a pulley is the heart of a transmission system. Any eccentricity leads to vibration, noise, and premature bearing failure. Our CNC machining services guarantee:

• Bore Dimension & Fit: We machine the central bore to H7 tolerance to ensure a snug fit on the motor/transmission shaft, preventing micro-movements.

• Keyway Accuracy: The width and depth of the keyway are strictly controlled to ensure smooth insertion of the standard flat key without slop, guaranteeing high torque transmission.

• Concentricity (Runout): The concentricity between the central bore and all outer V-groove diameters is maintained within 0.02mm. This ensures your machine runs extremely smoothly even at high RPMs.

Manufacturing Challenges (What makes it hard to machine?)

Producing a high-quality step pulley requires specialized expertise to overcome these specific CNC machining difficulties:

1. Vibration & Chatter Control: The part has a long extension ratio when mounted on a lathe. Turning deep V-grooves requires optimized cutting speeds, rigid tooling fixtures, and anti-vibration boring bars to avoid “chatter” (wavy surface marks) on the grooves.

2. Concentricity Assurance: During the turning process, maintaining a highly consistent wall thickness between the outer grooves and the inner bore is difficult. We use hydraulic collet chucks and precise synchronous follow-rests to maintain perfect concentricity.

3. Keyway Deburring: After milling the internal keyway, the sharp burrs on the exit edge of the bore must be meticulously chamfered/deburred. If the burr is left, it will damage the drive shaft during installation or cause binding. We use custom micro-deburring tools to clean the internal edges completely.

4. Radial Runout of Grooves: The multi-groove structure requires precise radial and axial indexing to ensure every groove pitch is identical, ensuring equal tension on multiple drive belts.

FAQ (Frequently Asked Questions)

Q1: Can you manufacture this step pulley in steel or cast iron for heavy-duty applications?
A: Yes. While our standard default material is 6061 Aluminum, we can absolutely machine it from 1045 Carbon Steel, 42CrMo alloy steel, or even high-strength ductile iron. However, please note that steel/iron weighs significantly more and may require a different surface treatment (like black oxide or zinc plating) to prevent rust.

Q2: What design files do you require for custom manufacturing?
A: We accept files in STEP (.stp), IGES (.igs), Parasolid (.x_t), and DWG/DXF 2D formats. For optimal accuracy, please also provide your required ISO tolerances (e.g., H7 for bore, JS9 for keyway) in the drawing.

Q3: What is the typical lead time for a custom CNC machined step pulley?
A: For standard batch quantities (1–100 pcs), the lead time is generally 10–15 working days. This includes material sourcing, CNC turning, milling the keyway, surface anodizing, and final 100% quality inspection.

Q4: Is the keyway standard for every size?
A: The keyway size is not universal. It strictly depends on the diameter of the central shaft it must mount onto. We will machine the keyway width and depth exactly according to ISO/R 773 or ANSI B17.1 standards based on your provided bore size.

Q5: What surface finish do you recommend for V-belt pulleys?
A: For aluminum, we highly recommend Clear or Black Anodizing (Type II). Anodizing adds a hard outer layer (aluminum oxide) that protects the V-groove from “glazing” or being worn away by the friction of the drive belt over time. If you need extreme wear resistance, we can perform Hard Anodizing (Type III).

Send your 2D/3D CAD drawings today for a customized CNC machining quotation! We offer free engineering design feedback and DFM (Design for Manufacturability) analysis to optimize your part for cost-effective mass production.
