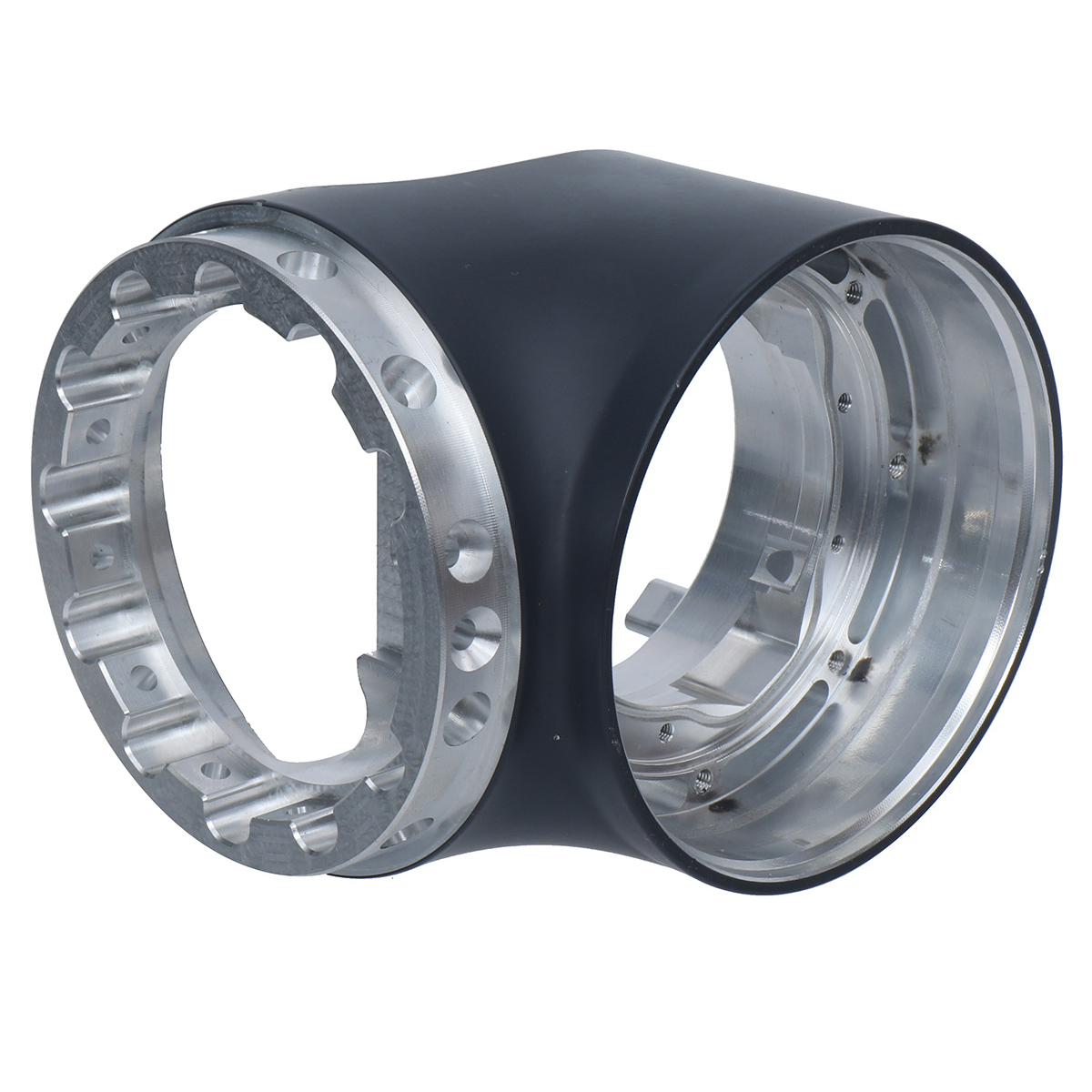

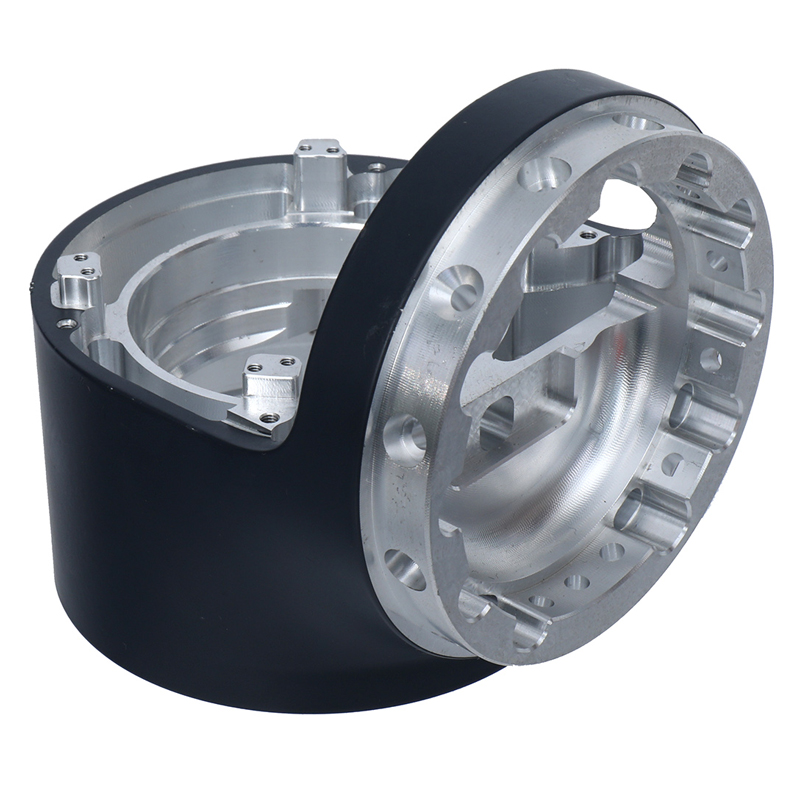

CNC Machined Aluminum Alloy Industrial Robot Arm Joint Mounting Sleeve – Precision Custom Robotics Structural Parts
Description
This product is a specialized mounting sleeve designed exclusively for industrial robot arm joints. Fabricated from 6061-T6 aluminum alloy and precision-machined via 5-axis CNC milling, it serves as a core structural component that ensures stable connection and precise power transmission of robot joints. Engineered to meet the requirements of industrial/collaborative robot joint modules with a load capacity of ≤50kg, the product features surface treatments such as hard anodizing to significantly enhance surface hardness (HV≥120) and protection performance (IP54 dust and water resistance, upgradable to IP65), making it suitable for harsh industrial environments with temperatures ranging from -10℃ to 60℃.
Boasting high-precision assembly capabilities, the product achieves key dimensional tolerances of up to ±0.02mm, flange surface flatness of ≤0.01mm, and coaxiality of dual mounting holes of ≤0.015mm—ensuring seamless integration with joint shafts, reducers, and other components. It supports customization based on customer CAD drawings, including dimensions (main mounting holes available in Φ60-Φ100mm), threaded hole specifications (M6/M8 optional), and laser-engraved marks, catering to the customized assembly needs of various robot models.
Manufactured in strict compliance with ISO 9001 and ASTM B209 aluminum alloy standards, the product undergoes multiple quality inspections such as coordinate measuring machine (CMM) testing and hardness verification to guarantee consistency and reliability in mass production. It is widely used for the assembly and integration of various robot joint modules, including those in industrial automation production lines, collaborative robots, and material handling robots.
Looking for custom‑made robot structural components beyond this joint mounting sleeve? Visit our Custom Robot Parts CNC Machining Services page to learn about our full‑range capabilities for prototypes, low‑volume and mass‑production robotics parts.
| No. | Parameter Category | English Parameter Description | Remarks/Range |
|---|---|---|---|
| 1 | Core Material | Base Material Grade | 6061-T6 Aluminum Alloy |
| Tensile Strength | ≥290 MPa | ||
| Hardness (Brinell) | ≥95 HB | ||
| Density | 2.7 g/cm³ | ||
| 2 | Dimension Specifications | Main Mounting Hole Diameter | Φ60-Φ100mm (Customizable) |
| Overall Dimension (Width×Height×Length) | 100×120×110mm ~ 150×180×150mm (Customizable) | ||
| Dimension Tolerance | ±0.05mm (Standard), ±0.02mm (High Precision Customization) | ||
| Wall Thickness | 3.0mm ~ 6.0mm (Adjustable on Demand) | ||
| 3 | Machining Precision | Machining Process | CNC 5-Axis Milling |
| Hole Position Tolerance | ±0.03mm | ||
| Flatness (Flange Surface) | ≤0.01mm | ||
| Surface Roughness | Ra ≤ 1.6 μm (Fitting Surface), Ra ≤ 3.2 μm (Non-Fitting Surface) | ||
| 4 | Protection Performance | Protection Class | IP54 (Dust/Water Resistant, Upgradable to IP65) |
| Operating Temperature Range | -10℃ ~ +60℃ (Industrial Environment) | ||
| 5 | Surface Treatment | Optional Processes | Anodizing (Black/Silver), Hard Anodizing, Sandblasting |
| Coating Thickness | 12-15 μm (Hard Anodizing) | ||
| 6 | Mounting Method | Mounting Type | Robot Joint Shaft Mount/Flange Mount |
| Mounting Hole Specification | M6/M8 Threaded Holes (Customizable) | ||
| 7 | Structural Design | Internal Mounting Posts Quantity | 4-6 Pcs (Matched with Overall Dimension) |
| Docking Shaft Hole Diameter | Φ60-Φ100mm (Matched with Main Mounting Hole) | ||
| Weight | 200g ~ 800g (Calculated by Dimension) | ||
| 8 | Customization Options | Dimension Customization | Custom Design per CAD Drawing |
| Holes/Interfaces Customization | Machining per Customer’s Assembly Requirement | ||
| Logo/Mark Engraving | Laser Engraving | ||
| 9 | Quality Standards | Executive Standard | ISO 9001, ASTM B209 (Aluminum Alloy Standard) |
| Inspection Method | Coordinate Measuring Machine (CMM), Hardness Test, Precision Gauge Inspection | ||
| 10 | Application Scenarios | Applicable Equipment Type | Industrial/Collaborative Robot Arm Joint Modules (Load ≤50kg) |
