Introduction

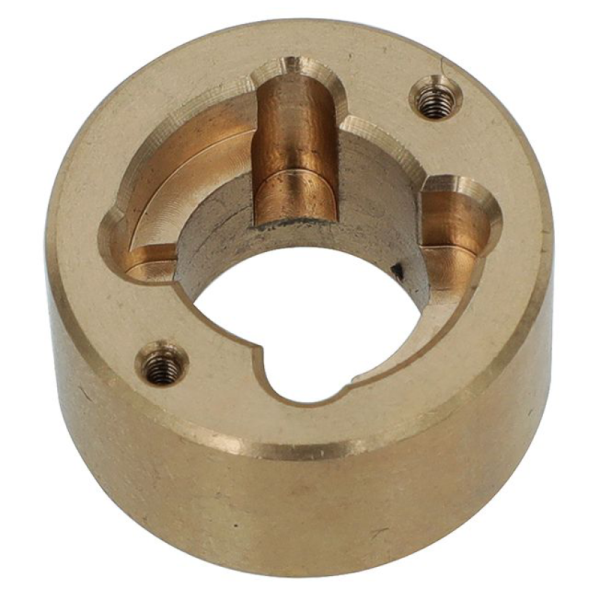

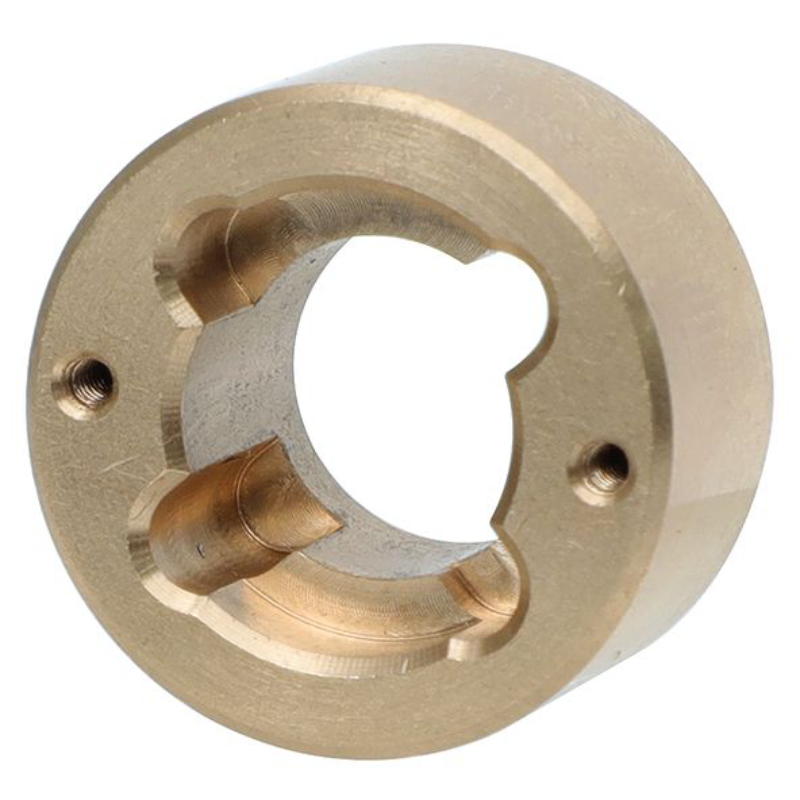

Elevate your 1/10 scale RC rock crawler’s performance with our custom CNC machined brass wheel counterweight hub (also known as a Brass Wheel Weight Ring). Precisely engineered to fit specified wheel axle flanges (including but not limited to YK4082, YK4102 series), this high-density brass component is the ultimate upgrade for lowering your vehicle’s center of gravity. By strategically adding unsprung weight inside the wheel hub, it dramatically enhances climbing traction, improves side-hill stability, and prevents rollovers—all while delivering a premium, machined aesthetic.

CNC Machining Services Parameter Table

This product represents our standard precision capabilities. We offer full customization for your specific RC models and dimensions.

Application Scenarios (Where & How it’s used)

• Primary Application: RC Rock Crawler Wheel Assembly. Specifically designed as an internal wheel hub insert.

• Operating Principle: Mounted directly onto the wheel axle flange between the wheel rim and the outer lockout. The two side-threaded M3 holes secure it firmly against the axle to prevent rotation.

• Performance Impact:

  • Traction Maximization: Adds rotational mass (unsprung weight) to the wheels, allowing tires to grip uneven rock surfaces better.

  • Anti-Rollover: Lowers the center of gravity of the entire vehicle chassis, significantly reducing the risk of flipping while climbing steep inclines.

  • Compatible Models: Widely used in 1/10 scale RC crawlers like the YK4082, YK4102, and other axle shafts that require this specific 3-point internal locating design.

Material Analysis: Why Brass?

• Material Grade: H59 / H62 Brass (Copper-Zinc alloy).

• High Density (8.5 g/cm³): Ideal for counterweights. It provides roughly 3x the weight of standard aluminum alloy within the same space, effectively addressing understeer and balance issues.

• Excellent Machinability: Brass has low friction on cutting tools, allowing us to machine complex internal cavities and the thin cross-beam with minimal tool wear and a mirror-like finish.

• Corrosion Resistance: In contrast to steel, H62 brass resists oxidation and rust effectively in outdoor environments (rain/mud) without needing expensive plating, ensuring long-term durability.

• Self-Lubricating Properties: Although primarily used for weight, its low friction coefficient provides a tiny degree of self-lubrication at the friction points against the axle shaft.

Tolerance Capabilities (Precision Engineering)

We understand that in RC mechanics, even a 0.1mm deviation can cause wheel wobble or jamming. Our standard production tolerances for this part are:

• Internal Locating Bore (ID): ±0.02 mm. Ensures a precise, slip-fit onto your wheel axle without play.

• Locating Pin (Cross-beam): ±0.02 mm diameter. Ensures the anti-twist mechanism engages flawlessly with the wheel hub.

• Distance between two threaded holes: ±0.05 mm. Guarantees your M3 locking screws align perfectly with the vehicle’s axle nut holes.

• Concentricity (OD to ID): ≤ 0.05 mm TIR (Total Indicator Reading). Essential for high-speed rotation (if used on a motor shaft) and ensures balanced wheel spinning during climbs.

Manufacturing Difficulties (Our Engineering Edge)

Producing this part is not a simple turning job. It requires specific engineering experience:

1. Internal Cross-beam Deformation Control: The mid-section features a “floating” cross-beam with a positioning pin. Because this beam is thin and suspended, internal machining stresses can easily warp it. We utilize stress-relieving cycles and specific multi-axis toolpath strategies to keep this flat and dimensionally stable.

2. Deep Internal Cavity Milling: The 2.5D inner cavity with non-standard (double-D) features requires custom form tools or specific 4-axis interpolation to scoop out the exact depths without undercuts or gouging.

3. Positional Alignment: Because the internal pin and the outer threaded holes serve completely different registration functions, maintaining absolute X/Y alignment between these features is critical. We handle this in a single 4-axis setup to eliminate repositioning errors.

Frequently Asked Questions (FAQ)

Q1: Will this fit my specific RC model?
A: Our standard design is tailored for 1/10 RC crawlers with specific axle flange geometries (like the YK4082). If your axle shaft has a “double-D” or specific 2-point internal lockout, please send us your axle CAD drawing or a physical sample. We will adjust the ID and pin position to perfectly fit your model.

Q2: Will the brass turn dark or tarnish over time?
A: H62 brass naturally oxidizes and develops a golden-brown patina when exposed to air and moisture. While this does not affect the weight or function, if you prefer a shiny appearance forever, we recommend our Nickel Plating or Anti-Tarnish (Clear Lacquer) coating service.

Q3: Can I order a custom design (ODM)?
A: Absolutely. We provide a full ODM service. Share your 3D step/IGES file, or send us your physical brass weight ring, and our engineers will reverse-engineer it to produce an exact or upgraded version.

Q4: What is your minimum order quantity (MOQ)?
A: Our standard MOQ is 50pcs for mass production. However, for prototypes or personal hobbyists, we offer single-piece CNC machining services. Note that single-piece costs will be higher due to machine setup and programming time.

Q5: Do you offer lower-cost raw brass casting instead of CNC machining?
A: For the specific geometry of this part (thin cross-beam and sharp internal corners), die-casting is not feasible due to metal shrinkage and mold requirements. CNC Machining is the only reliable method to achieve the necessary strength, precision, and weight distribution, ensuring your wheel assembly is perfectly balanced.

Ready to upgrade your RC crawler?
Contact our CNC engineering team today. Submit your CAD drawings or provide your wheel axle dimensions for a free precision CNC machining quotation. We optimize your product for performance, longevity, and cost-efficiency.
