1. Product Overview

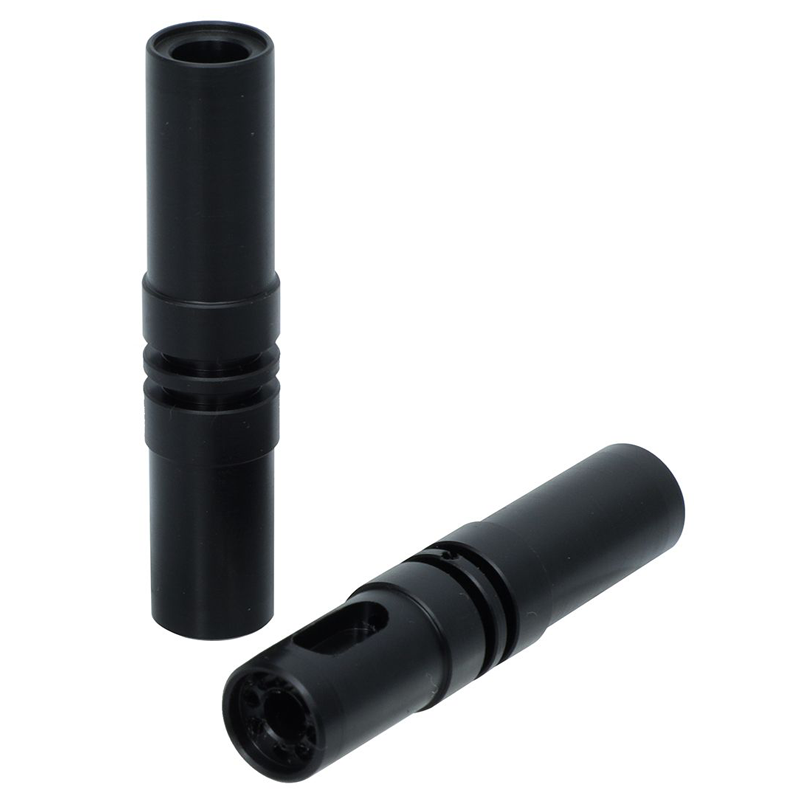

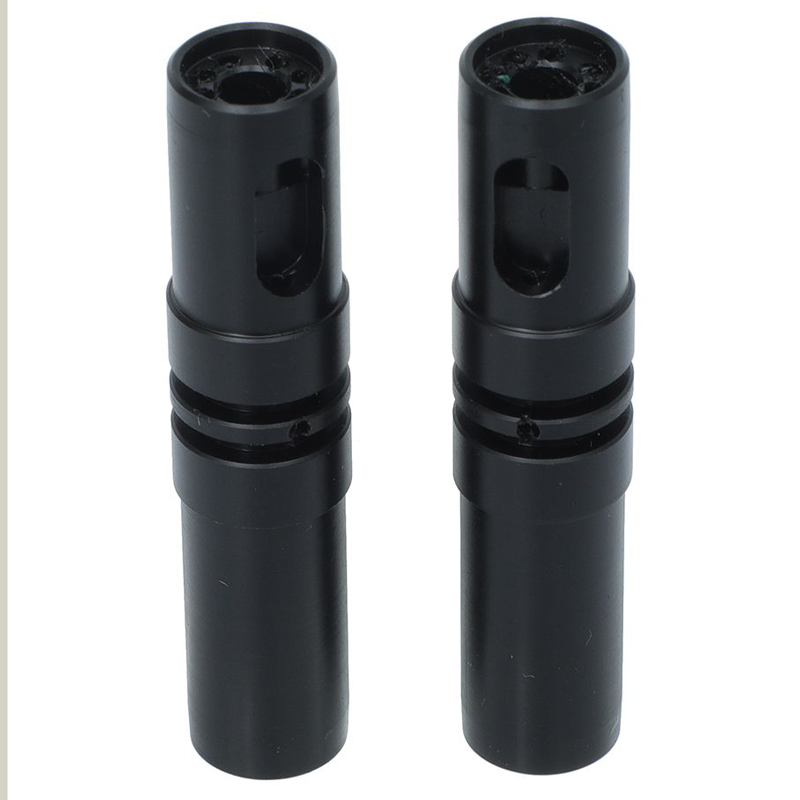

This custom-machined Aluminum Anti-Rotation Guide Sleeve is a critical precision mechanical component designed for high-cycle linear motion applications. Distinctively engineered with a double-groove waist (for O-rings or retaining rings) and a side-mounted slotted window (for anti-rotation locating pins), this sleeve ensures stable, non-rotational axial sliding in automated equipment. Fully manufactured via advanced CNC turning and milling composite machining, it offers superior wear resistance and dimensional stability.

2. CNC Machining Service Specifications Table

To ensure the reliability of your automated equipment, we provide rigorous CNC machining services. The following are the standard specifications tailored for this specific anti-rotation guide sleeve:

3. Application Scenarios

Due to its specialized anti-rotation design and high-wear surface, this guide sleeve is widely integrated into various industrial sectors where linear motion and precise positioning are required:

• Automated Assembly & Packaging Lines: Used in robotic grippers and linear slide guides to prevent rotational drift during picking and placing movements.

• Textile & Sewing Machinery: Acts as a precise sliding bushing in high-speed weaving and stitching mechanisms.

• Pneumatic Linear Actuators: Used as a guide cylinder for actuator rods, providing excellent sliding sealing (via O-rings) and preventing the piston rod from twisting.

• Custom Industrial Enclosures: Serves as a quick-disconnect locking sleeve or a locating pin shaft on quick-change tooling fixtures.

4. Material Analysis: Why Aluminum 6061-T6 with Black Hard Anodizing?

Our material choices are based on performance, cost-effectiveness, and machinability:

• Base Material (Aluminum 6061-T6): We prefer 6061-T6 because it offers an ideal strength-to-weight ratio. It is extremely easy to cut with CNC turning machines, allowing for smooth surface finishes (Ra 0.4 μm) with minimal tool wear. This directly translates to lower unit costs for mass production.

• Surface Treatment (Black Hard Anodizing): Aluminum is naturally soft. However, the black hard anodizing process converts the aluminum surface into a dense, hard aluminum oxide layer. This raises the surface hardness (resistant to scratching during sliding), provides excellent corrosion resistance against humidity and industrial oils, and gives the part a professional, matte-black aesthetic.

5. Tolerance & Quality Control Capabilities

When dealing with automation components, fit is everything. An overly tight fit will cause sticking; a loose fit leads to vibration and premature failure.

• Precision Bores: We achieve ±0.005mm tolerance for the inner cylindrical hole. This guarantees a zero-lash fit between the sleeve and the mating piston/pin shaft.

• Concentricity: We maintain strict concentricity between the outer cylindrical surface and the inner bore. This ensures the sleeve glides smoothly along the entire travel length without eccentric wear. We use high-end CNC turning centers with live tooling to mill the side slot and drill the end holes in the same clamping setup, eliminating repositioning errors.

6. Manufacturing Challenges & Solutions

This seemingly simple part actually presents three main technical hurdles in CNC machining. Here is how we overcome them:

• Challenge 1: Thin-walled deformation. The part has a hollow inner core and a relatively thin wall. Clamping it tightly during machining can cause it to ovalize.

  • Our Solution: We use custom soft-jaws or expansion mandrels to clamp the part evenly on the full circumference, minimizing stress and deformation.

• Challenge 2: Side slot milling. Milling the long rectangular “Anti-rotation slot” on a cylindrical surface creates significant shear force, potentially breaking the tool or creating sharp burrs on the inner edge.

  • Our Solution: We employ high-speed micro-milling cutters with optimized feed rates, coupled with secondary precision deburring processes to ensure the slot edges are smooth and free of chips.

• Challenge 3: Anodizing thickness. Black hard anodizing adds about 0.02mm – 0.05mm to the outer diameter. If applied incorrectly, the sleeve will not fit into the housing.

  • Our Solution: We pre-program our CNC cutting tolerances explicitly considering the anodizing layer thickness. We also use selective masking on the internal bore to prevent anodizing inside the sliding surface, ensuring perfect dimensional control.

7. FAQs

Q1: What is the MOQ for this anti-rotation guide sleeve?
A: We support both prototyping and mass production. For standard-sized CNC turned parts like this, we typically start from 50 pieces. However, small batch orders (MOQ 5-10 pcs) for sample testing are warmly welcome to help you validate your design.

Q2: Do you have this part in stock?
A: Because this is a custom-machined part tailored to specific blueprints, we do not usually hold off-the-shelf stock. We produce entirely according to your 2D drawings or 3D CAD models (STEP/IGES).

Q3: How do you ensure the side slot is perfectly aligned with the internal locating holes?
A: We utilize 3-axis/4-axis CNC machining centers. The locating holes (end face) and the side anti-rotation slot are machined in a single setup (without removing the workpiece). This indexing ensures absolute perpendicularity and positional alignment.

Q4: What file formats do you accept for custom orders?
A: We accept standard engineering formats: 2D PDF/DWG drawings with full GD&T (Geometric Dimensioning and Tolerancing), and 3D model files (STEP, IGES, SolidWorks, AutoCAD, etc.).

Q5: Can you machine this guide sleeve from Stainless Steel 304?
A: Yes. If your equipment requires higher strength or is working in a highly humid or corrosive environment, we can easily switch the material to stainless steel 304 or 316. Please note this will increase the overall weight and raw material cost, but it is completely feasible.
