1. Product Overview

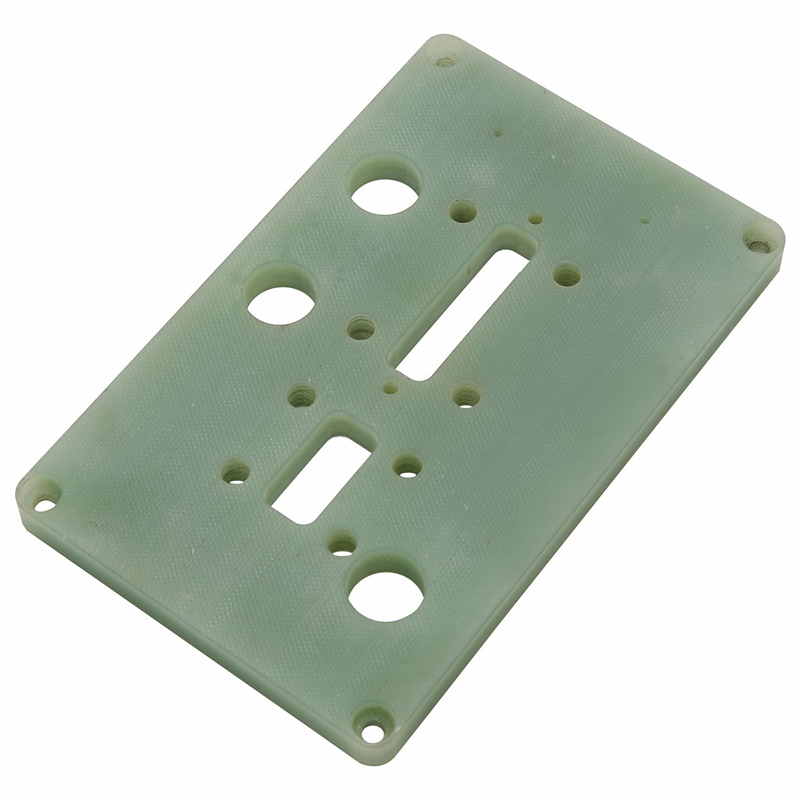

This custom CNC machined FR4 Epoxy Test Fixture Plate belongs to our full CNC Plate series, a high-performance insulating jig board specifically engineered for the PCB (Printed Circuit Board) functional testing and automated electronics assembly industries. Acting as a critical Probe Guide Jig, this green fiberglass laminate plate features precisely milled clearance slots, locating holes, and counterbored mounting points.

It is the ideal solution for securing and guiding test probes (Pogo pins) during ICT (In-Circuit Test) and FCT (Functional Circuit Test) processes. By providing excellent electrical insulation and dimensional stability, this board ensures accurate probe alignment, prevents PCB short circuits, and guarantees consistent high-yield testing on your production lines.

2. Material Analysis & Advantages

Material Specification: High-Grade FR4 Epoxy Fiberglass Laminate (Equivalent to G10).

3. CNC Machining Parameters & Capabilities

Below are our standard technical capabilities for machining FR4 and other composite materials. All specifications can be customized per your engineering drawings (2D/3D).

4. Manufacturing Challenges & Our Solutions

Machining FR4 fiberglass composite presents unique engineering challenges. Here is how we overcome them:

• Challenge 1: Severe Tool Wear & Delamination
  The Issue: Fiberglass is highly abrasive, quickly dulling standard carbide tools. This leads to chipping (delamination) around the drilled holes.
  Our Solution: We utilize Diamond-coated or ultra-high-grade tungsten carbide micro-grain tools. Combined with optimized high-speed spindle feeds, we ensure clean, burr-free holes without splintering the glass fibers.

• Challenge 2: Warping during milling
  The Issue: FR4 plates have internal stress. Milling away material can cause the thin board to bend, affecting flatness and probe alignment.
  Our Solution: We employ a multi-step roughing and finishing process and use vacuum fixtures to hold the board rigidly flat during the entire cutting cycle, ensuring final dimensional stability.

• Challenge 3: Hazardous Dust Control
  The Issue: FR4 dust (containing epoxy and glass particles) is harmful if inhaled and highly corrosive to machine internal components.
  Our Solution: Our CNC workshop is equipped with industrial-grade Vacuums and HEPA dust extraction systems during machining, ensuring a safe working environment and protecting our machine accuracy.

5. FAQ (Frequently Asked Questions)

Q1: What are the differences between FR4 and Bakelite? Can I use Bakelite instead?
A: While both are insulative materials, FR4 is made of woven fiberglass cloth and epoxy resin, while Bakelite (phenolic resin) uses paper or wood fillers. FR4 offers significantly higher mechanical strength, lower water absorption, and better dimensional stability than Bakelite. For high-precision PCB probe guide applications, we strongly recommend FR4 to ensure long-term accuracy and prevent probe misalignment. Please note: FR4 is light green, whereas Bakelite is dark brown/black.

Q2: Can your company machine carbon fiber or PEEK parts?
A: Yes, absolutely. While we specialize in FR4/G10 composite machining, our factory is equipped to handle various difficult-to-machine materials, including Carbon Fiber, PEEK, PTFE, and POM. Please feel free to send us your drawings, and we will provide an optimal machining solution.

Q3: What are the typical tolerances you can hold on the hole positions?
A: For standard locating holes and probe guides, our standard machining tolerance is ±0.05mm. If your application requires high-precision matching, we can achieve a positional accuracy of ±0.03mm depending on the board size and structure.

Q4: Do you offer FEA (Finite Element Analysis) or design suggestions for our custom fixture plate?
A: Yes. Our engineering team can review your 3D model or PDF drawing. If we identify potential issues with probe clearance or structural stability, we will proactively offer suggestions to optimize the design for both manufacturing and functional performance.

Q5: Is this material RoHS and REACH compliant?
A: Yes. The raw FR4 sheets we use are fully compliant with RoHS and REACH environmental regulations and are free of restricted hazardous substances, making them safe for global electronic manufacturing.
