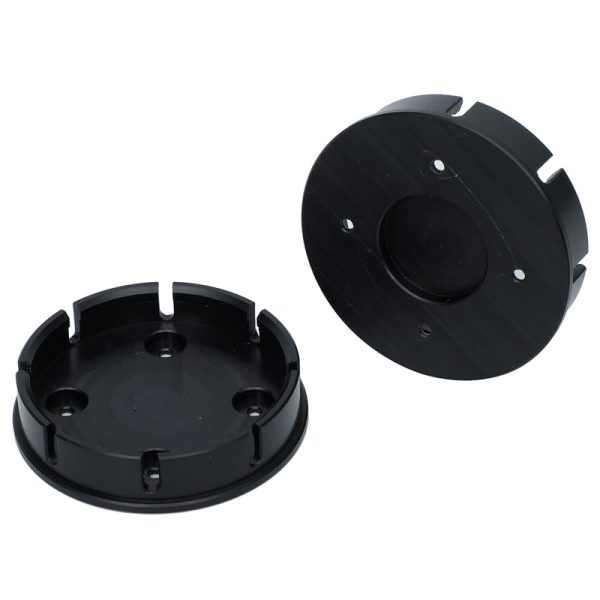

This Custom Precision Circular Cover is specifically engineered for modern Robotics and Industrial Automation systems. Milled from solid Aluminum 6061-T6 billet and finished with a durable Black Anodized coating, this circular cover features Radial Slots for precise cable routing or mating clearances. As a leading provider of CNC machining services, we deliver this housing component with strict tolerance control, ensuring seamless integration into robotic joints, sensor modules, and actuator assemblies.

2. Material Analysis

• Base Material: Aluminum 6061-T6. This alloy offers an excellent strength-to-weight ratio, superior machinability, and high corrosion resistance, making it the industry standard for precision robotics hardware.

• Surface Treatment: Type II Black Anodize. The anodized layer (approximately 0.0002″ – 0.0004″) provides excellent wear resistance and a matte, anti-reflective finish (ideal for optical/vision systems). The black coating also improves heat dissipation.

• Alternative Materials: If the application requires higher strength or insulation, we can also custom machine this cover from AISI 304 Stainless Steel, Titanium, or high-performance PEEK plastic.

3. CNC Machining Services Parameters

4. Tolerance Capabilities

At our CNC machining facility, we understand that a mismatched circular cover can cause catastrophic failure in a robotic joint. We maintain strict control over:

• Concentricity: We hold a concentricity of 0.01mm between the central boss and the outer diameter to prevent vibration during high-speed rotation.

• Flatness: The mating surface is machined to a flatness of 0.005mm to ensure uniform pressure on the sealing gasket, preventing dust or moisture ingress.

• Slot Positional Accuracy: The radial slots are machined with a true position of ±0.02mm to ensure perfect alignment with the mating wire harnesses or locking pins.

5. Manufacturing Difficulties & Solutions

• Difficulty 1: Distortion during Anodizing.

  • Problem: Thin-walled circular covers are prone to warping when subjected to the high heat and chemical baths of the black anodizing process.

  • Solution: We use a stress-relieving heat treatment on the aluminum billet before machining, and utilize custom-designed anodizing fixtures that hold the part flat during the chemical process, ensuring flatness is maintained after coating.

• Difficulty 2: Burr removal inside the Radial Slots.

  • Problem: The intersecting edges of the radial slots and the outer wall can leave microscopic burrs, which can cut cables or wear out over time.

  • Solution: We apply a specialized vibratory deburring process, followed by manual edge-breaking on critical slot edges to guarantee a smooth, safe finish for cables.

• Difficulty 3: Concentricity between the Mounting Holes and the Outer Ring.

  • Problem: Multiple setups often lead to positional drift.

  • Solution: The part is machined in a single 4-axis clamping setup, ensuring that the mounting holes, center step, and outer diameter all maintain perfect coaxiality.

6. Application Scenarios

This circular cover is an essential component for:

• Robotics: Rear end caps for servo motors, protective covers for robotic joint encoders, and modular structural covers on robotic arms.

• Industrial Automation: End covers for linear actuators, protective housing bases for rotary indexers, and covers for high-precision sensor arrays.

• Motion Control: Terminal covers for gearboxes and seals for optical rotary encoders.

• Automotive Testing: Precision covers for load cells and force torque sensors on test benches.

7. FAQ

Q1: Can you customize the number and width of the radial slots?
A: Absolutely. The width, depth, and number of radial slots are completely customizable based on your 2D/3D drawings. We can even machine asymmetric slot patterns for specific cable management needs.

Q2: How does the black anodized finish affect the critical dimensions?
A: Anodizing grows an oxide layer that adds approximately 0.002 – 0.004mm to the surface. For critical tolerance fits (like the inner bore), we will provide a “pre-anodizing allowance” or mask the threads/bored areas to ensure the final dimensions match your engineering specifications perfectly.

Q3: Can you manufacture this part from plastic or other metals?
A: Yes. While aluminum is standard, we frequently machine this cover from PEEK, Nylon, 304/316 Stainless Steel, and brass. The manufacturing process and surface finish will be adjusted to suit the selected material.

Q4: What is your minimum order quantity?
A: Our MOQ is 1 piece. We are highly experienced in providing rapid prototyping and bridge production for R&D teams, as well as bulk manufacturing for mass assembly.

Q5: How do you ensure the quality of the radial slots doesn’t cause cable damage?
A: We specifically control the edge quality of the slots. After machining, we perform secondary deburring and hand-polish the slot edges to ensure they are smooth and rounded, minimizing the risk of friction or cutting on passing wires.
