Custom Aluminum CNC Machined Motor Mount Housing Spindle Support Bracket for Automation Equipment
Description

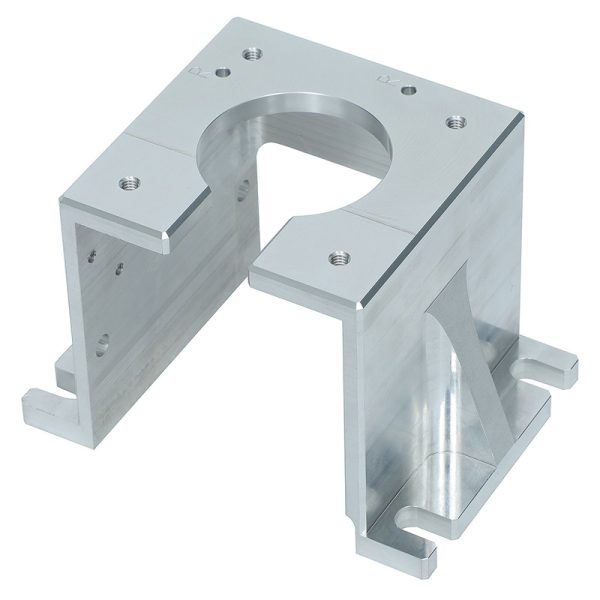

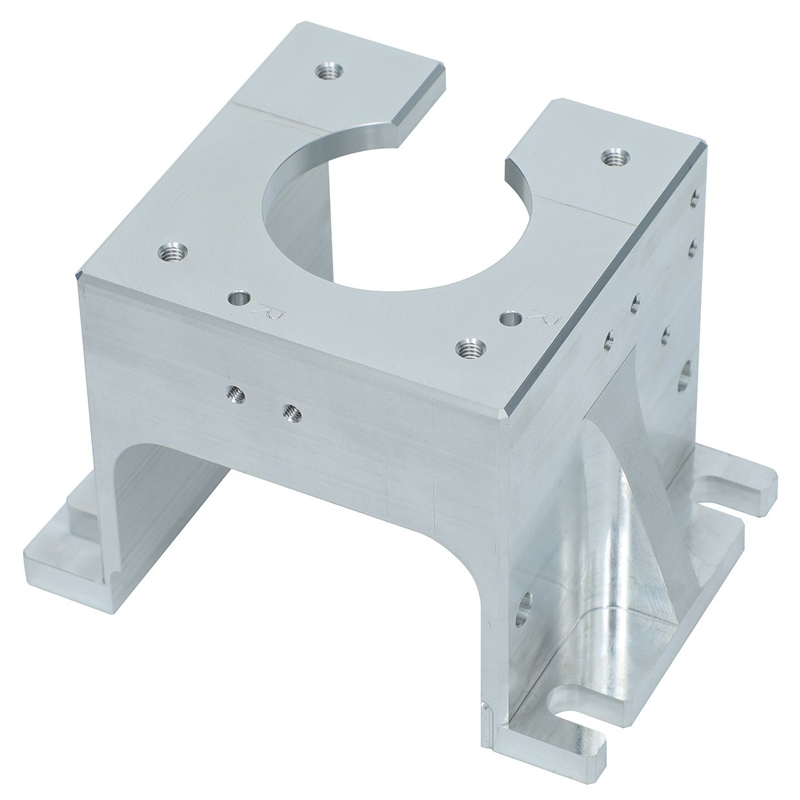

This CNC machined motor mount housing / spindle support bracket is a high-precision structural component designed for rigid and stable mounting of motors, spindles, or rotating shafts in industrial automation systems.
Manufactured from high-quality aluminum (such as 6061-T6 or 7075-T6), the part is fully processed by advanced CNC milling to ensure excellent dimensional accuracy, surface finish, and structural integrity. The integrated split clamp (C-type opening) design allows for easy installation and secure clamping of cylindrical components such as motor housings or spindle bodies, eliminating the need for complex assembly procedures.
The component features multiple precision-machined threaded holes and mounting interfaces on different surfaces, enabling flexible integration with linear modules, machine frames, and motion systems. Reinforced rib structures enhance stiffness and effectively reduce vibration during high-speed operation, ensuring long-term stability and performance.
| Parameter | Specification |
|---|---|
| Part Name | CNC Machined Motor Mount Housing / Spindle Support Bracket |
| Process | CNC Milling (3-axis / 4-axis / 5-axis) |
| Material Options | Aluminum 6061-T6 / 7075-T6 / Stainless Steel 304 / Mild Steel |
| Surface Treatment | Anodizing (Clear / Black / Custom Colors) / Sandblasting / Powder Coating / Plating |
| Tolerance | ±0.01 mm (Critical Features ±0.005 mm achievable) |
| Surface Roughness | Ra 0.8 – 3.2 μm |
| Max Part Size | Up to 500 mm (customizable) |
| Min Feature Size | ≥ 0.5 mm |
| Hole Type | Threaded Holes / Through Holes / Counterbore / Countersink |
| Thread Standard | Metric (M3–M12) / UNC / UNF |
| Structure Type | Split Clamp Design (C-Type Opening) |
| Clamping Diameter | Custom (Typical: Ø52 / 65 / 80 / 100 mm) |
| Flatness | ≤ 0.02 mm |
| Perpendicularity | ≤ 0.02 mm |
| Application | Motor Mounting / Spindle Support / Automation Equipment |
| Industry | Industrial Automation / CNC Machinery / Robotics / Motion Control |
| Drawing Format | STEP / STP / IGES / X_T / DWG / PDF |
| Production Volume | Prototype / Small Batch / Mass Production |
| Lead Time | 3–7 days (Prototype), 10–20 days (Mass Production) |
| Quality Control | 100% Inspection / CMM Available |
| Certification | ISO 9001 / RoHS (if required) |
| Packaging | Foam + Carton / Custom Export Packaging |
