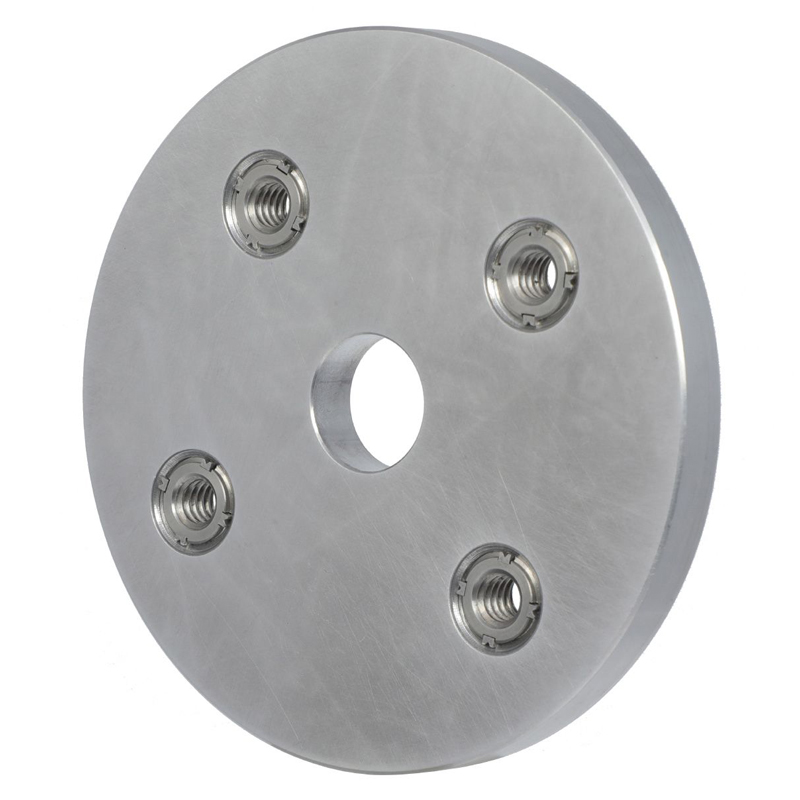

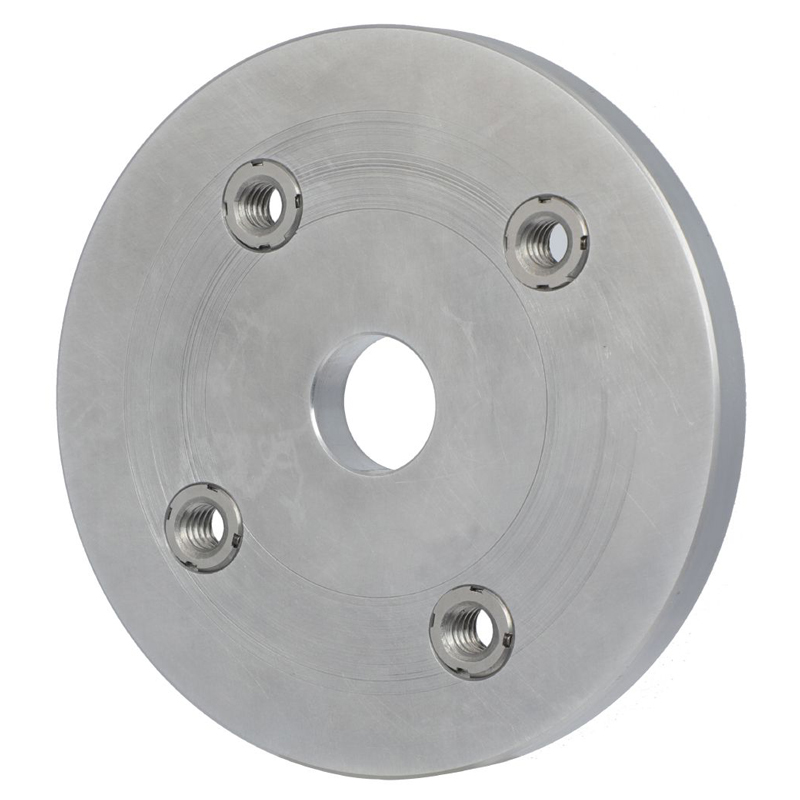

CNC Machined Aluminum Mounting Flange Parts for Mechanical Assembly
Description
| Category | Item | Specification | Notes |
|---|---|---|---|
| Basic Info | Product Name | CNC Machined Mounting Flange Parts | Functional connection component |
| Process | CNC Turning + Drilling + Tapping | Typical lathe + secondary ops | |
| Material | Material Options | Aluminum 6061 / 6082 / 7075 | 6061 most common |
| Alternative Materials | Stainless Steel 304 / 316 | Optional based on application | |
| Dimensions | Outer Diameter | Custom (e.g. 50–200 mm) | Per drawing |
| Thickness | Custom (e.g. 5–30 mm) | Per design requirement | |
| Center Hole | Through Hole / Precision Bore | For shaft or positioning | |
| Hole Features | Mounting Holes | 4x Threaded Holes (Custom PCD) | Evenly distributed |
| Thread Type | Metric (M) / UNC / UNF | As required | |
| Thread Inserts | Helicoil Available | Recommended for aluminum | |
| Tolerance | General Tolerance | ±0.01 ~ ±0.05 mm | Standard CNC |
| Flatness | ≤0.02 mm | Critical mounting surface | |
| Concentricity | ≤0.02 mm | Center hole vs OD | |
| Surface Finish | As Machined | Ra 1.6 ~ 3.2 μm | Standard turning finish |
| Optional Finish | Sandblasting / Anodizing / Polishing | Improves appearance & corrosion resistance | |
| Mechanical Properties | Weight | Lightweight (Aluminum) | Suitable for automation |
| Strength | Good strength-to-weight ratio | Depends on alloy | |
| Application | Typical Use | Equipment Mounting / Shaft Connection | Functional interface part |
| Industries | Automation / Machinery / Robotics | Widely used | |
| Customization | OEM/ODM | Supported | Based on drawings or samples |
| MOQ | Low Volume Supported | Prototype to mass production |
