Custom CNC Machined Mounting Base Plate for Industrial Automation
Description

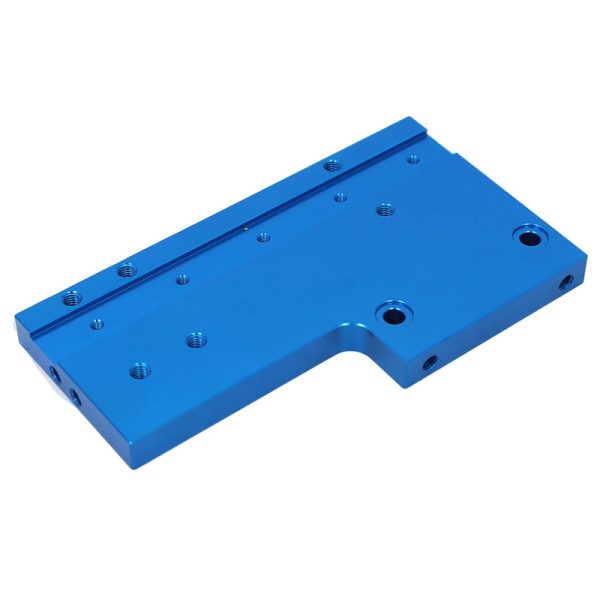

The CNC Machined Adapter Plate is a custom precision component designed for industrial automation, semiconductor equipment, and precision machinery applications. Manufactured using advanced CNC milling processes, this adapter plate provides reliable structural support and accurate interface alignment between mechanical modules and equipment assemblies.
Produced from high-quality aluminum alloys such as 6061-T6, 7075, or MIC-6 tooling plate, the part offers excellent dimensional stability, strength, and machinability. Complex hole patterns, threaded features, steps, and custom profiles are precisely machined to meet customer-specific drawings and functional requirements.
The plate is finished with blue anodizing to enhance corrosion resistance, improve wear performance, and allow easy part identification in automated systems. Strict tolerance control and flatness management ensure consistent assembly accuracy, making the component suitable for precision mounting, positioning, and fixture applications.
This CNC machined adapter plate is ideal for prototyping, small to medium batch production, and custom equipment integration where accuracy, reliability, and flexibility are critical.
| Parameter Category | Specification | CNC Machining Notes |
|---|---|---|
| Part Name | CNC Machined Adapter Plate | Custom precision plate for equipment mounting and interface adaptation |
| Industry Application | Industrial Automation / Semiconductor Equipment | Used in automation modules, fixtures, and precision machinery |
| Material Options | Aluminum 6061-T6 / 7075 / MIC-6 | Excellent machinability and dimensional stability |
| Manufacturing Process | CNC Milling (3-axis / 4-axis) | Precision milling for profiles, steps, and complex hole patterns |
| Overall Dimensions | Custom per drawing | Fully customized based on customer design requirements |
| Tolerance | ±0.01 mm (standard) | Tighter tolerances available upon request |
| Hole Features | Threaded holes, counterbore holes, locating holes | CNC drilling, tapping, and counterboring operations |
| Surface Finish | Anodized Blue | Improves corrosion resistance and part identification |
| Surface Roughness | Ra 1.6 – 3.2 μm | Achieved through fine finishing passes |
| Flatness | ≤ 0.05 mm | Suitable for precision mounting and alignment |
| Edge Treatment | Chamfered / Deburred | Ensures safe handling and accurate assembly |
| Production Volume | Prototype to low/medium volume | Ideal for prototyping and small batch production |
| Quality Inspection | CMM / Caliper / Thread Gauge | Dimensional and functional inspection before delivery |
