Stainless Steel: Definition, Characteristics, Grades, Machinability, and Applications
Alloy steels containing more than 12% chromium or over 8% nickel are generally classified as stainless steel. This type of steel offers consistent corrosion resistance in air or corrosive media, along with high strength at elevated temperatures (>450°C).
Key Characteristics
Stainless steel exhibits exceptional properties across a wide temperature range, including corrosion resistance, scale resistance, acid resistance, impact resistance, and toughness. Tailored grades and surface finishes are available to suit specific environmental conditions, making these components ideal for diverse applications.
A critical feature is the invisible, adherent chromium oxide passive film formed on the steel surface due to its chromium content. This film self-heals when mechanically or chemically damaged (provided oxygen is present). Additionally, its 100% recyclability positions stainless steel as an environmentally sustainable material. Consequently, it is widely used in heavy industry, light industry, consumer goods, and architectural decoration sectors.
Stainless Steel Classifications
Stainless steel is typically categorized into five groups, defined by alloying elements that influence their microstructure:
1. Austenitic Stainless Steel
The most commonly used type, austenitic stainless steel is non-magnetic. The predominant alloys are iron-chromium-nickel steels (known as the 300 series), containing 18–30% chromium and 6–20% nickel. Thanks to their high chromium and nickel content, these grades offer the best corrosion resistance among stainless steels.
They maintain mechanical strength at high temperatures, are easy to maintain, and exhibit excellent formability. While cold-workable, they cannot be hardened by heat treatment.
Common Applications:
Shafts, valves, bolts, bushings, nuts, aircraft components, brewing equipment, and cryogenic vessels.
Subgrades:
- Low-Carbon (L-Grade): Designed to enhance post-weld corrosion resistance. The “L” suffix indicates carbon content ≤0.03% (e.g., 304L), preventing carbide precipitation during welding. Dual-certified grades (e.g., 304/304L, 316/316L) are widely available.
- High-Carbon (H-Grade): Carbon content ranges from 0.04% to 0.10%, maintaining strength in extreme temperatures. The “H” suffix denotes this grade (e.g., 304H), suitable for high-temperature applications.
Popular Grades:
- 304 (18/8 Stainless Steel): The most versatile austenitic grade, with 18% chromium, 8% nickel, and ≤0.07% carbon (also called A2 stainless steel). Offers excellent corrosion resistance, machinability, and formability post-CNC machining. Ideal for chemical (mild chemicals), food/dairy, and beverage processing equipment.
- 309: Higher chromium and nickel content (vs. 304) provides superior corrosion and scale resistance at temperatures up to 1900°F (1038°C). Cold-workable, weldable, and easy to machine. Used in furnace parts, thermocouple protection tubes, boiler tube hangers, and refinery components.
- 316: The second most widely used grade, containing 16–18% chromium, 11–14% nickel, and ≥2% molybdenum (enhances pitting corrosion resistance). Withstands temperatures up to 1600°F (871°C) and excels in chloride-rich environments. Applications include chemical processing, pulp/paper, food/beverage, surgical instruments, marine equipment, and nuclear fuel reprocessing.
- 317: Molybdenum content (>3%, higher than 316) delivers enhanced corrosion resistance in aggressive environments. Weldable, machinable, and suitable for cold/hot working (non-heat-treatable). Used in air pollution control scrubbers, heat exchangers, pressure vessels, and chimney components. 317L (≤0.03% carbon) includes up to 0.75% silicon for improved corrosion resistance.
- 321: Titanium content (≥5x carbon content) minimizes chromium carbide precipitation during welding or high-temperature exposure. Resists creep, rupture, and vibration fatigue at temperatures up to 1500°F (816°C). Applications: aircraft exhaust systems, jet engine parts, boiler shells, and heaters.
- 348: Niobium-tantalum additions prevent chromium carbide precipitation during welding. Offers excellent corrosion resistance after exposure to 800–1500°F (427–816°C).
2. Martensitic Stainless Steel
A group of corrosion-resistant, heat-treatable alloys. Martensitic grades are chromium-only (nickel-free), magnetic, and less corrosion-resistant than austenitic stainless steel. They excel in hardness, strength, and wear resistance, making them suitable for applications requiring these properties.
Common Applications:
Pump shafts, bolts, screws, valves, bushings, rivets, coal hoppers, cutlery, jet engine parts, aircraft components, mining equipment, rifle barrels, and fire extinguisher inserts.
Popular Grades:
- 410: The base martensitic grade with the lowest alloy content among the three basic stainless steels (304, 430, 410). Cost-effective, versatile, and heat-treatable, containing ≥11.5% chromium for resistance to air, water, mild chemicals, and food acids. Used in fasteners and components requiring combined strength and corrosion resistance. 410S (lower carbon) is more weldable but less hardenable.
- 414: Nickel addition (2%) improves corrosion resistance. Applications: bolts/nuts, pressure plates, valve components, surgical instruments, and refinery equipment.
- 416: A free-machining variant of 410, enhanced with phosphorus and sulfur. Heat-treatable and ideal for threaded mechanical parts.
- 420: Increased carbon content improves mechanical properties. Heat-treatable to ~500 HB, with maximum corrosion resistance when fully hardened. Used in precision machinery, bearings, electrical appliances, gauges, and parts resistant to air, steam, water, and oxidizing acids.
- 431: Nickel (1.25–2%) and higher chromium content deliver superior corrosion resistance and mechanical properties (vs. 410/430). The most corrosion-resistant hardenable martensitic grade, workable via hot/cold processing and hardenable to 40 HRC. Applications: valves, pumps, aircraft parts, propeller shafts, and marine equipment.
- 440: Available in four variants (440A, 440B, 440C, 440F). Increased chromium and carbon content enhances toughness and corrosion resistance. 440C reaches up to 58 HRC, making it one of the hardest stainless steels. Applications: surgical scalpel blades, scissors, nozzles, and bearings. 440F is free-machining.
3. Ferritic Stainless Steel
Like martensitic grades, ferritic stainless steel is chromium-only (nickel-free), magnetic, and non-heat-treatable (hardenable via cold working, softenable via annealing). It offers better corrosion resistance than martensitic steel but generally less than austenitic steel.
Common Applications:
Decorative trim, sinks, and automotive exhaust systems.
Popular Grades:
- 405: 12% chromium + aluminum additions prevent hardening after high-temperature cooling. Ideal for welding, with advanced formability and machinability. Used in heat exchangers, turbine components, and hardened parts.
- 409: The lowest chromium content (11%) among stainless steels, resulting in minimal passive film formation. One of the most cost-effective grades, suitable for internal/external parts in mild corrosion environments (e.g., mufflers). Offers better corrosion/oxidation resistance than carbon steel.
- 430: A general-purpose grade with excellent corrosion resistance, superior thermal conductivity, and lower thermal expansion than austenitic steel. Titanium-stabilized for enhanced weld mechanical properties. Applications: architectural decoration, fuel burner parts, and appliance components. Variants: 430F (free-machining, for automatic lathes, bolts/nuts) and 430LX (Ti/Nb-stabilized, low carbon, for water heaters, plumbing systems, and bicycle flywheels).
- 434: 12–30% chromium + molybdenum for improved corrosion resistance (especially salt resistance vs. 430). Used in automotive trim and fasteners.
- 436: Niobium-stabilized variant of 434, offering enhanced corrosion and heat resistance. Suitable for deep-drawn parts, gas burners, dishwashers, and cookware.
- 442: High chromium content delivers excellent heat and scale resistance but is difficult to machine (non-heat-treatable). Applications: furnace components, zinc die-casting machines, and nitric acid storage tanks.
- 446: 27% chromium provides superior high-temperature corrosion and oxidation resistance, with no scale spallation below 1082°C (1980°F). Used in combustion chambers.
4. Precipitation Hardening (PH) Stainless Steel
Heat-treatable for enhanced strength and hardness, with superior mechanical properties and corrosion resistance compared to martensitic chromium stainless steel. Stronger than austenitic steel and retains strength at elevated temperatures. Known as “PH grades,” they feature high chromium content and are used in military and aerospace structural components.
Popular Grades:
- 17-7PH: Solution-treated to form unstable austenite (excellent ductility and machinability). Age hardening transforms most structure to tough low-carbon tempered martensite, offering better corrosion resistance than standard martensitic steel.
- PH15-7Mo: 2% molybdenum replaces 2% chromium in 17-7PH, delivering similar base properties with improved overall performance. Cold-formable and weldable in austenitic state; heat-treatable for maximum strength. Excels at high temperatures up to 550°C. Applications: aircraft thin-walled structures, vessels, pipes, springs, and reactor components.
- 17-4PH: A chromium-copper precipitation-hardening grade with excellent oxidation and corrosion resistance. Heat-treatable to optimize strength, ductility, and oxidation resistance. Not suitable for temperatures above 300°C or extreme cold.
- 15-5PH: A variant of 17-4PH with higher toughness, ideal for applications requiring superior corrosion resistance and transverse properties.
5. Duplex (Ferritic-Austenitic) Stainless Steel
A modern category combining austenitic and ferritic microstructures, renowned for exceptional strength (twice that of austenitic/ferritic grades) and resistance to stress corrosion cracking (SCC). Offers better toughness and ductility than ferritic steel but not as much as austenitic steel. Easy to heat-treat but difficult to cold-form.
Common Applications:
Chemical processing equipment, pressure vessels, and heat exchanger components.
Classification by Alloy Content:
- Low-Alloy: e.g., UNS S32304 (23Cr-4Ni-0.1N), PREN 24–25. Replaces 304/316 in stress corrosion-prone environments (no molybdenum).
- Medium-Alloy: e.g., UNS S31803 (22Cr-5Ni-3Mo-0.15N), PREN 32–33. Corrosion resistance between 316L and 6% Mo+N austenitic steel.
- High-Alloy: e.g., UNS S32550 (25Cr-6Ni-3Mo-2Cu-0.2N), PREN 38–39. Superior corrosion resistance vs. 22% Cr duplex grades.
- Super Duplex: e.g., UNS S32750 (25Cr-7Ni-3.7Mo-0.3N), with tungsten/copper additions. PREN >40, offering corrosion resistance and mechanical properties comparable to super austenitic stainless steel for harsh environments.
Machinability Characteristics
Based on long-term CNC machining practice, stainless steel exhibits the following key machining traits:
Severe Work Hardening:
High ductility leads to significant plastic deformation and work hardening (high strengthening coefficient). Unstable austenite transforms to martensite under cutting stress, and combined with cutting heat, this forms a hardened layer. Work hardening from previous passes severely impacts subsequent machining.
High Cutting Forces:
Large plastic deformation during cutting results in high resistance. Enhanced work hardening and thermal strength further increase cutting forces, making chip curling and breaking difficult.
Elevated Cutting Temperatures:
Intense plastic deformation and tool-chip friction generate substantial heat, concentrated in the cutting zone (poor heat dissipation).
Continuous Chip Formation:
Excellent ductility and toughness produce long, continuous chips, disrupting operations and damaging machined surfaces. High affinity between stainless steel and other metals at elevated temperatures causes adhesion and built-up edge (BUE), accelerating tool wear and surface tearing.
Rapid Tool Wear:
Adhesion and diffusion between the tool and workpiece cause bonding and diffusion wear, forming crater wear on the tool rake face. Hard carbides (e.g., TiC) in stainless steel abrade the tool, exacerbated by work hardening.
High Thermal Expansion:
Coefficient of thermal expansion is ~1.5x that of carbon steel. Thermal deformation during machining makes dimensional accuracy control challenging.
To ensure machining quality and efficiency, specialized tools, cutting parameters, and cooling strategies are required to address these traits.

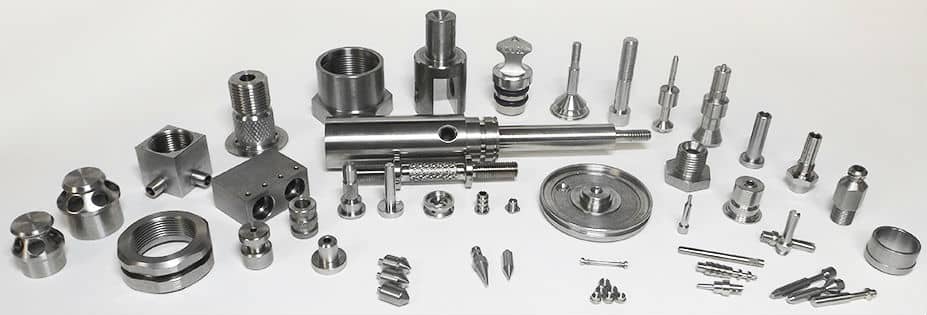

Advantages of Stainless Steel Machined Parts
- Superior Corrosion Resistance: The thin, dense chromium oxide passive film ensures durability even in buried applications and all water types (including soft water).
- Temperature Stability: Safe for long-term use at -270°C to 400°C, with no harmful substance leaching and consistent material properties.
- Hygienic Safety: Non-toxic, non-corrosive, and odorless, preventing secondary water contamination—ideal for hygiene-critical applications.
- Mechanical Strength & Durability: Resists corrosion, deformation, and fracture; offers excellent ductility and toughness. Suitable for harsh environments (humid, acidic/alkaline indoor/outdoor conditions).
- Environmental Sustainability: 100% recyclable, aligning with green manufacturing trends.
Applications
1. Medical Industry
Stainless steel is widely used in needles, scalpels, wheelchairs, IV stands, forceps, and orthopedic implants. Its balanced performance, mature manufacturing processes, and cost-effectiveness drive growing adoption in medical devices.
2. Electronics & Household Appliances
Common applications include water heater tanks, coffee machine heating elements, kitchen utensils, and electrical components—leveraging its corrosion resistance and hygiene.
3. Automotive Industry
The fastest-growing application sector for stainless steel. Key uses include body structures, exhaust systems, fuel tanks, frames, fasteners, and decorative trim. High demand from the automotive industry fuels stainless steel market growth.
4. Other Industries
- Food Processing: Equipment for food production, storage, and transportation (hygiene and corrosion resistance).
- Chemical & Petrochemical: Vessels, pipes, and valves for corrosive media handling.
- Aerospace: Exhaust systems, structural components, and fasteners (strength and temperature resistance).
- Heavy Industry & Construction: Architectural decoration, marine equipment, and industrial machinery parts.
