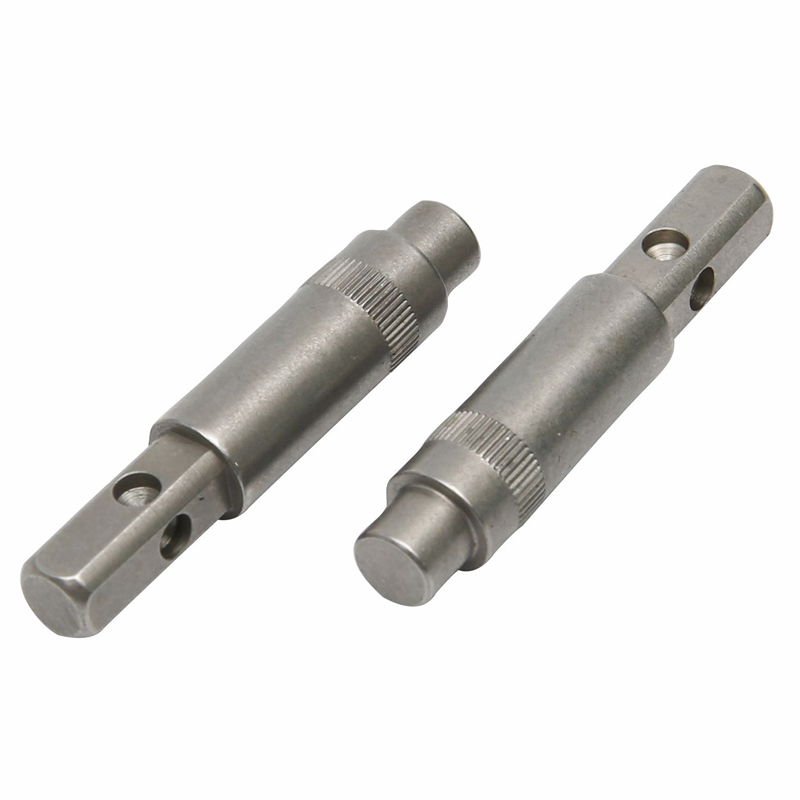

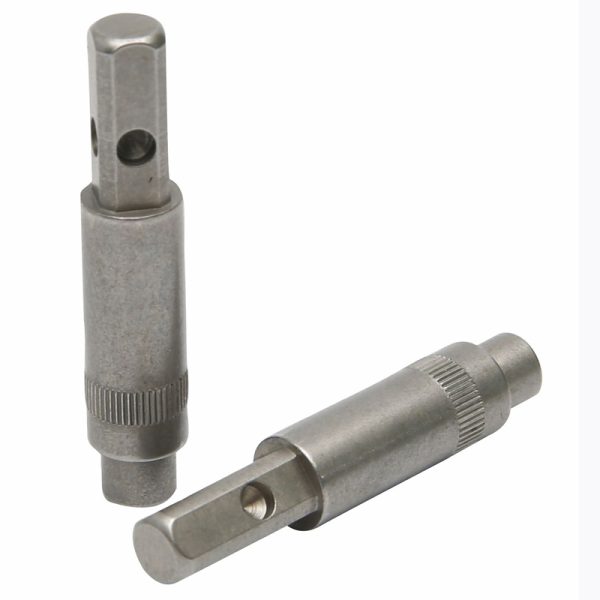

CNC Machined Quick Change Drive Shaft with Knurling & Cross Hole for Fixture Tooling (Stainless Steel)
Description
This product is a CNC machined drive shaft specially designed for industrial automation and fixture tooling fields, serving as a core connecting and transmission component in quick-change fixture systems. It integrates multiple precision machining processes, including CNC turning, CNC milling and optional knurling, which can be completed by ordinary CNC lathes without the need for Swiss-type lathes, effectively controlling production costs while ensuring processing efficiency. The product adopts a stepped shaft structure with a square end and cross hole, which realizes precise torque transmission and quick locking functions, and the optional knurled surface (or alternative anti-slip treatment) facilitates manual operation and adjustment. Made of high-quality carbon steel or stainless steel, it has excellent wear resistance and structural strength, and can be customized in size, material, surface treatment and other aspects according to customer drawing requirements, widely applicable to automation equipment, fixture positioning, torque transmission and other scenarios, perfectly matching the diversified needs of CNC machining services.
|
Parameter Category
|
Parameter Details
|
Standard Value (Customizable)
|
Remarks (Related to CNC Machining Services)
|
|---|---|---|---|
|
CNC Machining Process
|
Main Machining Process
|
CNC Turning + CNC Milling + Knurling (Optional)
|
Completed by CNC lathe (no Swiss-type lathe required), high processing efficiency
|
|
Knurling Process (Optional)
|
Straight Knurling / Diamond Knurling
|
Replaceable with textured surface, sandblasting if knurling is not needed
|
|
|
Drilling Process
|
CNC Drilling (Cross Hole)
|
Through hole, high precision, no burrs, matching pin locking function
|
|
|
Milling Process
|
Square End Milling + Step Positioning Milling
|
Square end for torque transmission, step for precise positioning
|
|
|
Dimensional Parameters
|
Shaft Diameter (Main Section)
|
φ8mm – φ20mm
|
Customizable according to fixture matching requirements
|
|
Total Length
|
50mm – 150mm
|
Step length can be adjusted according to assembly needs
|
|
|
Cross Hole Diameter
|
φ2mm – φ5mm
|
Consistent with the matching pin size, high coaxiality
|
|
|
Precision Parameters
|
Dimensional Tolerance
|
±0.01mm – ±0.03mm
|
Meet the precision requirements of fixture positioning and torque transmission
|
|
Surface Roughness
|
Ra 0.8 – Ra 1.6
|
No obvious burrs, smooth surface, suitable for manual grip
|
|
|
Material Parameters
|
Main Material
|
Carbon Steel (1045) / Stainless Steel (303/304)
|
Stainless steel is corrosion-resistant, suitable for harsh working environments
|
|
Material Hardness
|
HRC 20 – HRC 30 (Optional Heat Treatment)
|
Heat treatment can be added to enhance wear resistance
|
|
|
Surface Treatment
|
Standard Treatment
|
No Plating (Industrial Finish)
|
Cost-effective, suitable for internal fixture use
|
|
Optional Treatment
|
Zinc Plating / Nickel Plating / Black Oxide
|
Enhance corrosion resistance, customizable according to customer needs
|
|
|
Application & Others
|
Application Field
|
Industrial Automation / Fixture Tooling / Drive Connection
|
Suitable for quick-change fixtures, torque transmission components
|
|
MOQ (Minimum Order Quantity)
|
100 Pcs (Negotiable for Custom Orders)
|
Support small-batch customization, adapt to CNC machining service needs
|
